Description
EXFO FTB-4 Pro is the latest addition to EXFO’s modular test portfolio. It supports a wide range of modules and test scenarios, from lab applications to field testing, across all phases of the service delivery chain: development, deployment, maintenance, and troubleshooting.
The big brother to the FTB-2 Pro, the FTB-4 Pro is a portable platform with four slots, compared to the FTB-2 Pro’s two. The extra slots enable combinations of modules that were previously impossible.

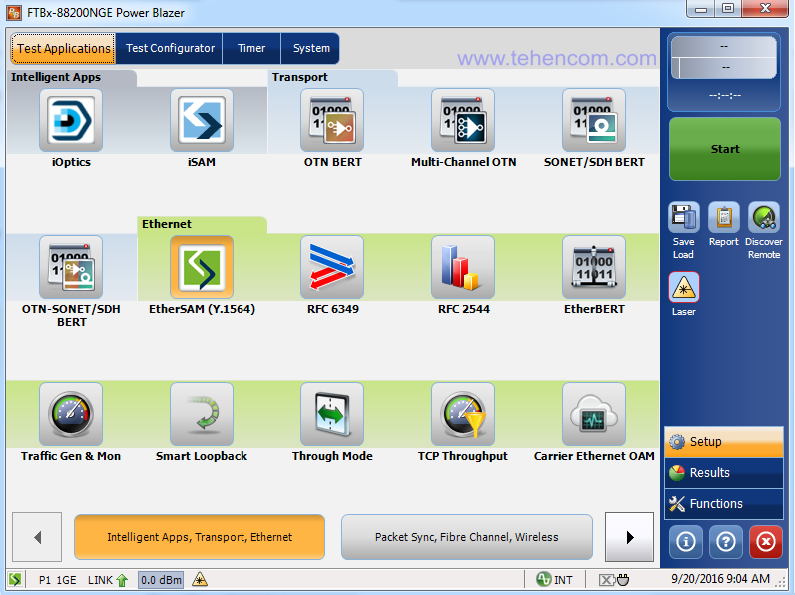

With these additional slots, the FTB-4 Pro can accommodate a unique combination of modules that provide comprehensive 100G testing from commissioning through turn-up to troubleshooting. This includes the FTBx-88200NGE 100G multiservice tester (with iOptics transceiver validation software) and the FTB-5240S-P optical spectrum analyser. There is no need to carry additional platforms or swap modules in order to provide transport and spectral testing on a single platform. EXFO believes that no other company in the industry can offer this capability.
FTB-4 Pro is a universal testing platform for FTB and FTBx series modules, enabling various measurements of telecommunication networks.
Key features
- Connects anywhere: USB, mobile, Wi-Fi, VPN and Bluetooth
- Loaded with utilities: equipped withh all the tools needed to optimize field testing, plus any thrid party applications
- Like a PC: available with quad-core processor and Windows operating system
- EXFO Connect-ready: automated asset management, data goes through thу cloud and into a dynamic database
Nowadays, as networks undergo major transformations and grow more complex, technicians need the right solutions to do the job right the first time. They need OSAs, Ethernet multiservice modules and OTDRs with fiber inspection probes. What’s also a key element for field teams today is the ability to drill down effortlessly and run all tests quickly and accurately, cutting costs and saving time. This sought-after versatility and efficiency is exactly what the FTB-4 Pro brings to the table. The FTB-4 Pro delivers all the power of a high-end platform in a go-where-you-need field-testing tool.
- 100G and 400G testing applications
- ROADM and PTN turn-up testing
- Gigabit/10 Gigabit Ethernet configurations
- ROADM commissioning
- Multiservice testing
- 10M-to-100G Ethernet testing
- Fibre Channel
- Fiber characterization and troubleshooting
- FTTH testing
- Pol-Mux spectral testing
- Connect anywhere: USB, WiFi, Bluetooth®, mobile and virtual private network (VPN)
- 10.1″ Full Colour High-Precision Touch Screen
- Loaded with utilities: equipped with all the tools required to maximize field testing
- Like a PC: quad-core processor with Windows 10 operating system
- EXFO Connect-compatible: automated asset management; data goes through the cloud and into a dynamic database

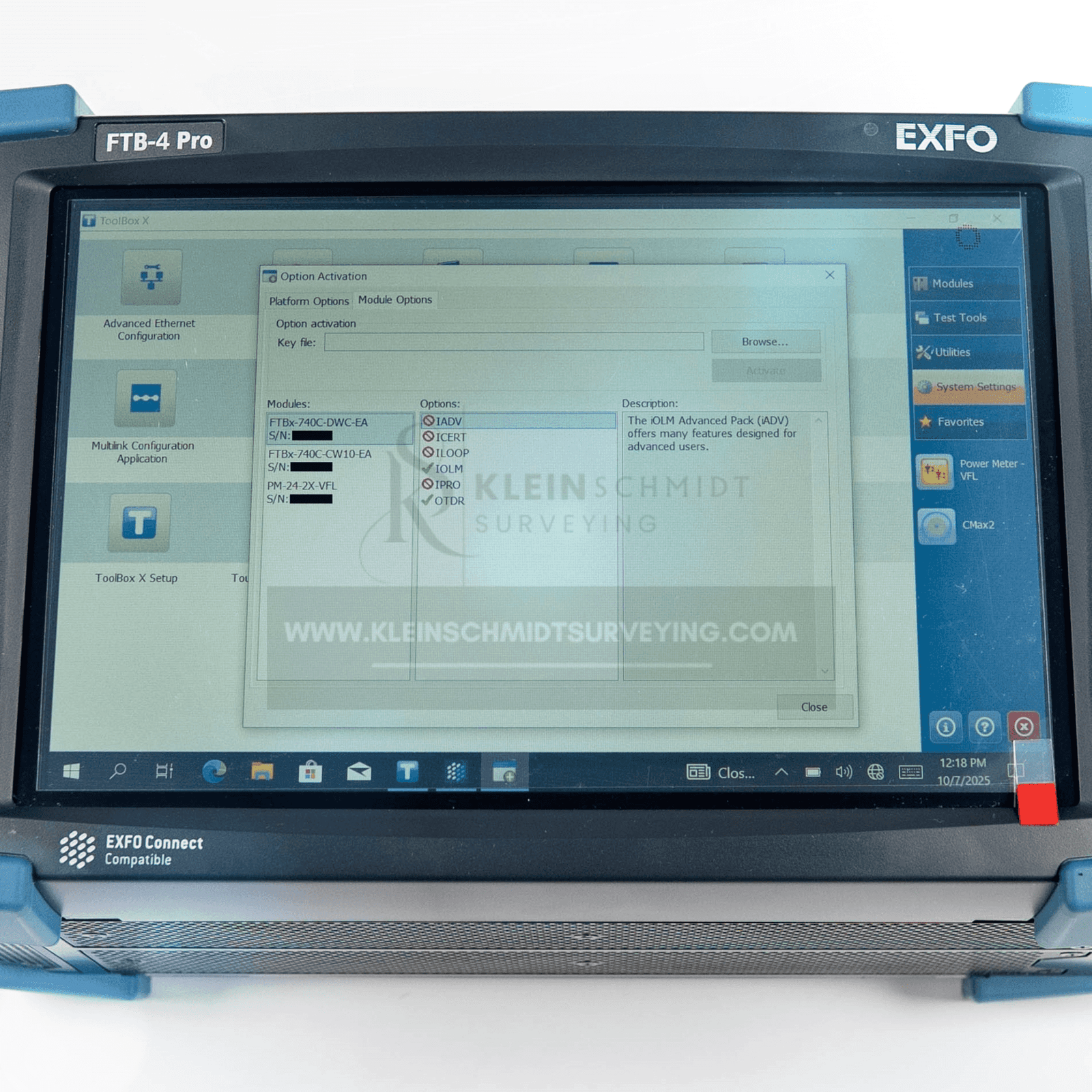

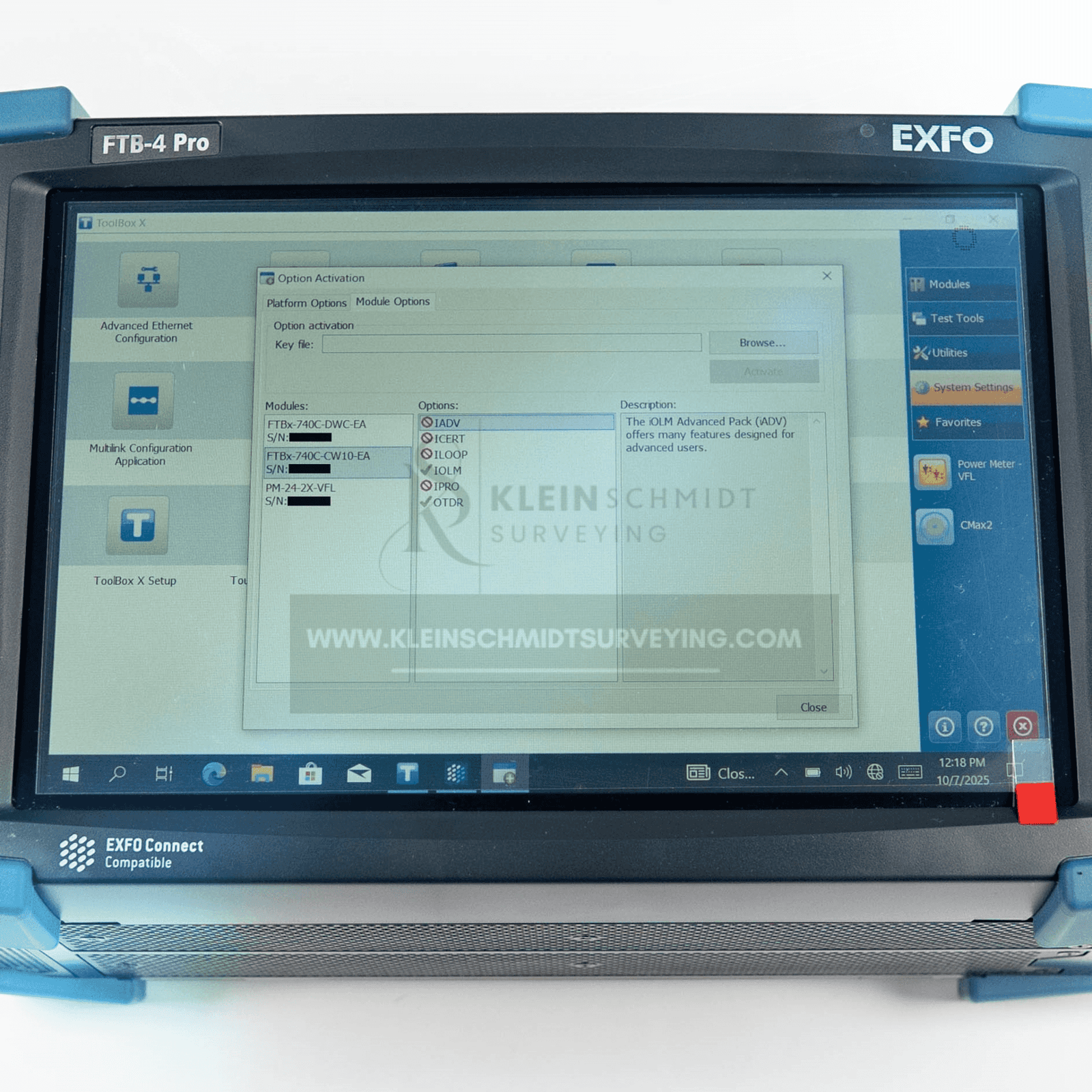

Options:

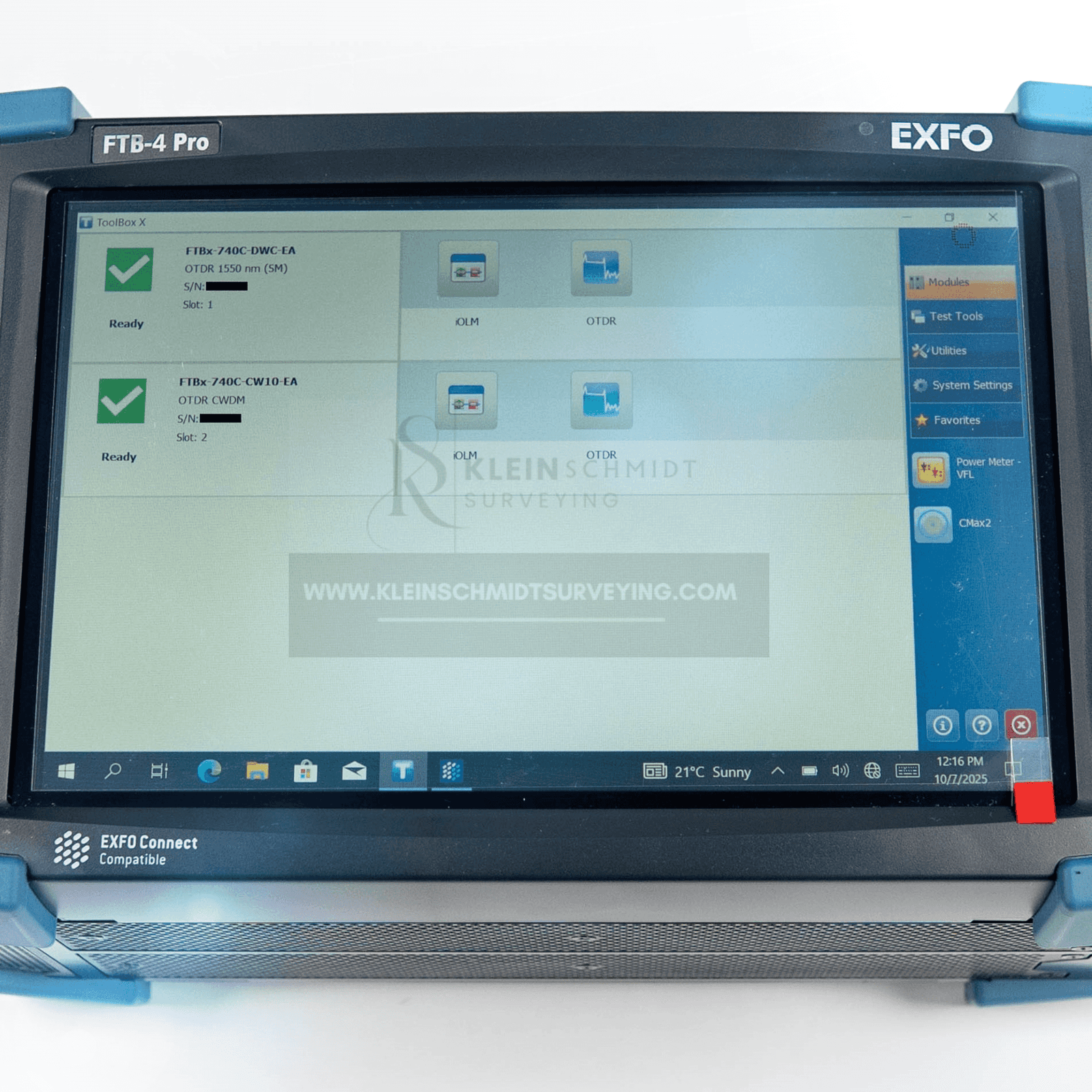

- IOLM
- OTDR
Applications
- FTTH testing
- Fiber characterization
- Fibre Channel
- Gigabit/10 Gigabit Ethernet configurations
- Multiservice testing
- Pol-Mux spectral testing
- ROADM commissioning
Technical parameters
| Number of slots | 4 |
| Mainframe | Quad-core processor, 4 GB RAM, Windows 10 |
| Display | TFT, touchscreen, color, 1280х800, 10,1″ |

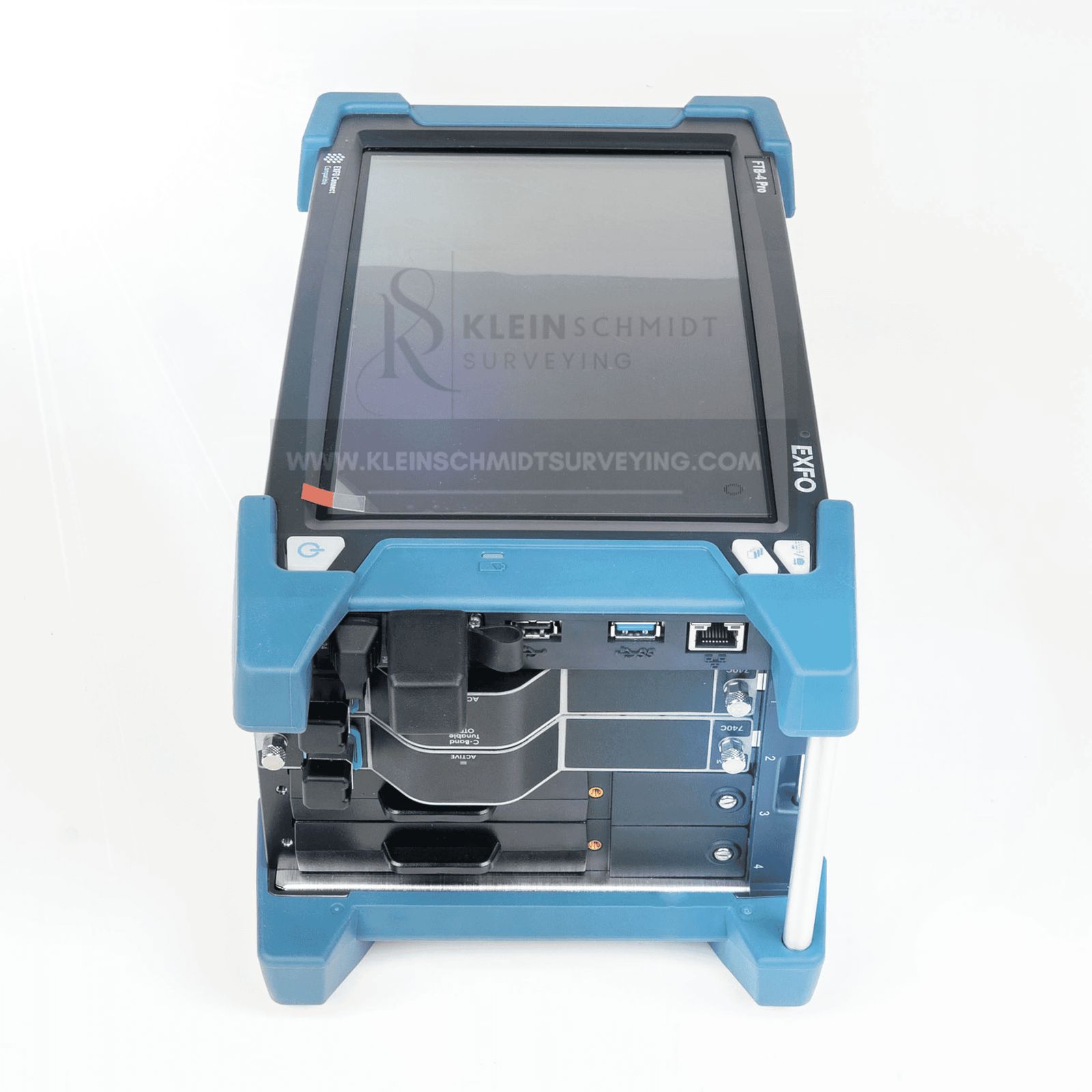

| Interfaces | USB 2.0 (2 pcs), USB 3.0 (1 pc), LAN RJ-45 10/100/1000 Mbit/s, display, headset |
| Storage, GB | 128 |
| Battery | Li-Ion (2 pcs) |
| Power supply | 100-240 V, 50-60 Hz, 5,2 – 1,9 А АС input |
| Dimensions, mm | 199 х 333 х 170 |
| Weight, kg | 4,6 |
| Operating temperature, ºС | 0 to +40 |
| Storage temperature, ºС | -40 to +60 |
| Power meter | Optional |
| VFL | Optional |
| Video inspection probe | Optional |

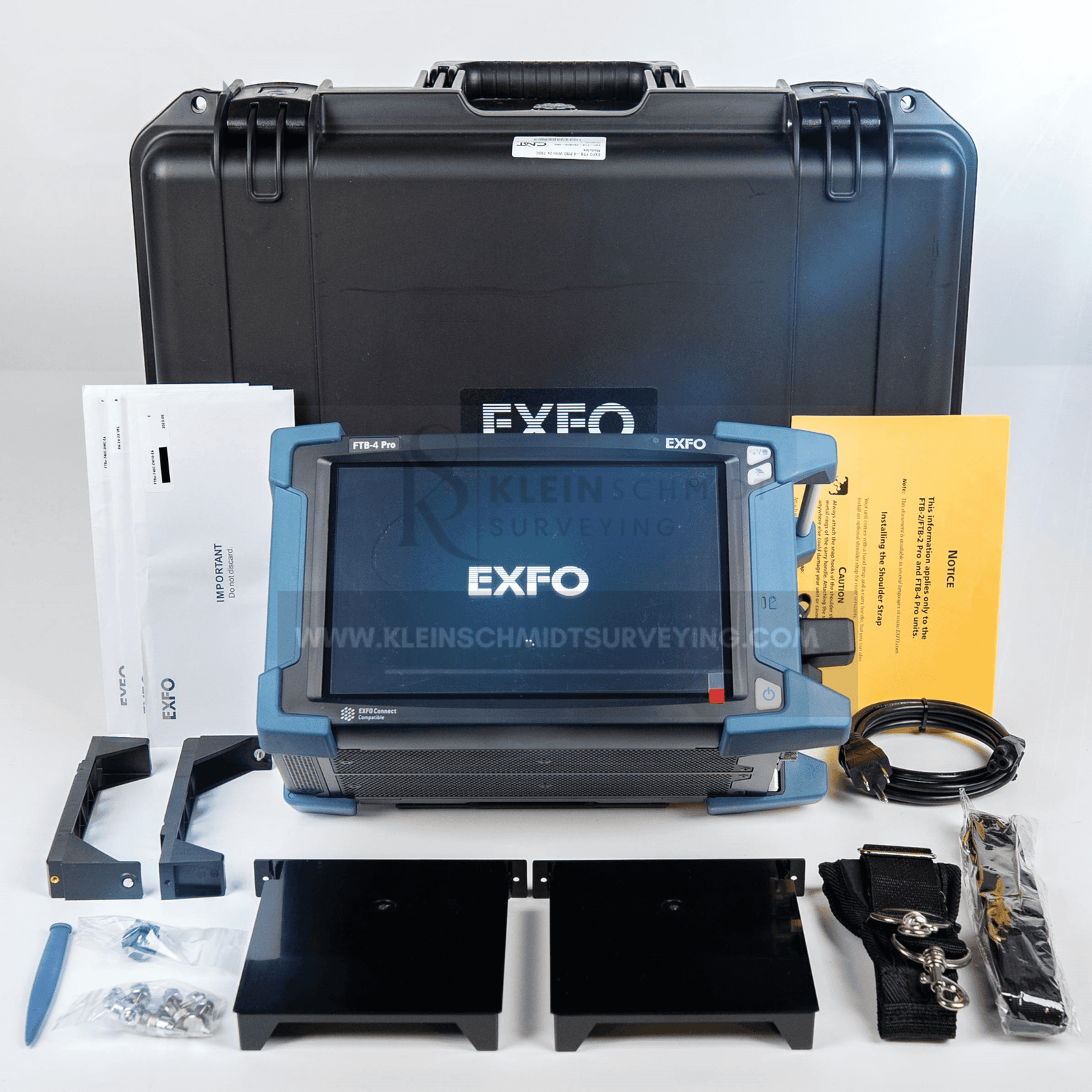

Package Includes

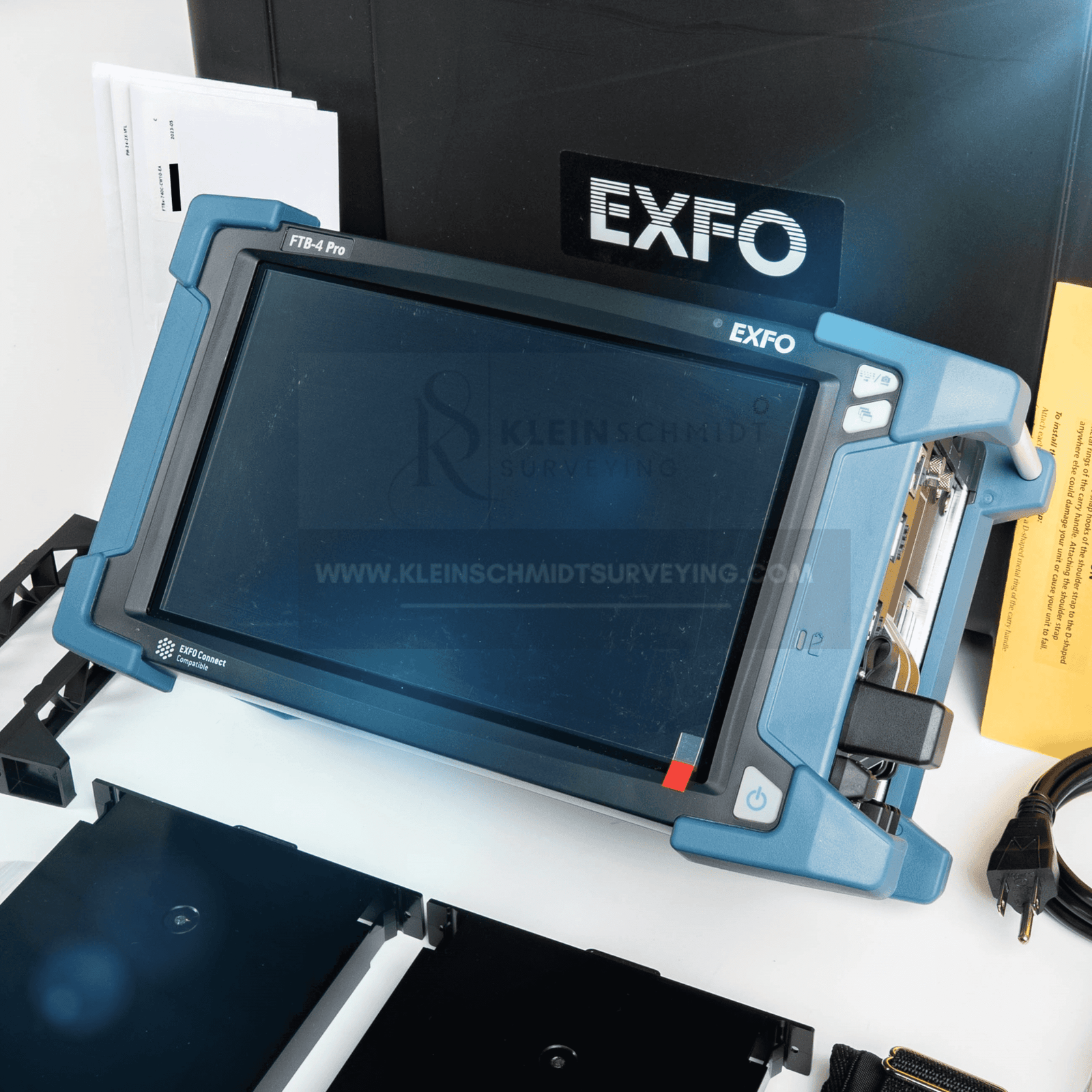

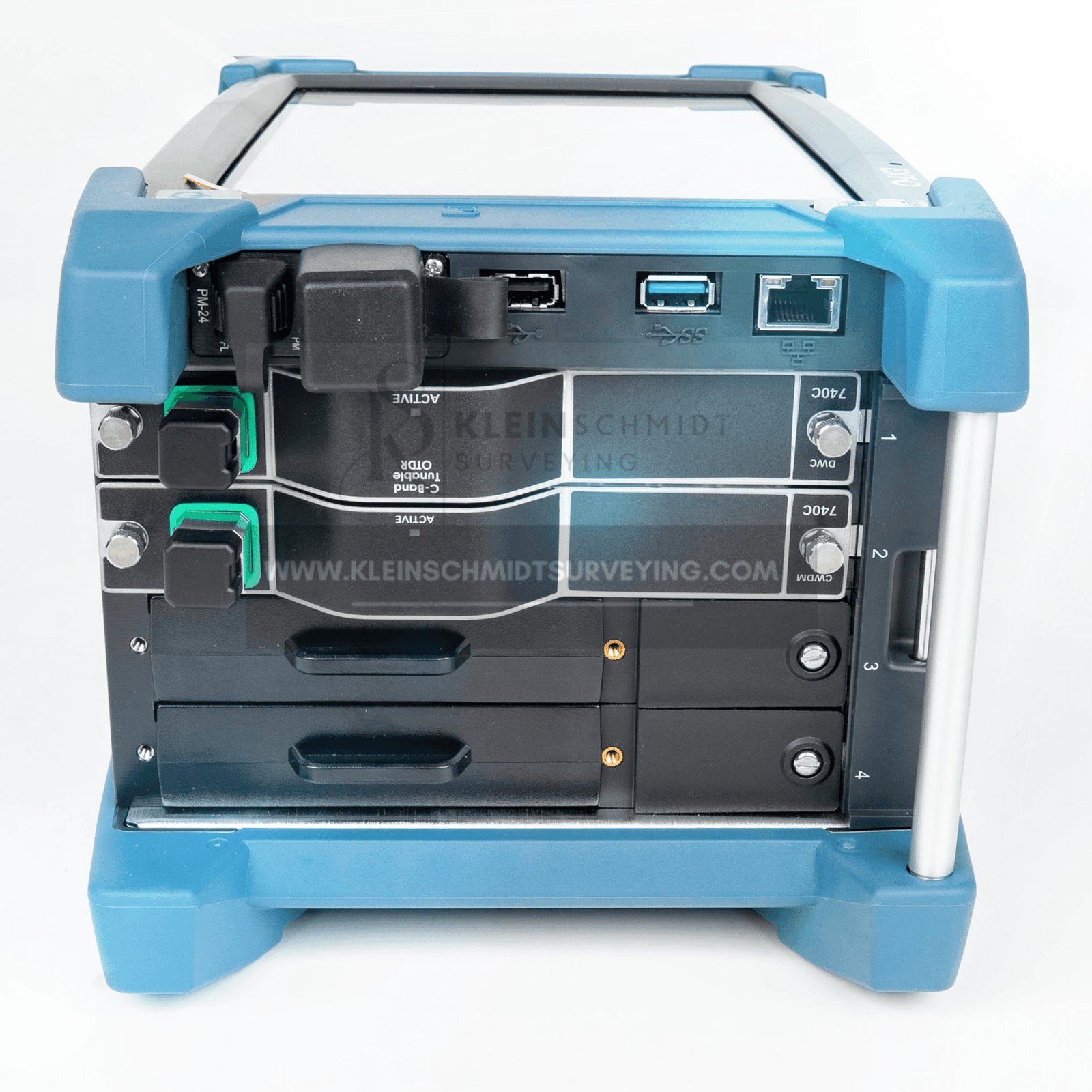

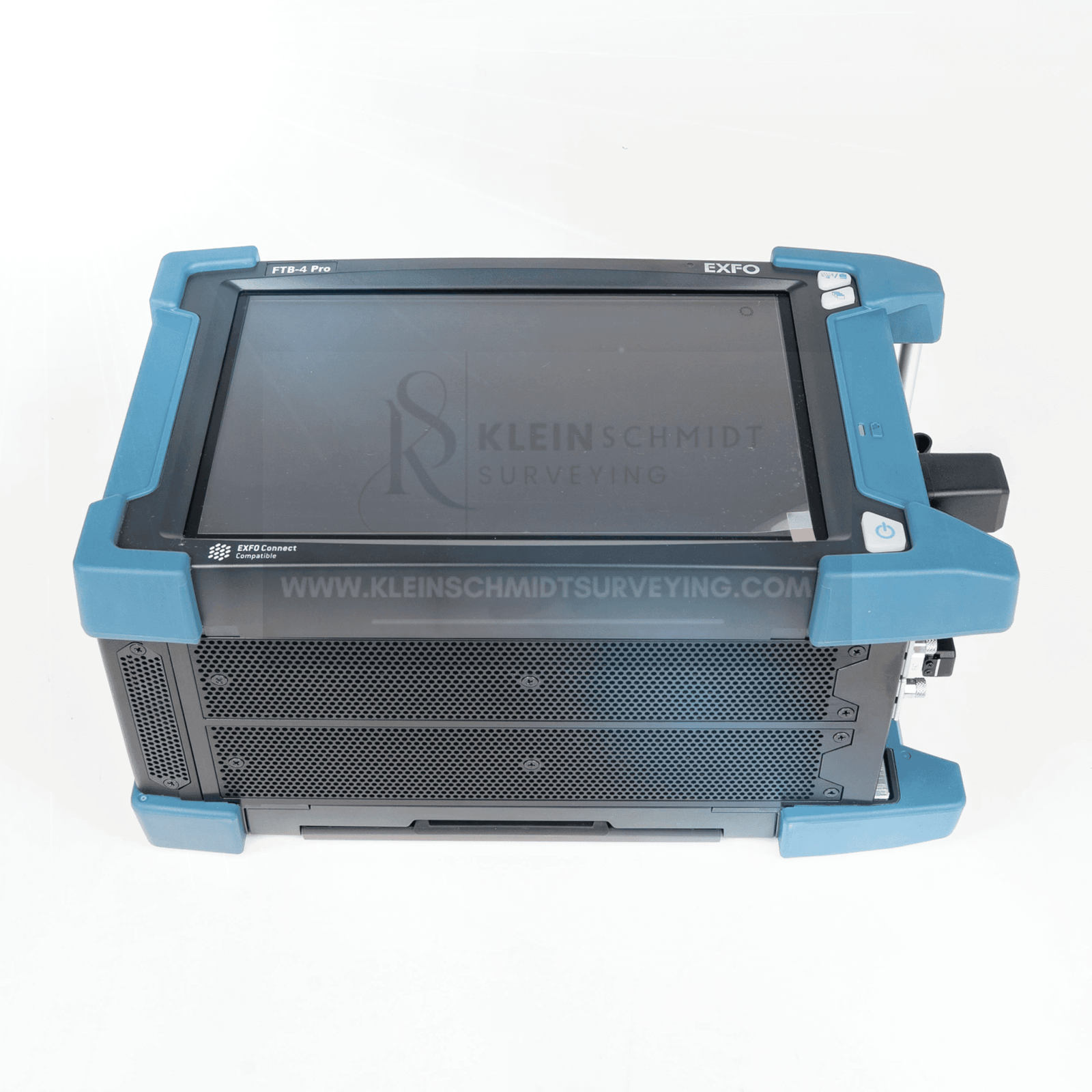

- EXFO FTB-4-Pro-S1-12BG Mainframe

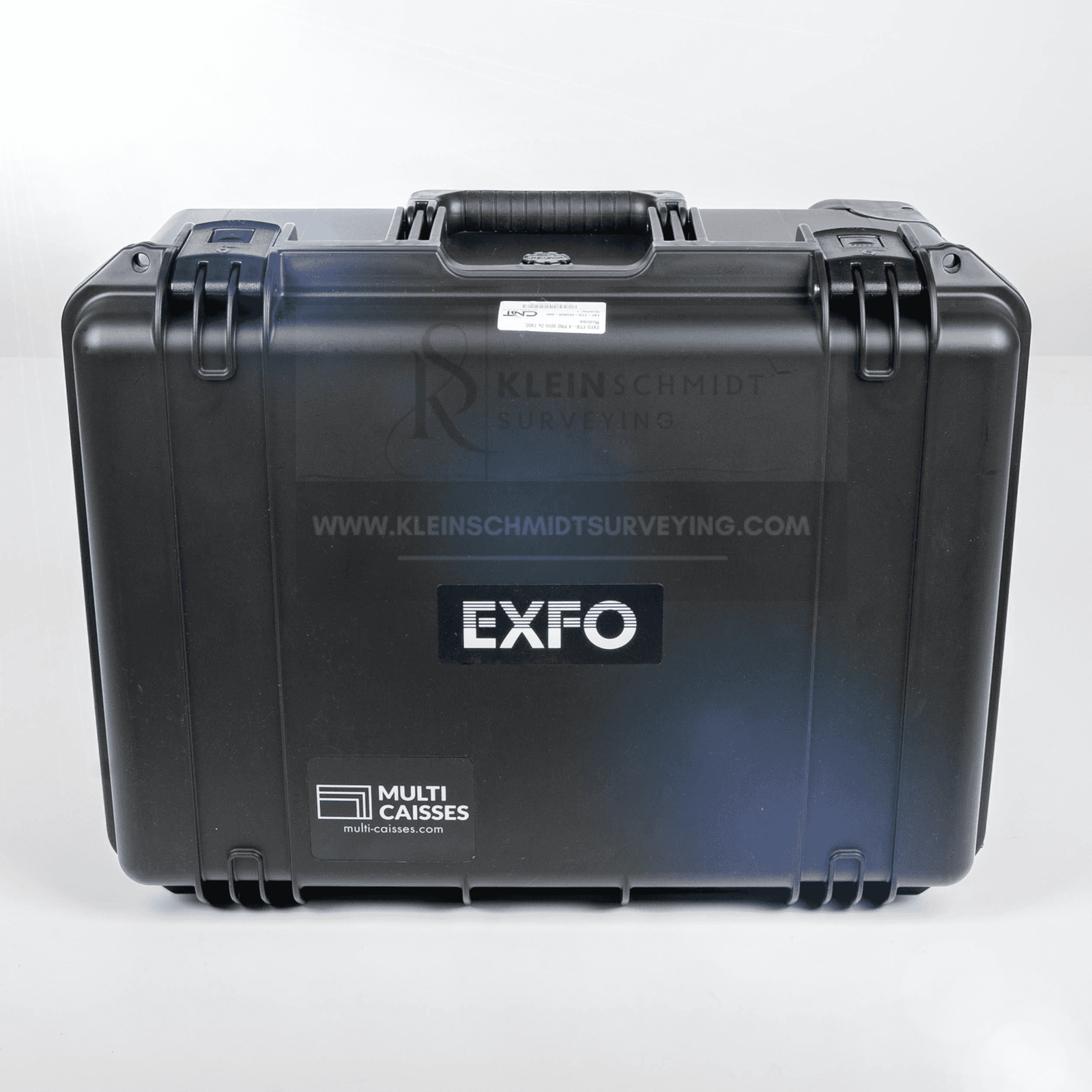

- Exfo Hard Case

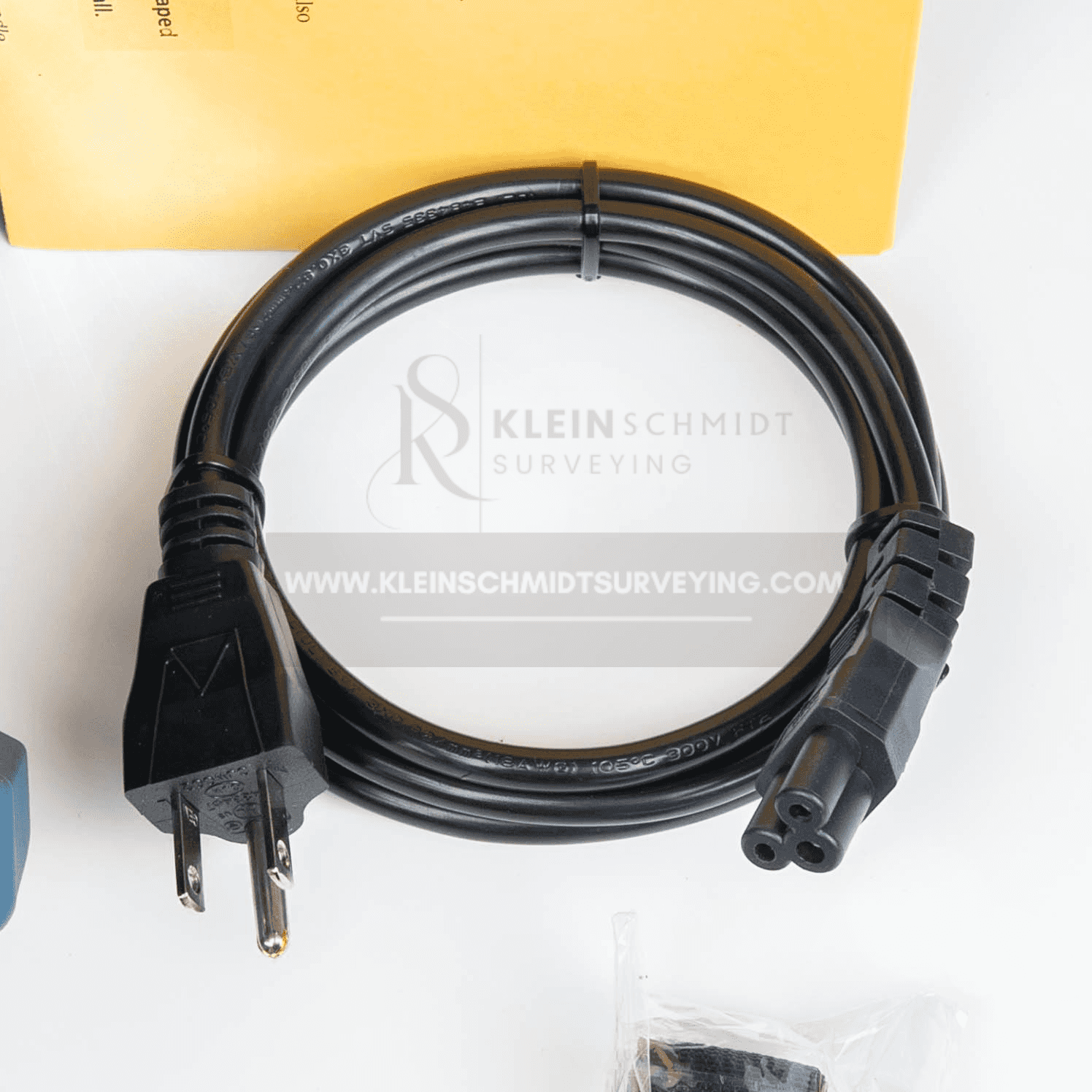

- AC Power Cable

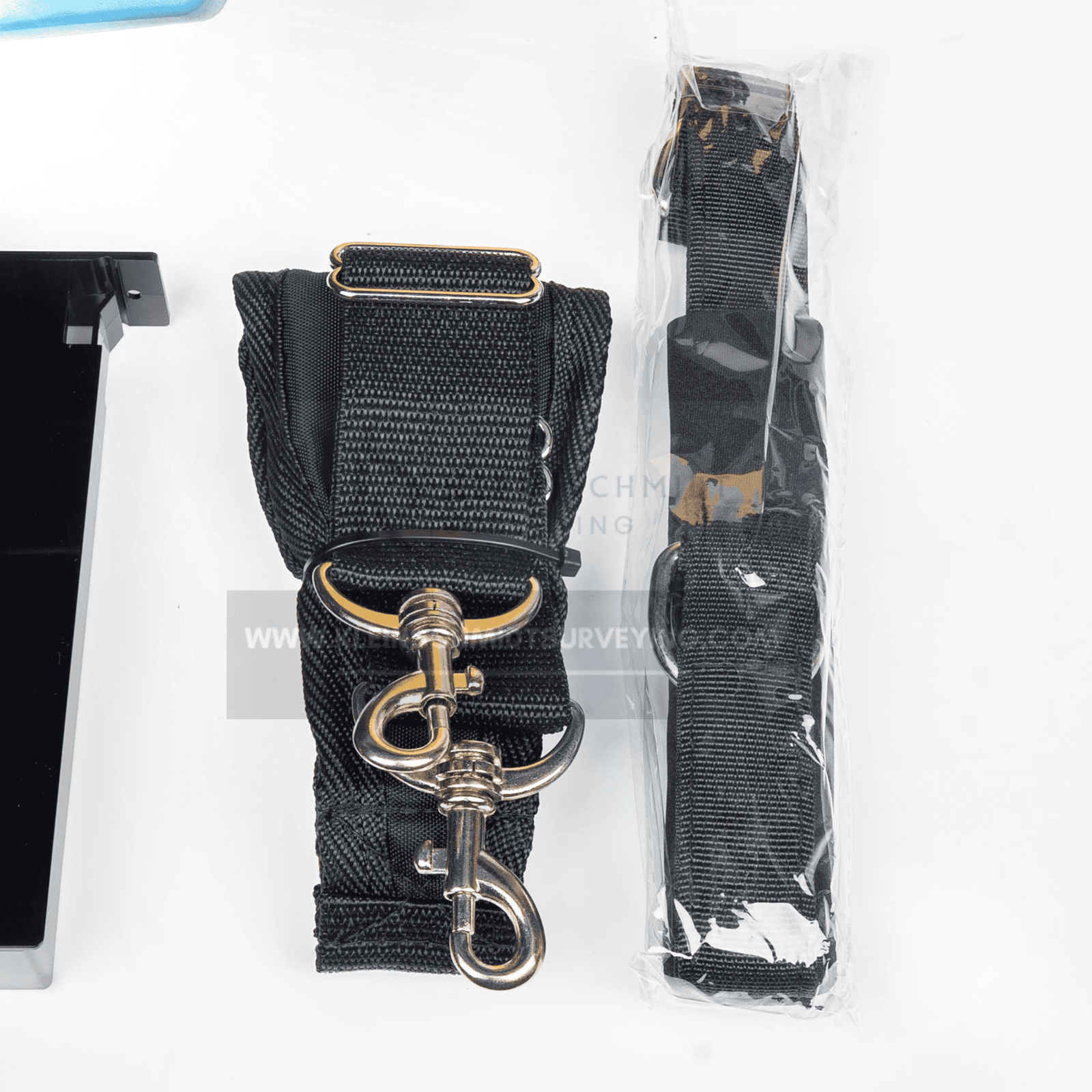

- Neck Strap

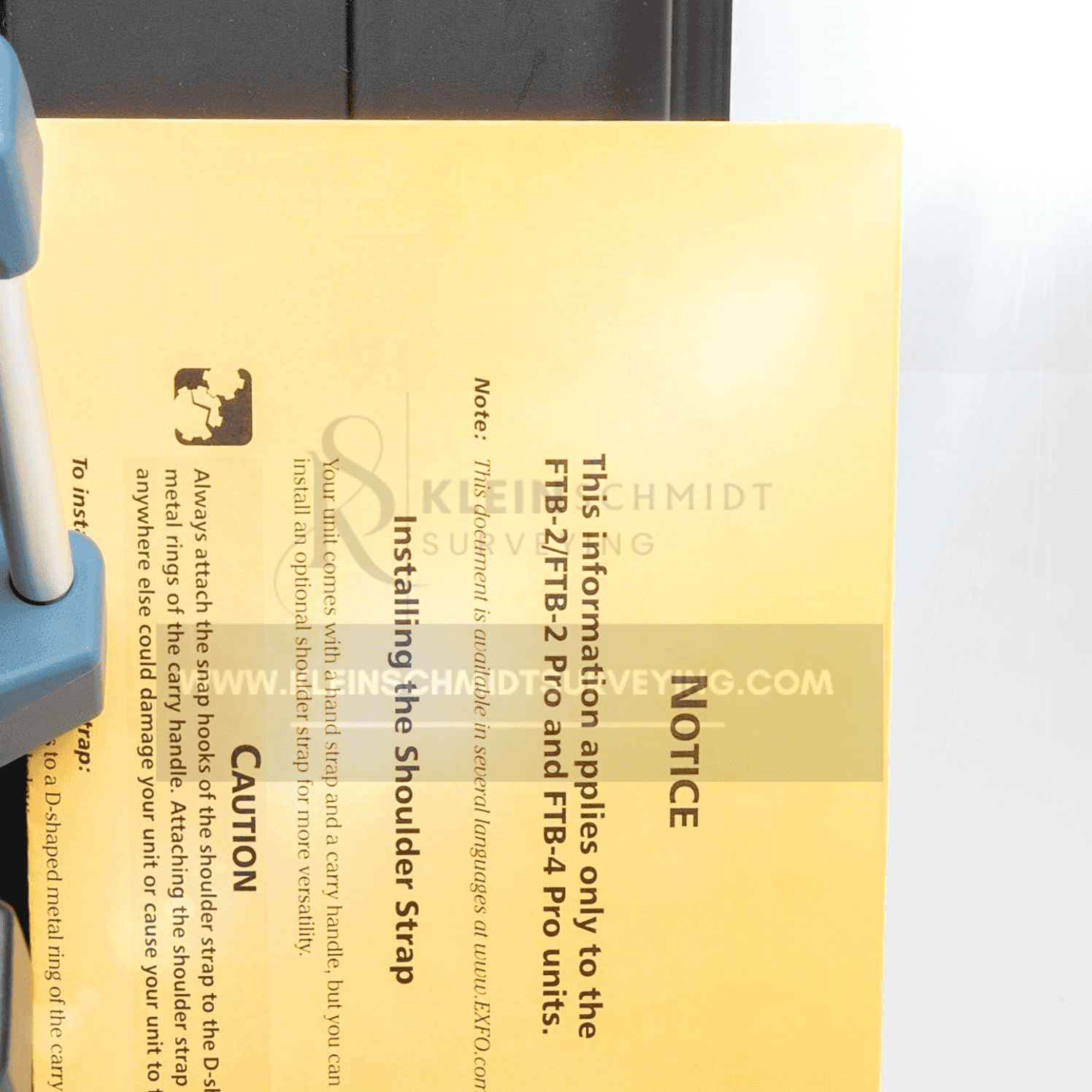

- Shoulder Strap

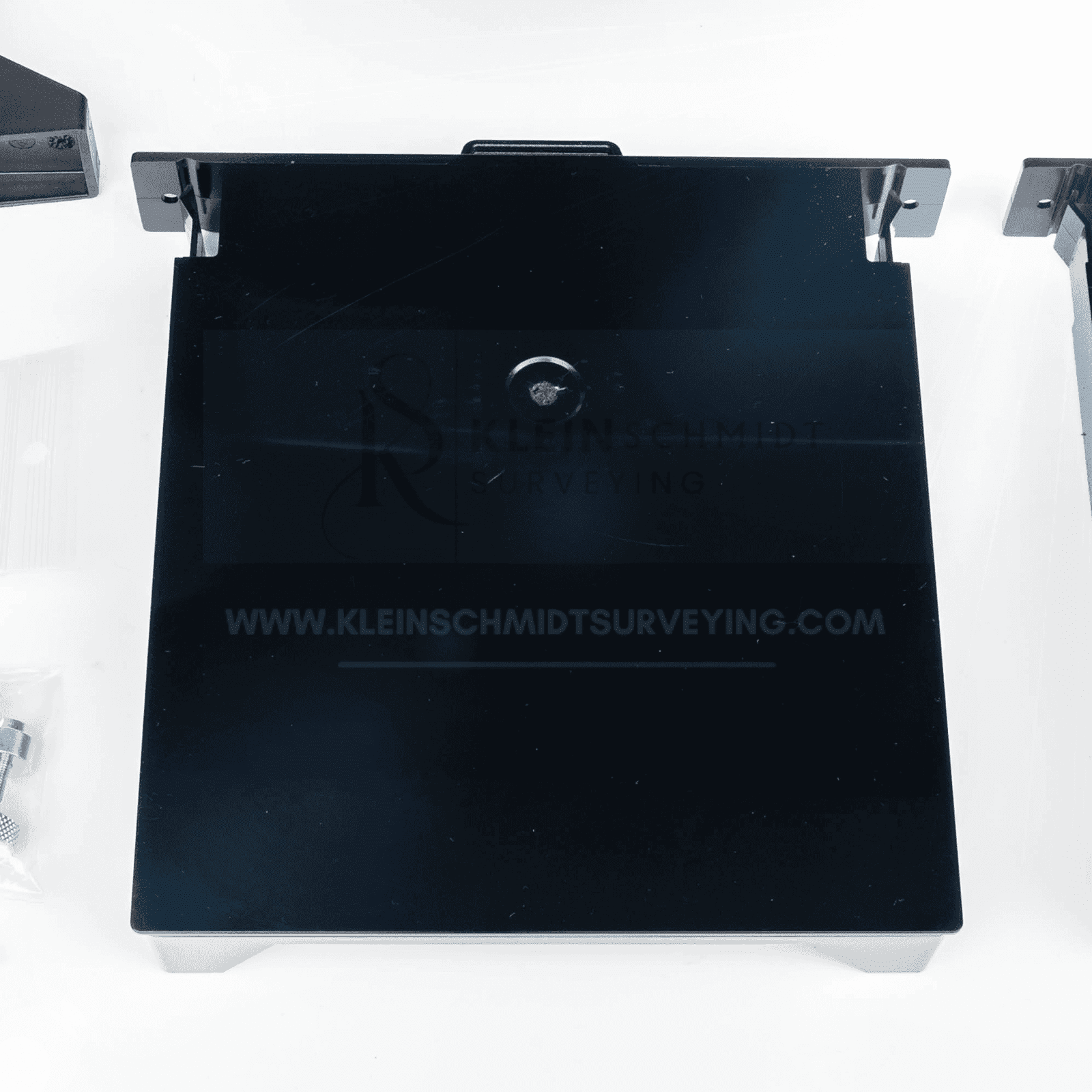

- 2 x Slots Cover

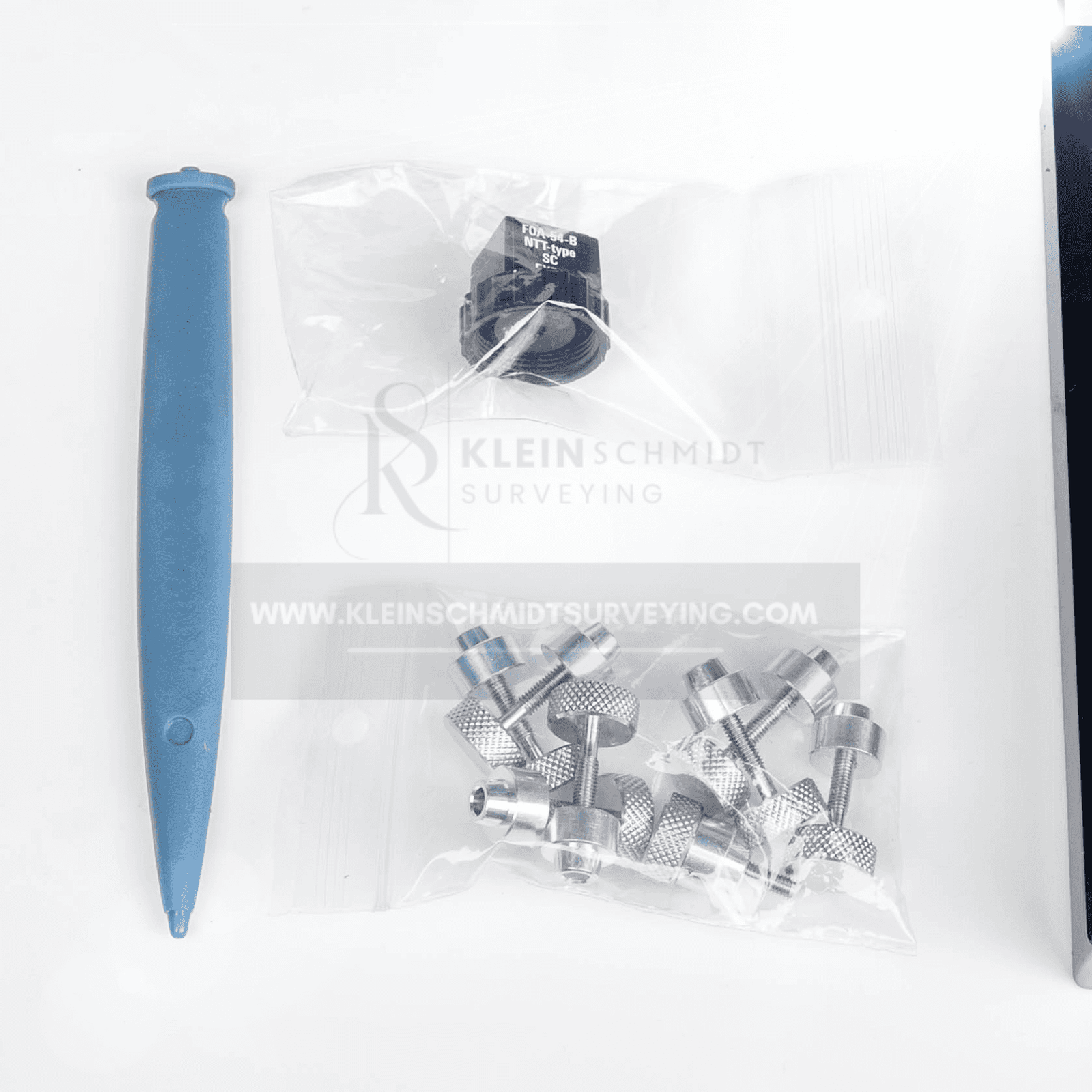

- Screws
- FOA-54-B-NTT-type SC Adapter
- Stylus

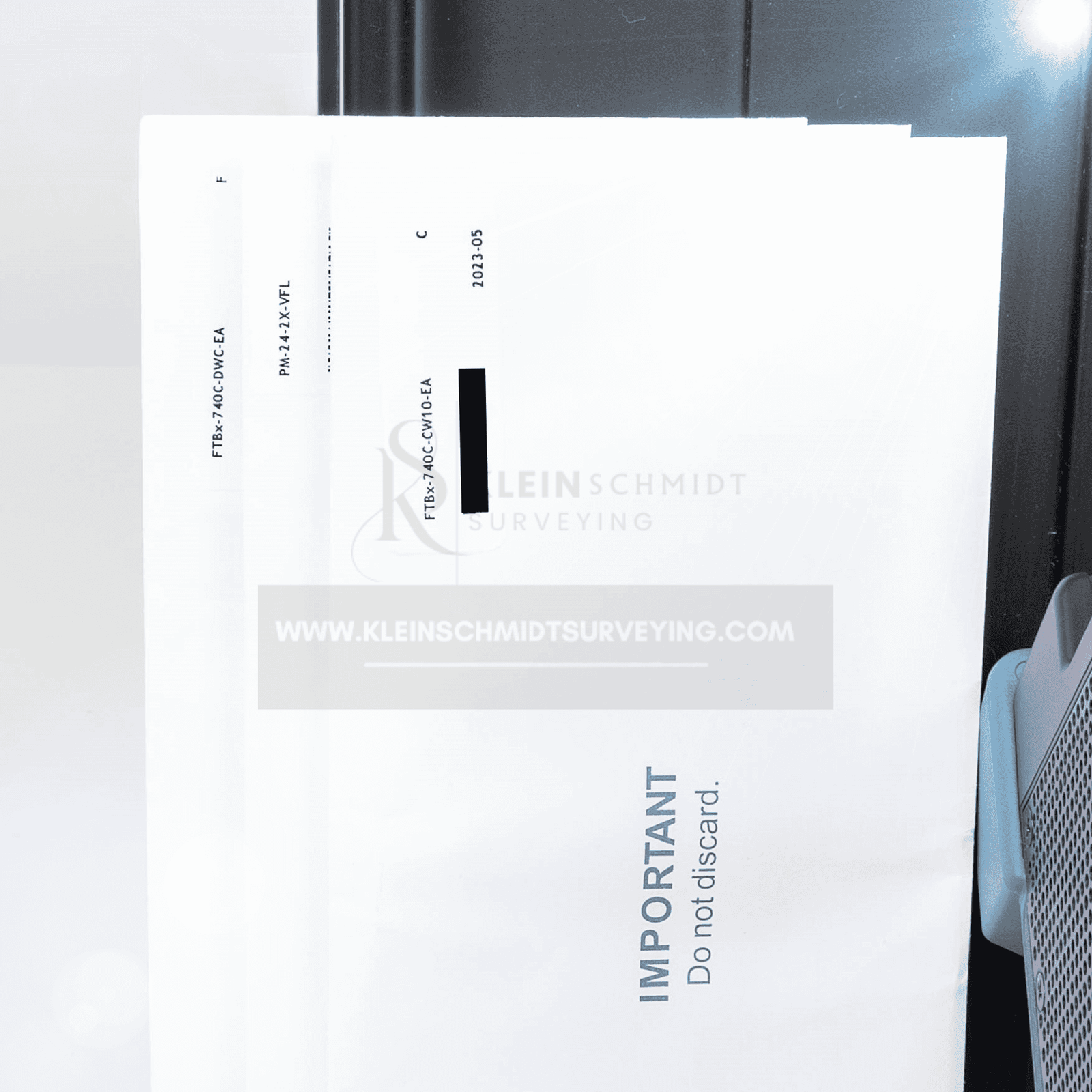

- FTBx-740C-DWC-EA Calibration Certificate
- PM-24-2X-VFL Calibration Certificate
Reference
- Brochure
