Description

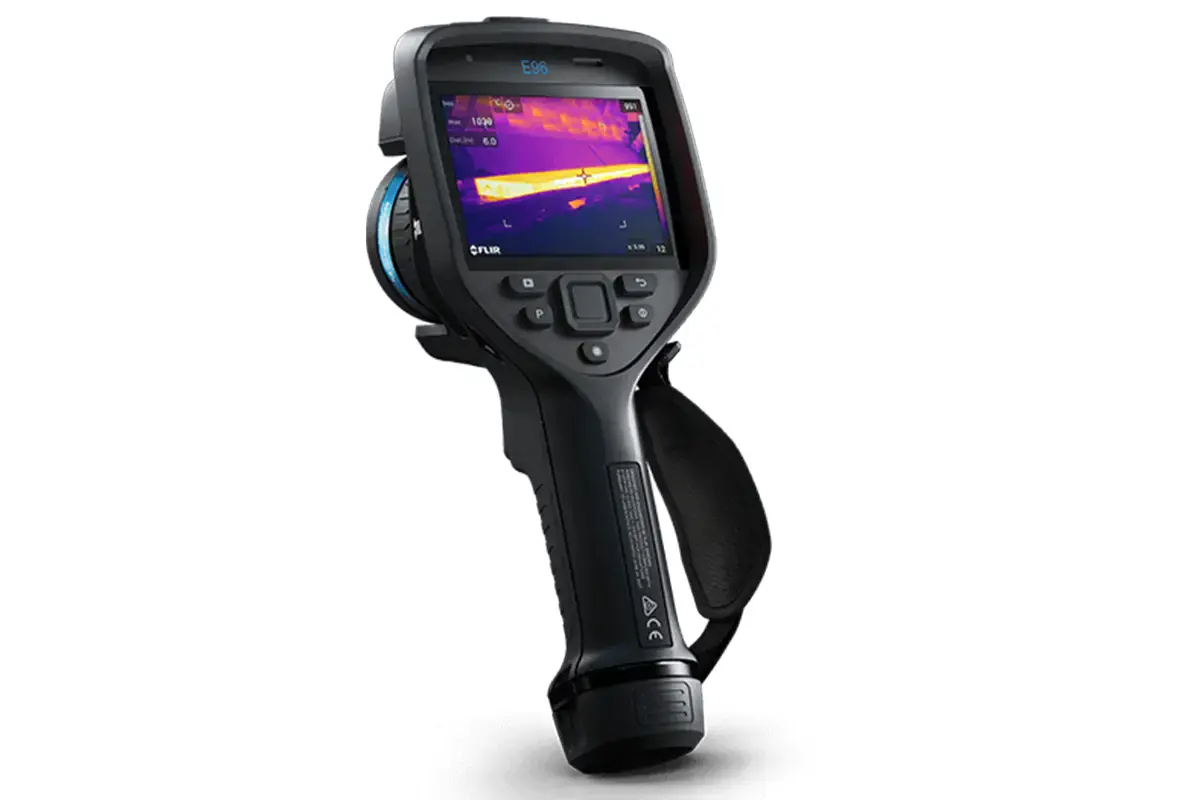

The FLIR E96 Advanced Thermal Imaging Camera is the first pistol-grip camera with 640 × 480 thermal resolution so inspectors can survey high-voltage, hazardous targets safely and quickly diagnose electrical and mechanical failures. Interchangeable AutoCal™ lenses offer complete coverage of near and distant targets, with the laser distance meter ensuring the crisp focus needed for accurate temperature measurement. Onboard FLIR Inspection Route feature runs pre-planned survey routes to help inspectors stay organized when surveying large or multiple locations. For a limited time, the purchase of an FLIR E96 camera includes a 6-months subscription to FLIR Thermal Studio Pro and FLIR Route Creator.
FLIR E96 Feature
- 640×480 thermal resolution produces crisp, vibrant imagery
- Interchangeable, Auto-Calibrating Lenses
- Available Lenses: 14°, 24°, 42°, macro (2x)
- FLIR 1-Touch Level/Span instantly improves image contrast and highlights potential electrical or mechanical issues.
- FLIR MSX® technology for added detail and perspective

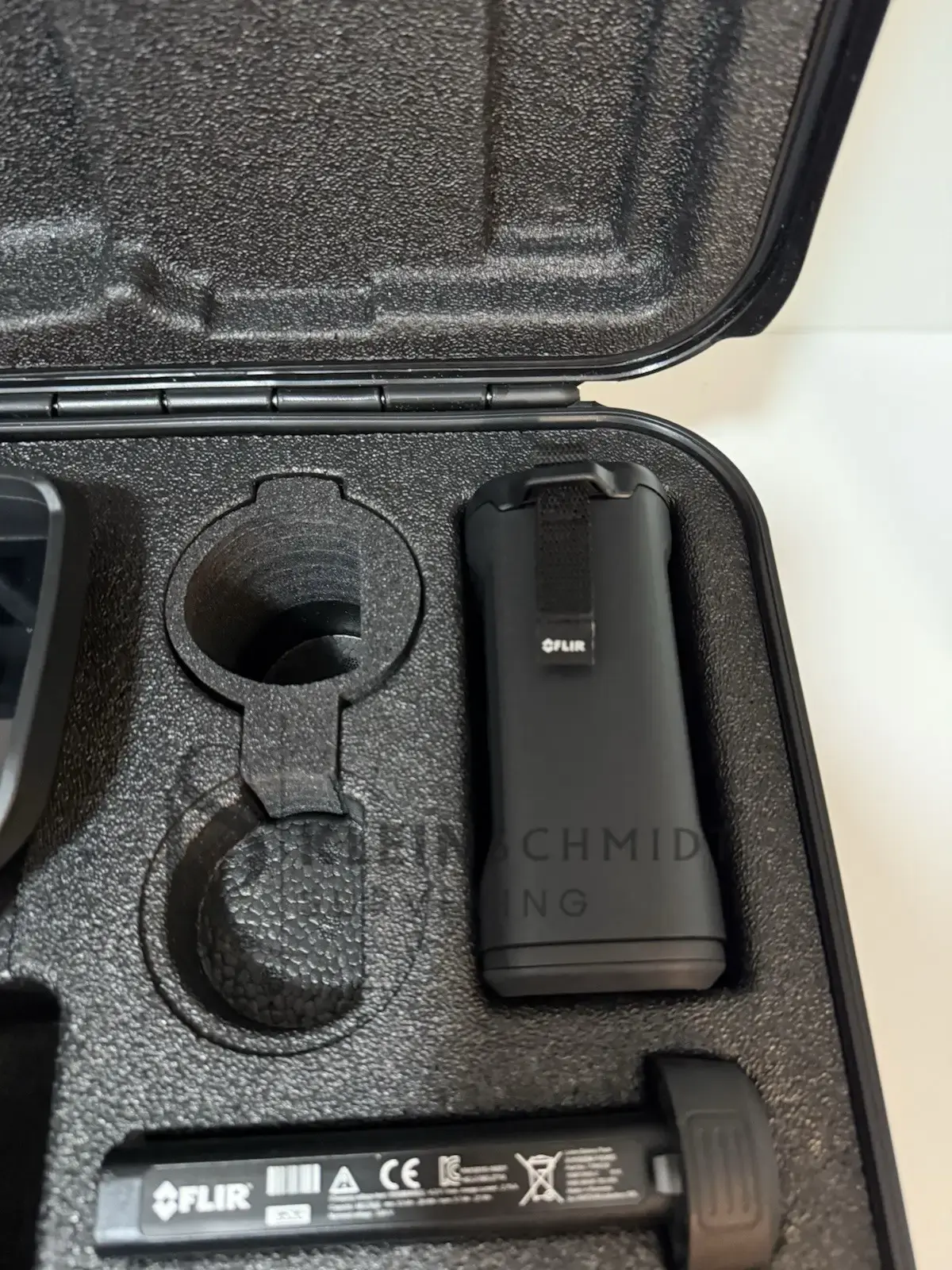

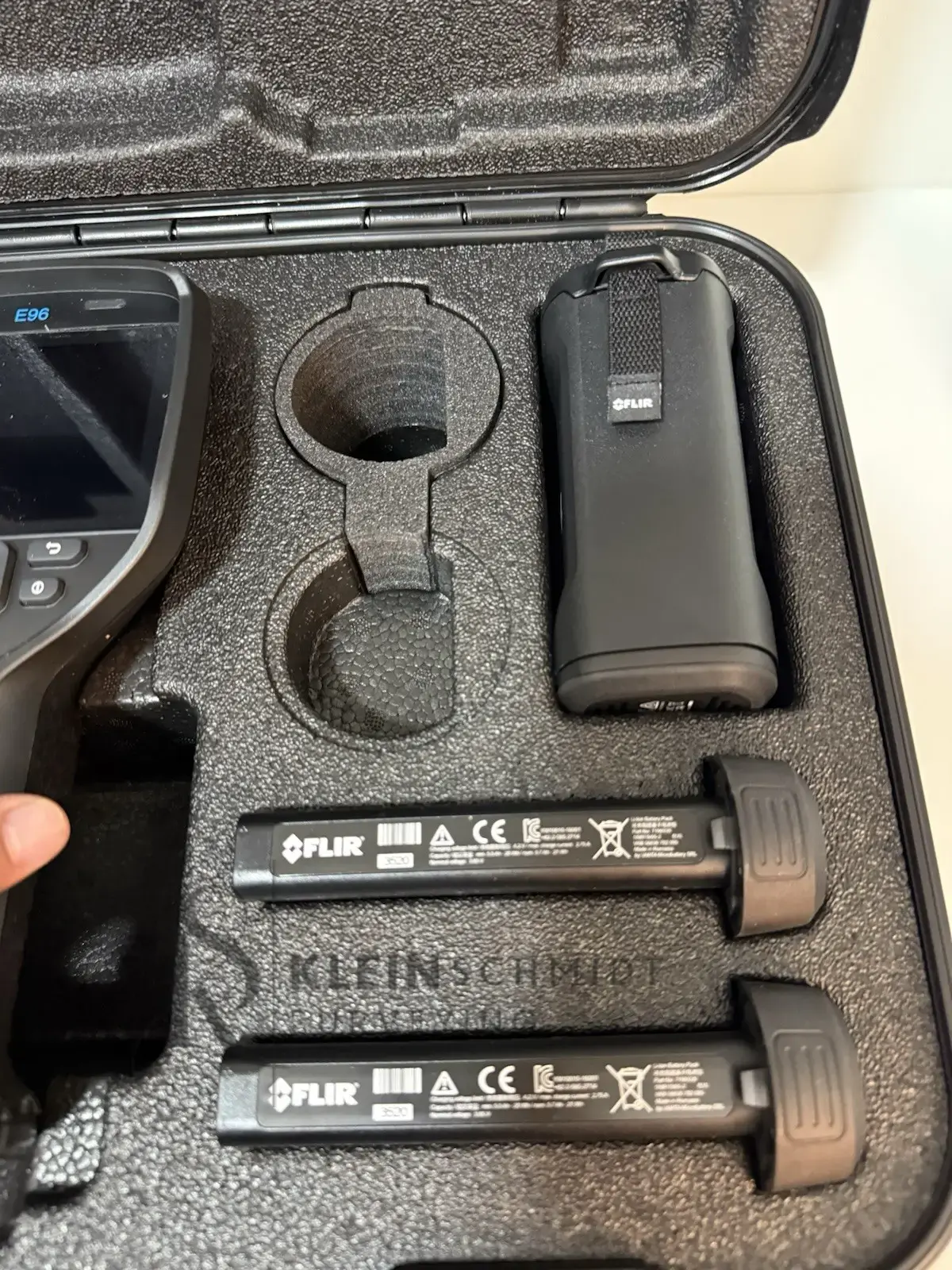

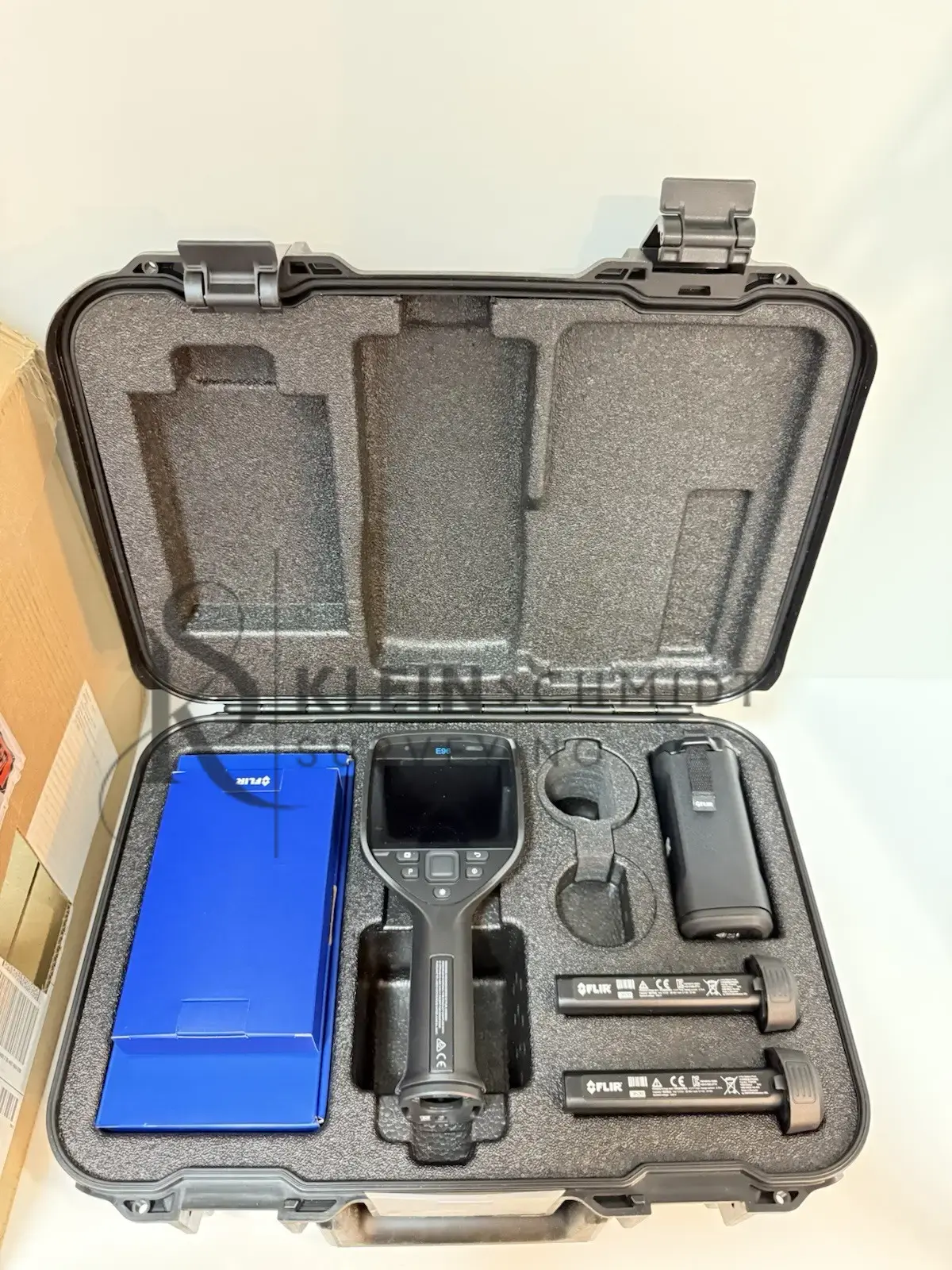

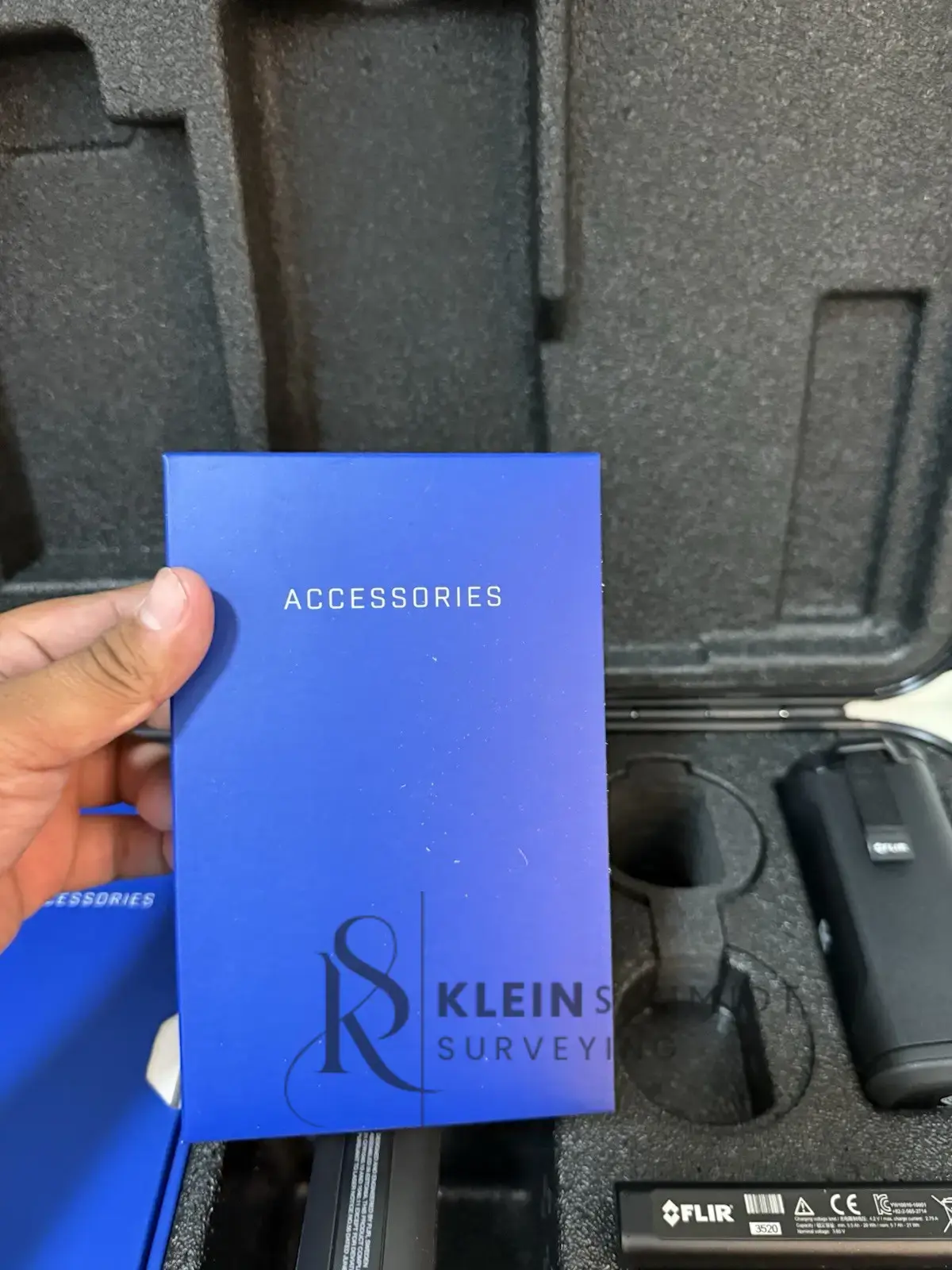

- Includes Infrared camera with lens, small viewfinder eyecup, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C)
OUTSTANDING THERMAL IMAGERY
The 640 × 480 thermal resolution plus FLIR UltraMax® and MSX® image enhancement ensure the E96 produces the most virbrant, easiest-to-interpret images in its class.
INTELLIGENT AUTOCAL OPTICS
Interchangeable, auto-calibrating lenses—from telephoto to wide-angle—allow users to target electrical hot spots safely, check for mechanical faults, and survey roofs or building envelopes quickly.
STREAMLINED REPORTING
Onboard integration with FLIR routing software*, a built-in mic for voice annotation, and report generation features all help the E96 streamline your workday. Streamline Daily Surveys with Route Creation. Exx-Series cameras come equipped with FLIR Inspection Route. This camera mode guides users along a defined route across multiple locations and organizes images and data connected with each inspected asset. Users create a route in FLIR Thermal Studio Pro* with the Route Creator* plugin, then download it to the camera to streamline inspections and speed up post-processing and reporting. (*optional accessory software)
FLIR E96 Specification
| OVERVIEW | |
| Display | 4″, 640 × 480 pixel touchscreen LCD with auto-rotation |
| FLIR Inspection Route | Enabled in camera |
| Screen EST Mode | Yes |
| Laser Pointer | Yes |
| Programmable Buttons | 1 |
| Sampling Average in Screen EST Mode | Recommended temperature range: 30 to 45°C (86 to 113°F) in stable room temperature |
| Text | Predefined list or touchscreen keyboard |
| Time Lapse | 10 seconds to 24 hours (infrared) |
| Voice | 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth® |
| Weight and Dimensions [without lens] | 1 kg (2.2 lbs), 278.4 × 116.1 × 113.1 mm (11.0 × 4.6 × 4.4 in) |
| COMPLIANCE & CERTIFICATIONS | |
| NIST Certification | No |
| CONNECTIONS & COMMUNICATIONS | |
| Communication Interfaces | USB 2.0, Bluetooth®, Wi-Fi, DisplayPort |
| METERLiNK | Yes |
| Storage Media | Removable SD card |
| Video Out | DisplayPort over USB Type-C |
| ENVIRONMENTAL | |
| Operating Temperature Range | -15 to 50°C (5 to 122°F) |
| Safety | EN/UL/CSA/PSE 60950-1 |
| Shock and Vibration and Encapsulation | 25g (IEC 60068-2-27), 2g (IEC 60068-2-6), IP54 (IEC 60529) |
| Storage Temperature Range | -40 to 70°C (-40 to 158°F) |
| IMAGING & OPTICAL | |
| Color palettes | Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava |
| Detector Type and Pitch | Uncooled microbolometer, 17 µm |
| Digital Camera | 5 MP, with built-in LED photo/video lamp |
| Digital Zoom | 1-8× continuous |
| f number | 1.3 |
| Focus | Continuous LDM, One-shot LDM, One-shot contrast, Manual |
| Global Positioning System [GPS] | Automatic image tagging |
| Image Frequency | 30 Hz |
| Image Sketch | From touchscreen, on infrared image only |
| IR Resolution | 640 × 480 pixels |
| Lens Identification | Automatic |
| Minimum Focus Distance | 0.15 m |
| Non_Radiometric IR or Visual Video | H.264 to memory card |
| Non_radiometric IR video streaming | H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi |
| Picture_in_Picture | Resizable and movable |
| Radiometric IR video recording | Real-time radiometric recording (.csq) |
| Radiometric IR video streaming | Yes, over UVC |
| Spectral Range | 7.5-14 µm |
| Thermal Sensitivity_NETD | <40 mK at 30°C (86°F) |
| Filter_UltraMax | Yes |
| Viewfinder | No |
| MEASUREMENT & ANALYSIS | |
| Accuracy | ±2°C (±3.6°F) or ±2% of the reading |
| Accuracy [Drift] in Screen EST Mode | Accuracy (drift): ±0.3°C (±0.5°F) |
| Area measurement information | Yes |
| Laser Distance Meter | Yes; dedicated button |
| Measurement Presets | No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2 |
| Object Temperature Range | -20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F); 300 to 1500°C (572 to 2732°F) |
| Spot Meter | 3 ea. in live mode |
| POWER | |
| Battery operating time | >2.5 hours at 25°C (68°F) and typical use |
| Battery Type | Rechargeable Li-ion battery |
| STORAGE MEDIA | |
| Image File Format | Standard JPEG with measurement data included. Infrared-only mode |
| Image Storage Mode | Infrared, Visual, MSX®, Picture-in-Picture, Gallery |
