Description
The FLIR T530 Professional Thermal Camera has the features professionals need to accurately troubleshoot hot spots and potential faults. With the 180° rotating lens platform and a bright 4″ LCD, the FLIR T530 is engineered to help users diagnose hard-to-reach components in any environment. Advanced on-camera measurement tools, laser-assisted autofocus, and FLIR’s industry-leading image quality ensure you’ll find and diagnose problems quickly. With on-board Inspection Route mode, you can download and run survey plans to your camera from FLIR Thermal Studio Pro.
Safely diagnose potential faults with a portable, ergonomic FLIR T530 Thermal Camera . Paired with a FLIR FlexView™ dual field-of-view lens, FLIR T530 cameras give you the convenience to instantly switch from wide-area to telephoto scanning without changing the lens. Streamline industrial, electrical, and mechanical surveys and repairs with Inspection Route mode, which runs pre-planned routes created in FLIR Thermal Studio Pro. Record temperature data and imagery in a logical sequence for more efficient troubleshooting and repair scheduling, then upload images directly to the FLIR Ignite cloud for secure storage, sharing, and importing into Thermal Studio.
Make critical decisions quickly
Advanced imaging technology and high sensitivity help professionals make the right call – fast.
- Change from wide area scanning to telephoto instantly with the FlexView™ dual field-of-view lens
- Get industry-leading image clarity from Vision Processing™ through the power of patented MSX®, UltraMax®, and proprietary adaptive filtering
- Use the laser distance measurement tool to effortlessly transfer precise object distance data into your reports
- Match the visual camera’s field of view with up to 320 x 240 thermal resolution, delivering 307,200 radiometric non-contact temperature measurement points, using UltraMax® resolution enhancement
Maximize efficiency, safety, and performance
Assess equipment and prevent component failure safely from any vantage point.
- Target overhead components with less strain thanks to the 180° rotating optical block
- Share lenses (wide angle to telephoto) across a fleet of cameras with AutoCal™ optics
- Ensure precision measurement with laser-assisted autofocus and 1-Touch Level/Span
- Make decisions easily with an LCD display that’s 33% brighter and 4x the resolution of comparable cameras
Tools to make the job easier
Organize findings in the field with built-in navigation and reporting features.
- Quickly access menus, folders, and settings using intuitive controls, including rapid response touchscreen and two programmable buttons
- Streamline inspections by downloading survey routes from Thermal Studio Pro to the cameras*†
- Upload and organize images to Ignite cloud for secure storage, sharing, and importing to reports‡
- Prepare precise documentation with embedded GPS locations as well as measurement data from METERLiNK®-enabled FLIR clamp meters and multimeters
Storage capacity
When you save an image, the camera stores the image file on the memory card. The size of an image file (with no annotations) is typically less than 1000 kB. Thus, the capacity of a 8 GB memory card is approximately 8000 images. Note: Empty or use a memory card that has not previously been used in another type of camera. The cameras may organize files differently on the memory card. There is therefore a risk of losing data if the same memory card is used in different types of cameras.
FLIR T530 Features
- Analyze images, quickly build reports, and keep customers informed with rapid Wi-Fi uploads, customized work folders, and streamlined reporting features that make your job easier
- Unmatched autofocus: Whether you choose one-shot or continuous autofocus, this professional thermal imaging camera precise laser-assisted focus ensures you record tack-sharp images, for the most accurate temperature readings
- Bright LED work lights improve image clarity in dim areas
- Vibrant, 4″ (101.6 mm) optically-bonded PCAP touchscreen
- Separate autofocus and image recording buttons
- Speaker plays back voice annotation
- Microphone for voice annotation
- Li-ion battery for extended use times
- Scratch-resistant Dragontrail™ glass
- 5 MP digital camera now closer to thermal detector for superior MSX® enhancements
- Focus ring
- Image archive button
- Navigation pad with center push
- Back button
- On/off button
- Light sensor
- Attachment point for the neck strap
- Laser transmitter and receiver
- Save button
- Autofocus button
- Camera lamp (left and right sides)
FLIR T530 Specifications
| General | |
| Compatible with FLIR software | FLIR Thermal Studio Suite, FLIR Route Creator, FLIR Ignite, FLIR Research Studio, FLIR Atlas SDK |
| Housing material | PCABS with TPE, magnesium |
| Laser Pointer | Class 2, 0.05–40 m (0.16–131 ft) ±1% of measured distance |

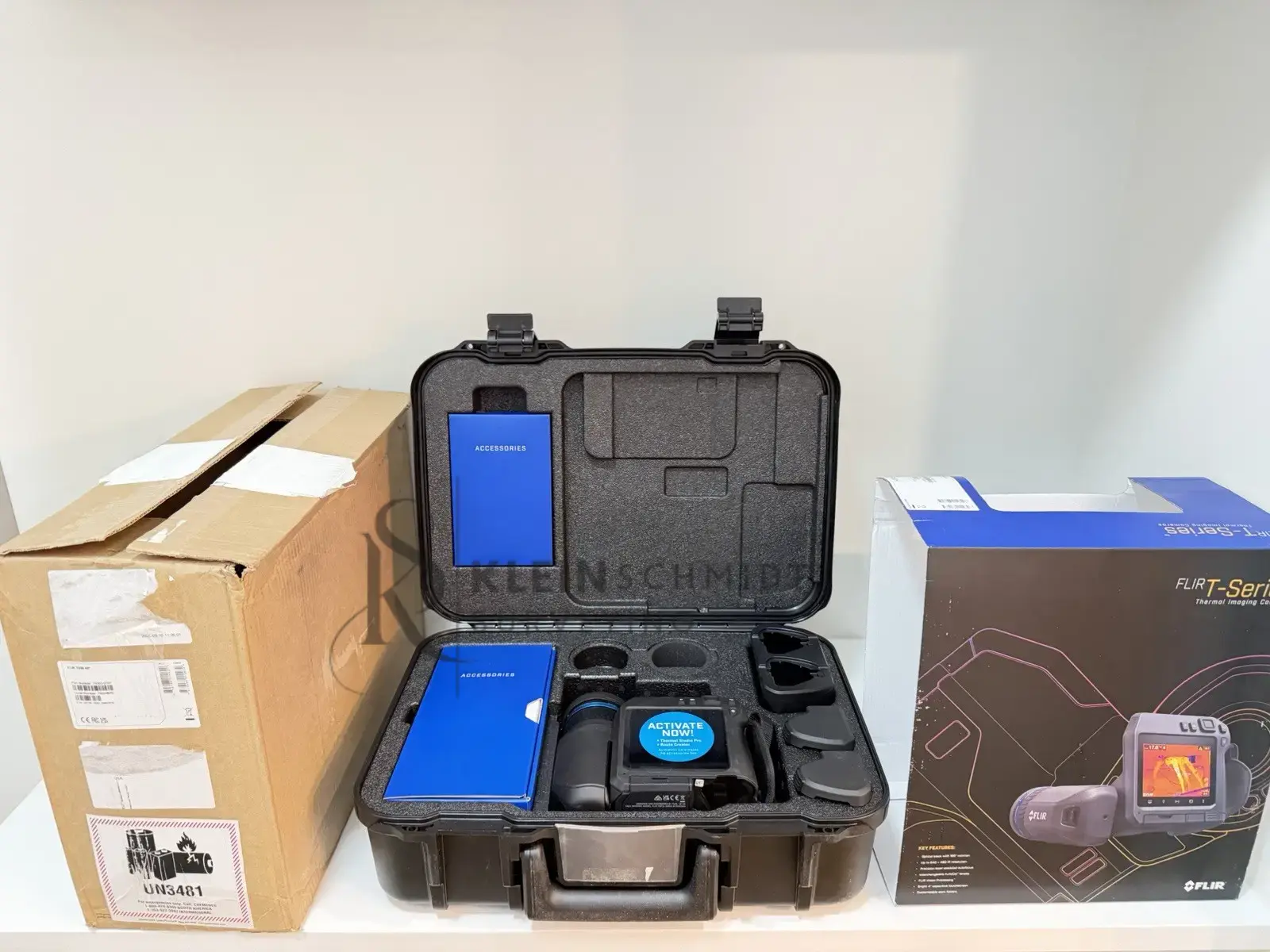

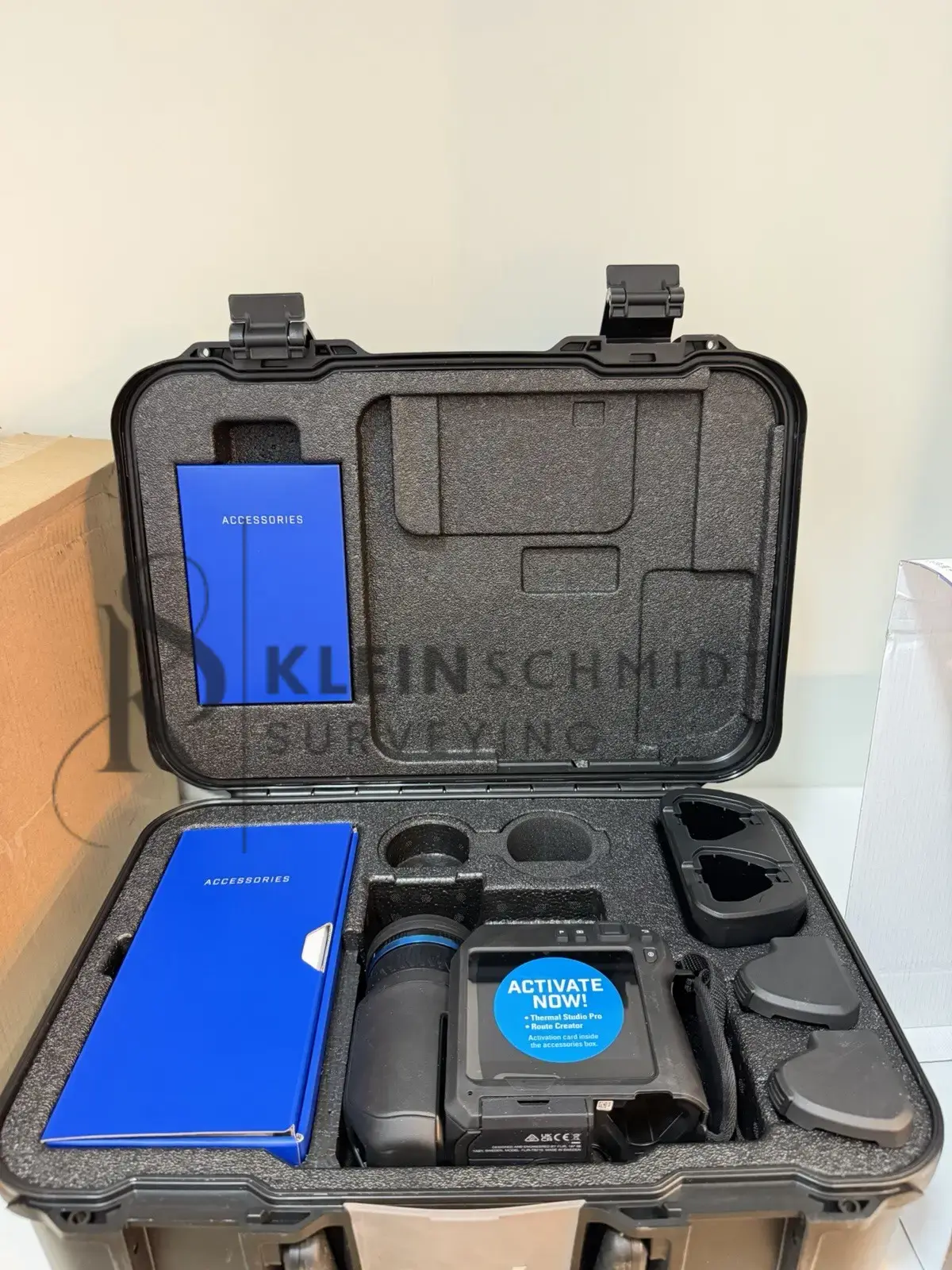

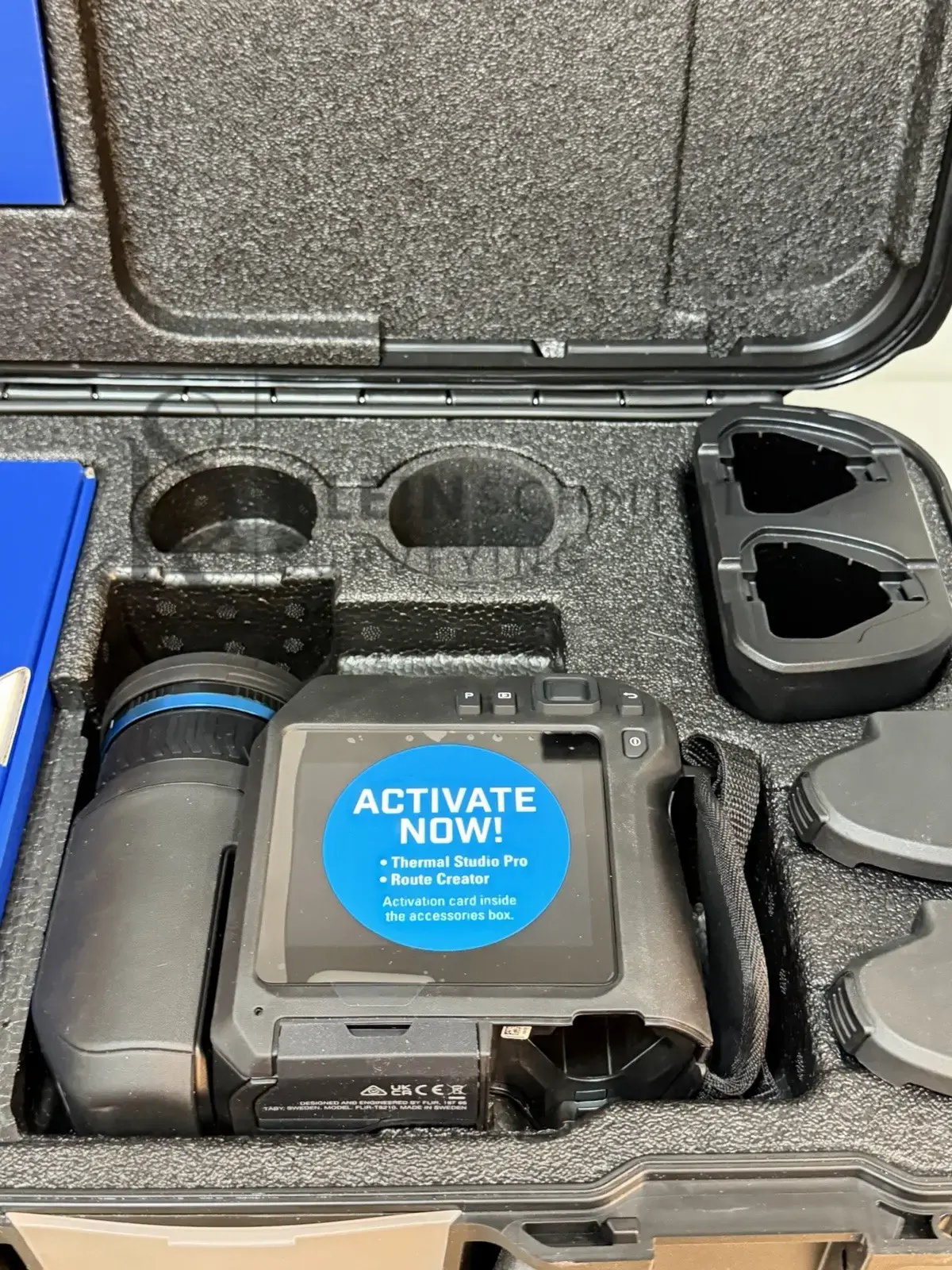

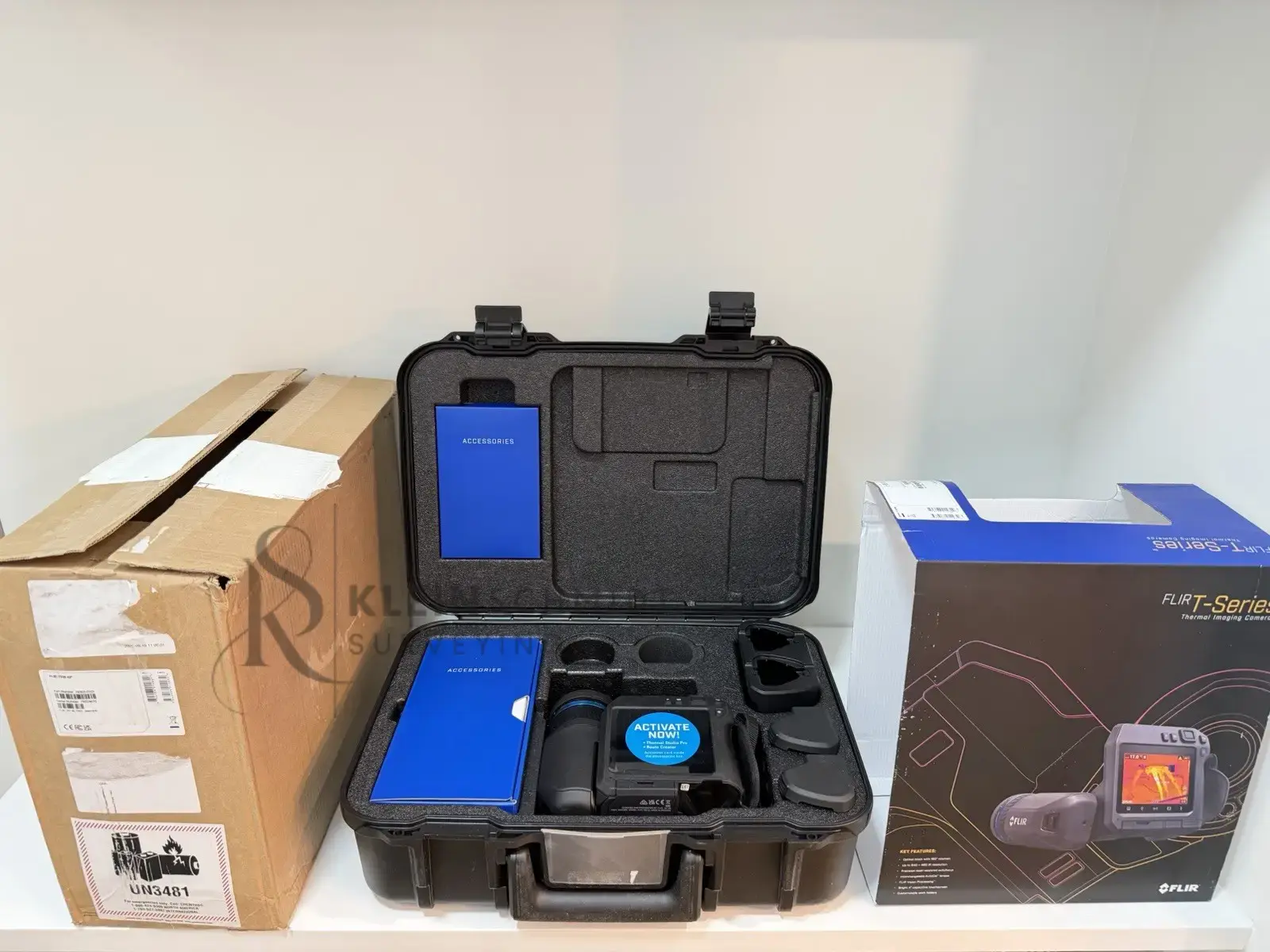

| Packaging | Infrared camera with lens, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Pro (3 month subscription) |
| Packaging Size | 500 × 190 × 370 mm (19.7 × 7.5 × 14.6 in) |
| Size (L x W x H) | Lens horizontal: 140 × 201.3 × 167.3 mm (5.5 × 7.9 × 6.6 in) |
| Weight [battery included] | 1.4 kg (3.1 lb) |
| Imaging & Optical | |
| Camera software update | Using USB cable or SD card |
| Color | Black |
| Color Palettes | Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC |
| Detector Type and Pitch | Uncooled microbolometer, 17 µm |
| Digital Camera | 5 MP, with built-in LED photo/video lamp; disabled when 80° lens in use |
| Digital Camera FOV | 53° × 41° |
| Digital Zoom | 1-4x continuous |
| f-number | 1.1, 42° 1.3, 24° 1.5, 14° 1.3, 80° ° |
| Field of View | 42° × 32° 24° × 18° |
| Field of view (FOV) | 42° × 32° 24° × 18° 14° × 10° 80° × 63° |
| Focal Length | 10 mm (0.39 in.), 42° 17 mm (0.67 in.), 24° 29 mm (1.41 in.), 14° 5 mm (0.19 in.), 80° |
| Focus | Continuous with laser distance meter (LDM), one- shot LDM, one-shot contrast, manual |
| Gallery | Yes |
| Image Frequency | 30 Hz |
| IR Resolution | 320 × 240 (76,800 pixels) |
| Laser Alignment | Position is automatically displayed on the infrared image |
| Lens | 24°, 14°, 42°, 80°, DFOV (24°, 14°), DFOV (42°, 24°) |
| Lens Identification | Automatic |
| Minimum Focus Distance | 0.15 m (0.49 ft.), 42° 0.15 m (0.49 ft.), 24° 1.0 m (3.28 ft.), 14° Macro mode 103 µm as option to 24° 0.10 m (3.9 in), 80° |
| Minimum Focus Distance with MSX | 0.65 m (2.13 ft.), 42° 0.5 m (1.64 ft.), 24° 1.0 m (3.28 ft.), 14° |
| Non-radiometric IR video streaming | H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi |
| Picture-in-Picture | Resizable and movable |
| Radiometric IR video recording | Real-time radiometric recording (.csq) |
| Radiometric IR video streaming | Over UVC |
| Resolution | 320 × 240 pixels (VGA) |
| Spatial resolution (IFOV) | 2.41 mrad/pixel, 42° 1.31 mrad/pixel, 24° 0.75 mrad/pixel, 14° 5.2 mrad/pixel, 80° |
| Spectral Range | 7.5 – 14.0 µm |
| Thermal Sensitivity/NETD | <30 mK, 42° @ +30°C (+86°F) <40 mK, 24° @ +30°C (+86°F) <50 mK, 14° @ +30°C (+86°F) <40 mK, 80° @ +30°C (+86°F) |
| UltraMax | Quadruples pixel count; activated in menu and processed in FLIR Thermal Studio |
| Video Lamp | Built-in LED light |
| Viewfinder | No |
| Visual Image | Yes |
| Visual Video Recording | H.264 to memory card |
| Visual Video Streaming | Yes |
| Measurement & Analysis | |
| Accuracy | ±2°C (±3.6°F) or ±2% of reading |
| Automatic hot & cold detection | Automatic maximum/minimum markers within area |
| Color Alarm (Isotherm) | •Above •Below •Interval •Condensation (moisture/humidity/dewpoint) •Insulation |
| Difference Temperature | Yes |
| Emissivity Correction | Yes, variable from 0.01 to 1.0 or selected from materials list |
| Measurement Corrections | Yes |
| Measurement Function Alarm | Audible/visual alarms (above/below) on any selected measurement function |
| Measurement Presets | •No measurements •Center spot •Hot spot •Cold spot •User preset 1 •User preset 2 |
| Object Temperature Range | -20°C to 120°C (-4°F to 248°F); 0°C to 650°C (32°F to 1202°F); Optional Calibration: 300°C to 1200°C (572°F to 2192°F) |
| Reference Temperature | Yes |
| User Interface | |
| Display | 4″, 640 × 480 pixel touchscreen LCD with auto-rotation |
| Display Technology | IPS |
| Languages | 21 |
| Text | Predefined list or touchscreen keyboard |
| Touch Screen | Optically bonded PCAP |
| Voice | 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth |
| Communication & Data Storage | |
| Audio | Microphone and speaker for voice annotation of images |
| Communication Interfaces | USB 2.0, Bluetooth, Wi-Fi |
| Image File Format | Standard JPEG with measurement data included |
| METERLiNK | Wireless connection (Bluetooth) to: FLIR meters with METERLiNK |
| METERLiNK – Bluetooth | Communication with headset and external sensors |
| Storage Media | Removable SD card |
| USB | USB Type-C: data transfer/video/power |
| USB – Standard | USB 2.0 High Speed |
| Video Out | DisplayPort over USB Type-C |
| Power | |
| Battery operating time | Approx. 4 hours at 25°C (77°F) ambient temperature and typical use |
| Battery Type | Li-ion battery, charged in camera or on separate charger |
| Battery voltage | 3.6 V |
| Battery weight | 195 g (6.89 oz) |
| Charging system | In camera (AC adapter or 12 V from a vehicle) or two-bay charger |
| Charging Temperature | 0°C to 45°C (32°F to 113°F) |
| External Power Operation | AC adapter 90–260 V AC (50/60 Hz) or 12 V from a vehicle (cable with standard plug, optional) |
| Power Management | Automatic shut-down and sleep mode |
| Environmental & Certifications | |
| EMC | •ETSI EN 301 489-1 (radio) •ETSI EN 301 489-17 •EN 61000-6-2 (immunity) •EN 61000-6-3 (emission) •FCC 47 CFR Part 15 Class B (emission) |
| Humidity (Operating and Storage) | IEC 60068-2-30/24 hours, 95% relative humidity, 25–40°C (77–104°F)/2 cycles |
| Operating Temperature Range | –15°C to 50°C (5°F to 122°F) |
| Radio Spectrum | ETSI EN 300 228, FCC Part 15.249, RSS-247 Issue 2 |
| Safety | EN/UL/CSA/PSE 60950-1 |
| Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) |
| Tripod Mounting | UNC 1/4″-20 |
FLIR T530 Accessories
Calibration Target (T130337ACC)
16 GB SD Memory Card (T911975ACC)
Bluetooth Headset (T197771ACC)
Remote operation button (T131171ACC)
