Description

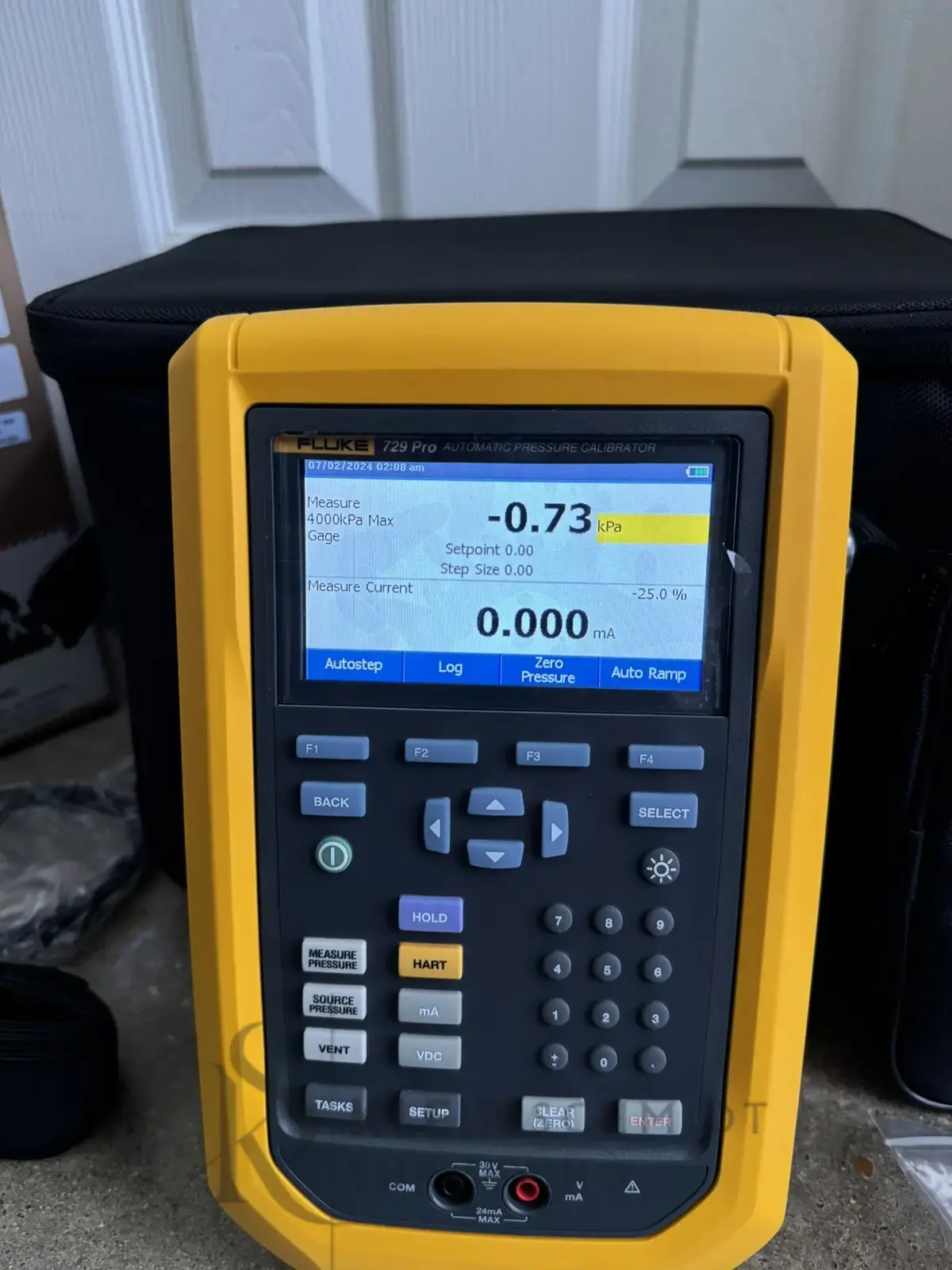

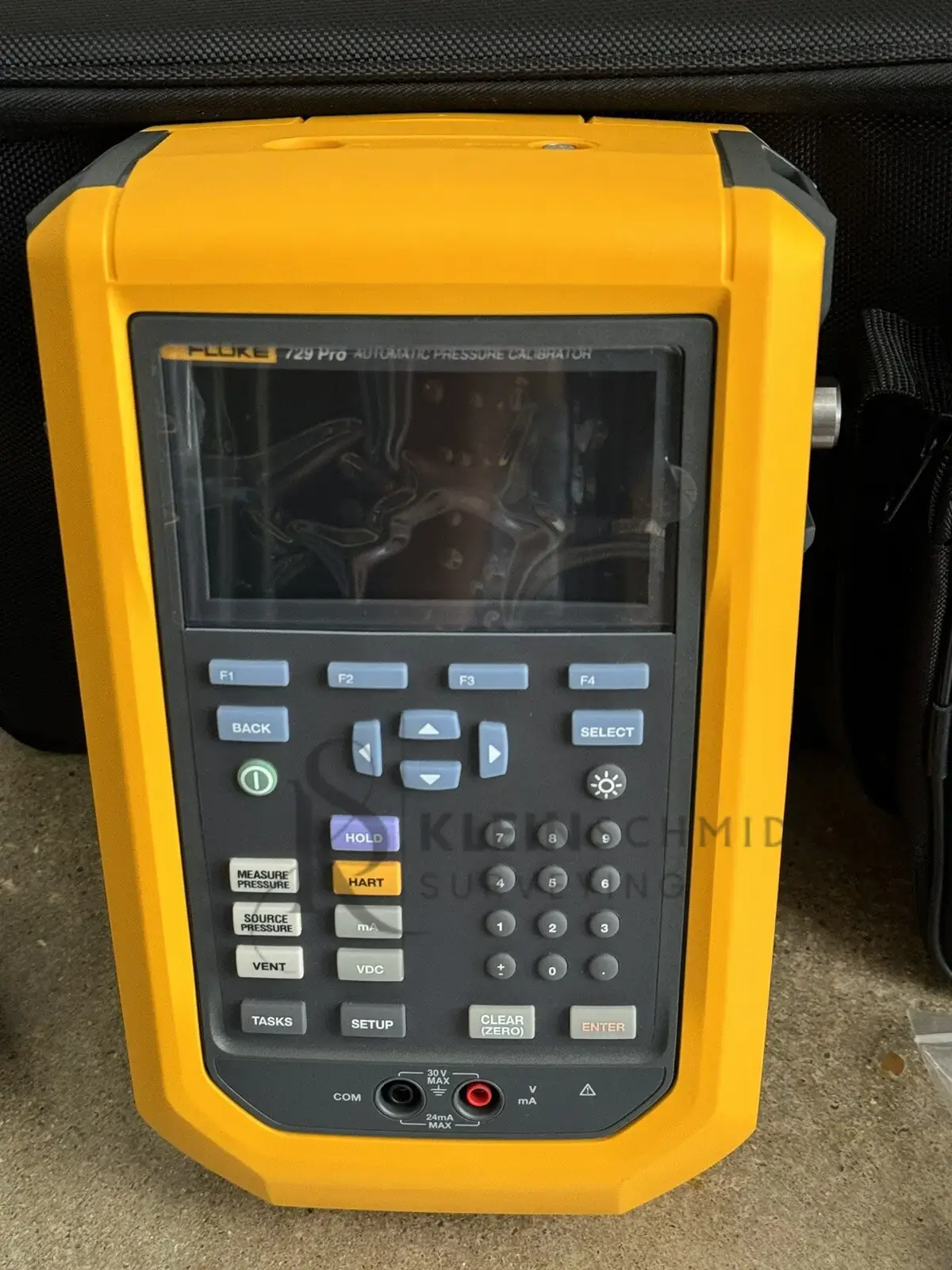

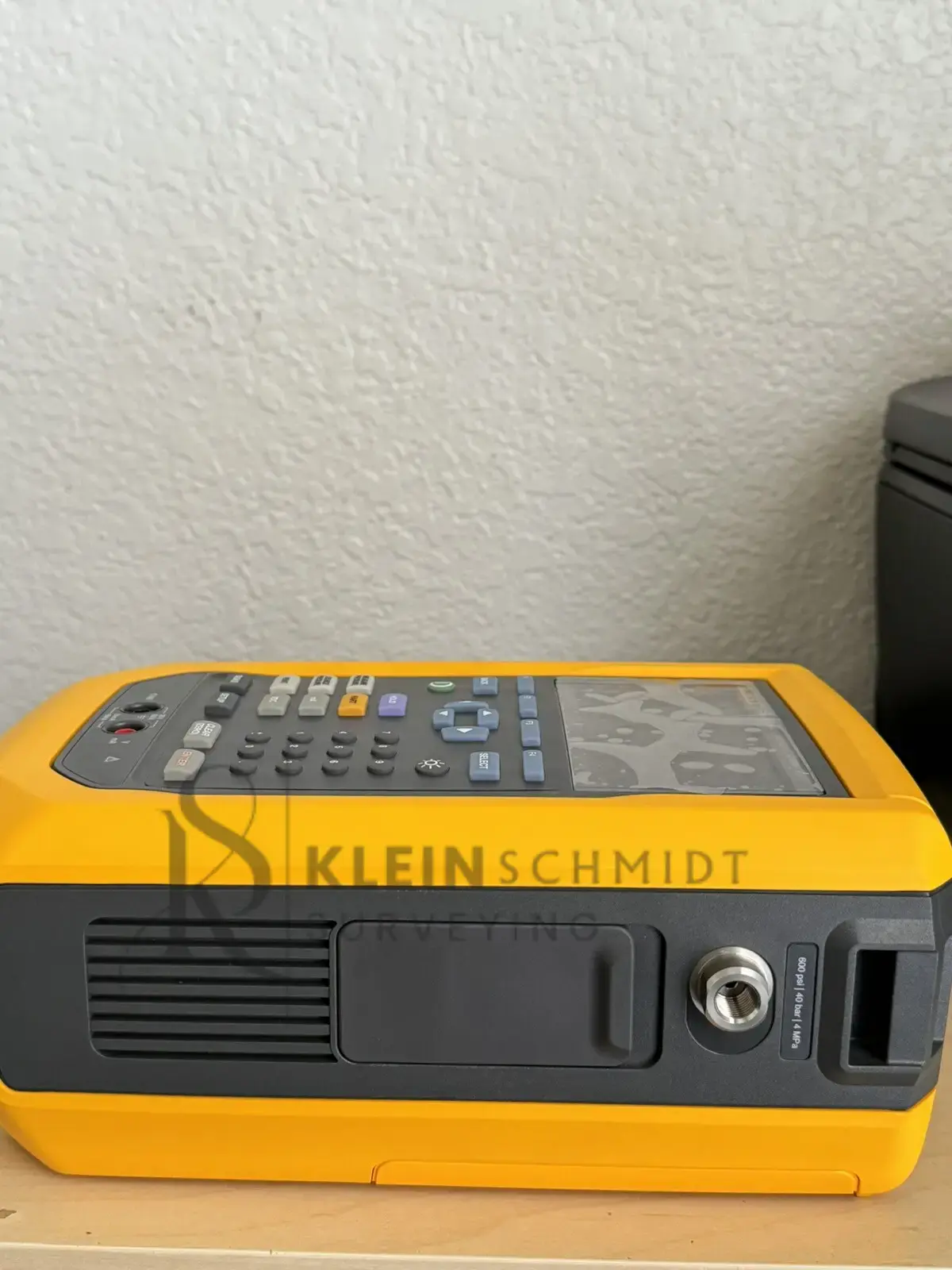

The Fluke 729 Pro Automatic Pressure Calibrator is designed to simplify the pressure calibration process and provide fast and accurate test results. Fluke 729 Pro has an internal electric pump which provides automatic pressure generation and regulation to test multiple pressure test points and document the results.
Operation is as simple as entering starting and ending test pressures, the number of test points, and the tolerance level. From there the Fluke 729 automatically documents the applied pressure, measured in mA and % error, for each test point. Out-of-tolerance test results are clearly indicated on the graphical display.
Compensate for minor leaks in hoses and test setups with automatic internal fine pressure adjustment. This eliminates the need to manually pump in order to make fine adjustments during test setups.
The built-in HART communication enables HART transmitter mA adjustments, output trim, configuration, and adjustments of applied 0% and 100% values. It can also accomplish light configuration tasks such as changing a transmitter tag, measurement units, and ranging. This calibrator is available with Fluke Connect, which allows you to perform remote monitoring through a mobile app, store pressure measurements, and log events.
Fluke 729 Features
- 3 ranges with 0.01% ±2 LSD (@ 73°F ±9°F) accuracy
- -12 to 30 psi (-0.8 to 2 bar)
- -12 to 150 psi (-0.8 to 10 bar)
- -12 to 300 psi (-0.8 to 20 bar)
- 0.02% of full scale for one year pressure specification
- 0.005% full scale minimum
- Measure, source, and simulate 4-20mA signals
- 24V loop powered
- Built-in HART communication
- Measure temperature with optional 720RTD probe
- Compatible with 700 & 750 series pressure modules
- IP54 ingress protection rated & 3ft (1m) drop tested
- 3-year warranty

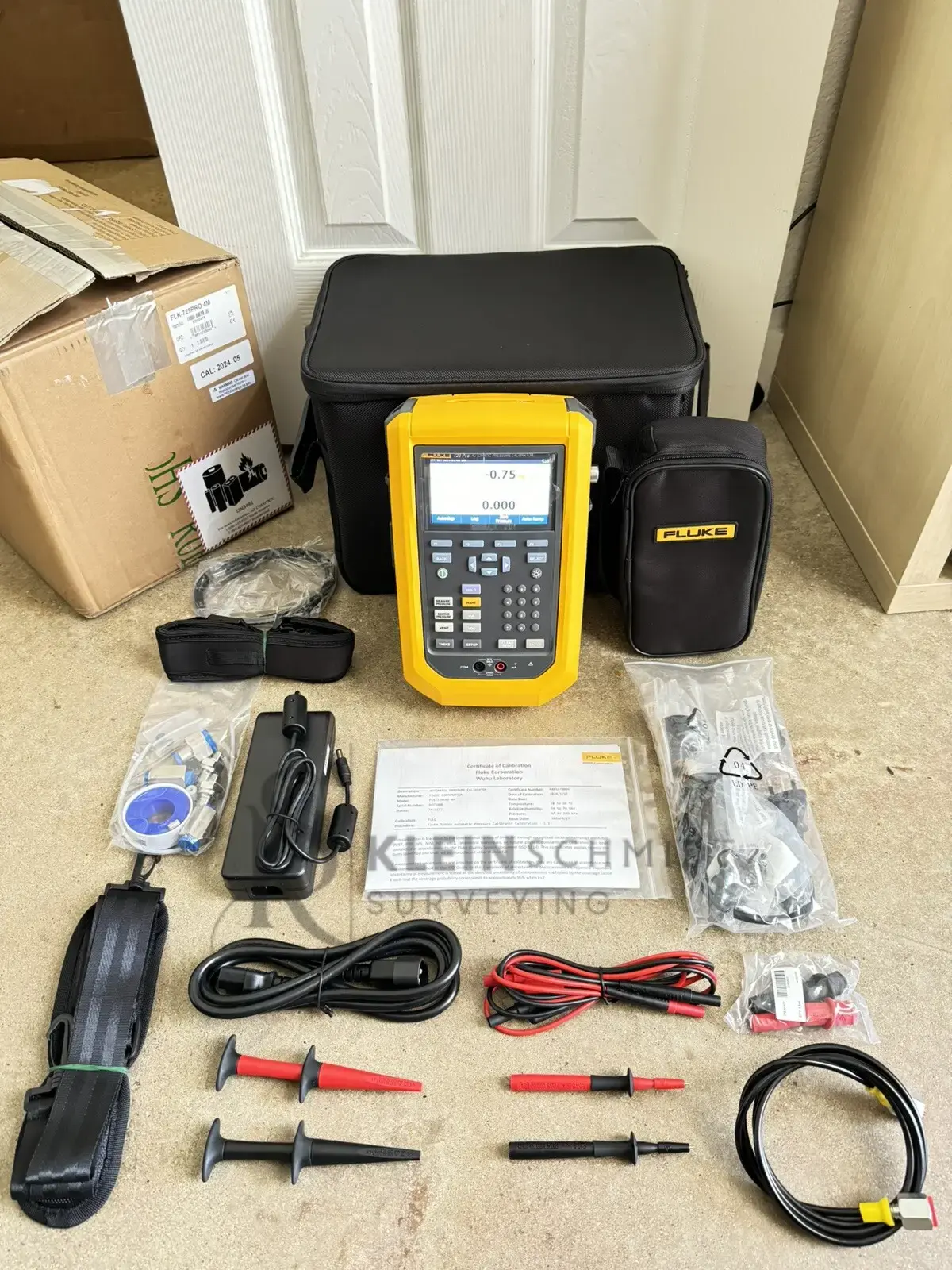

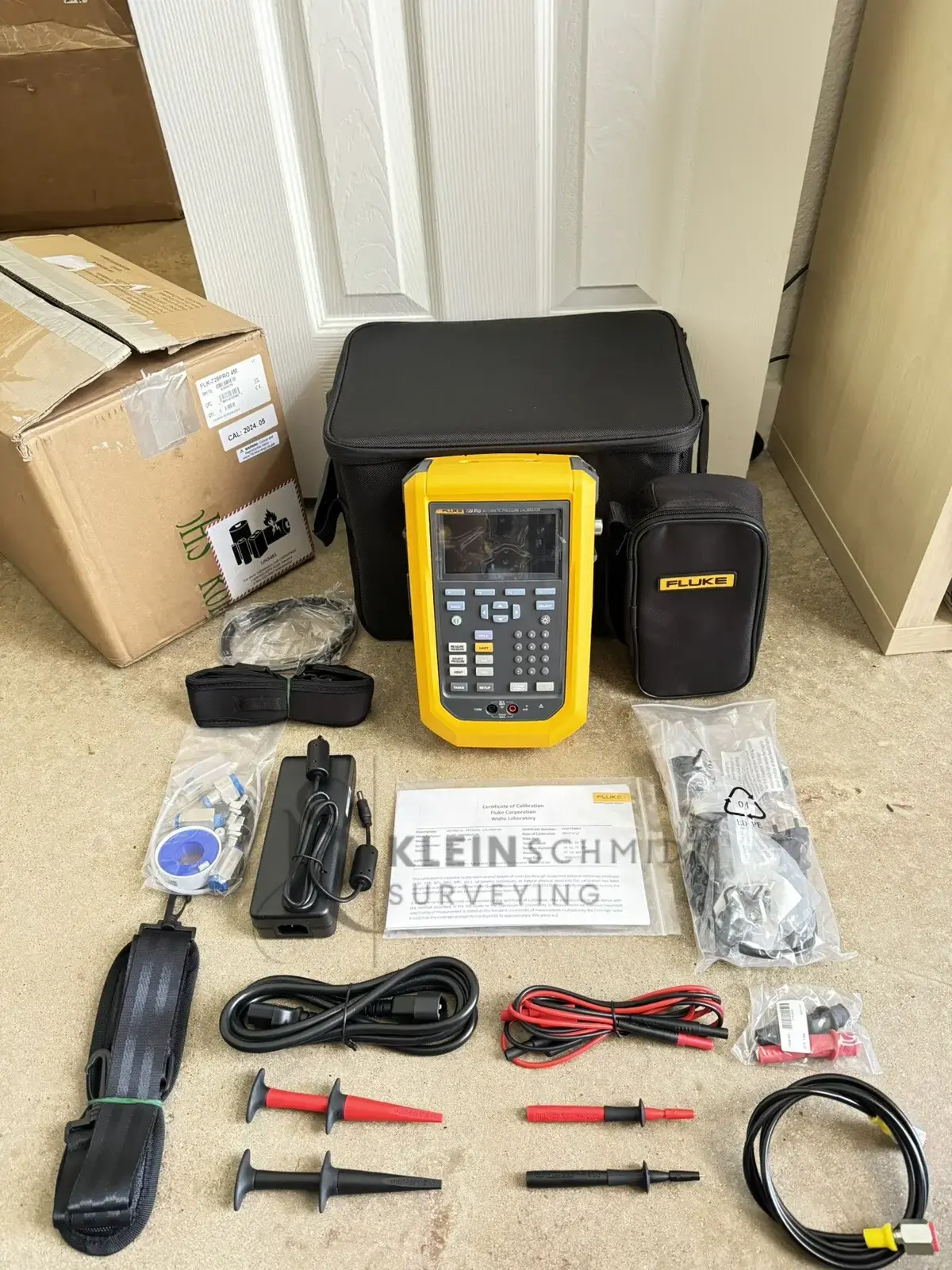

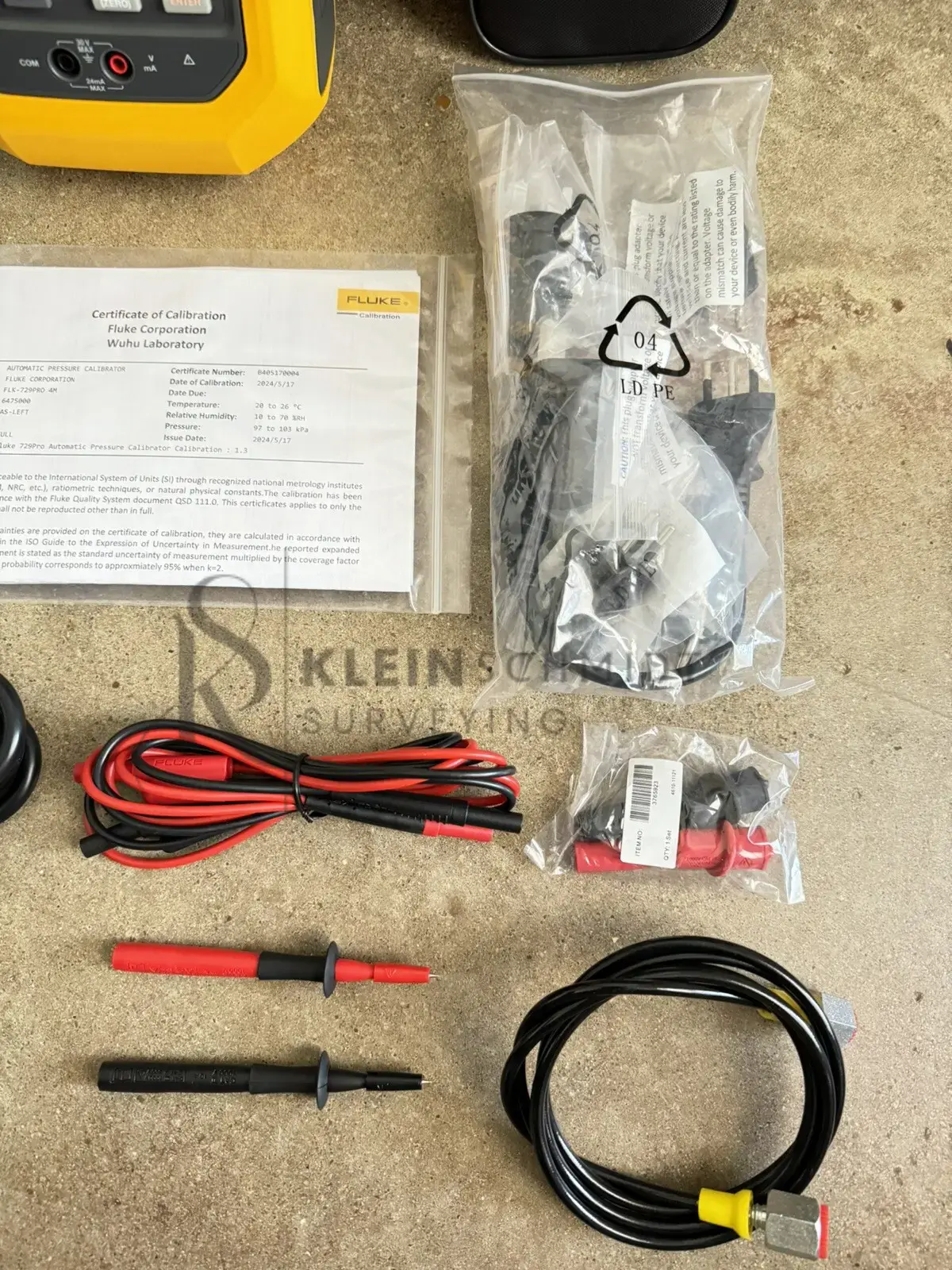

Fluke 729 include

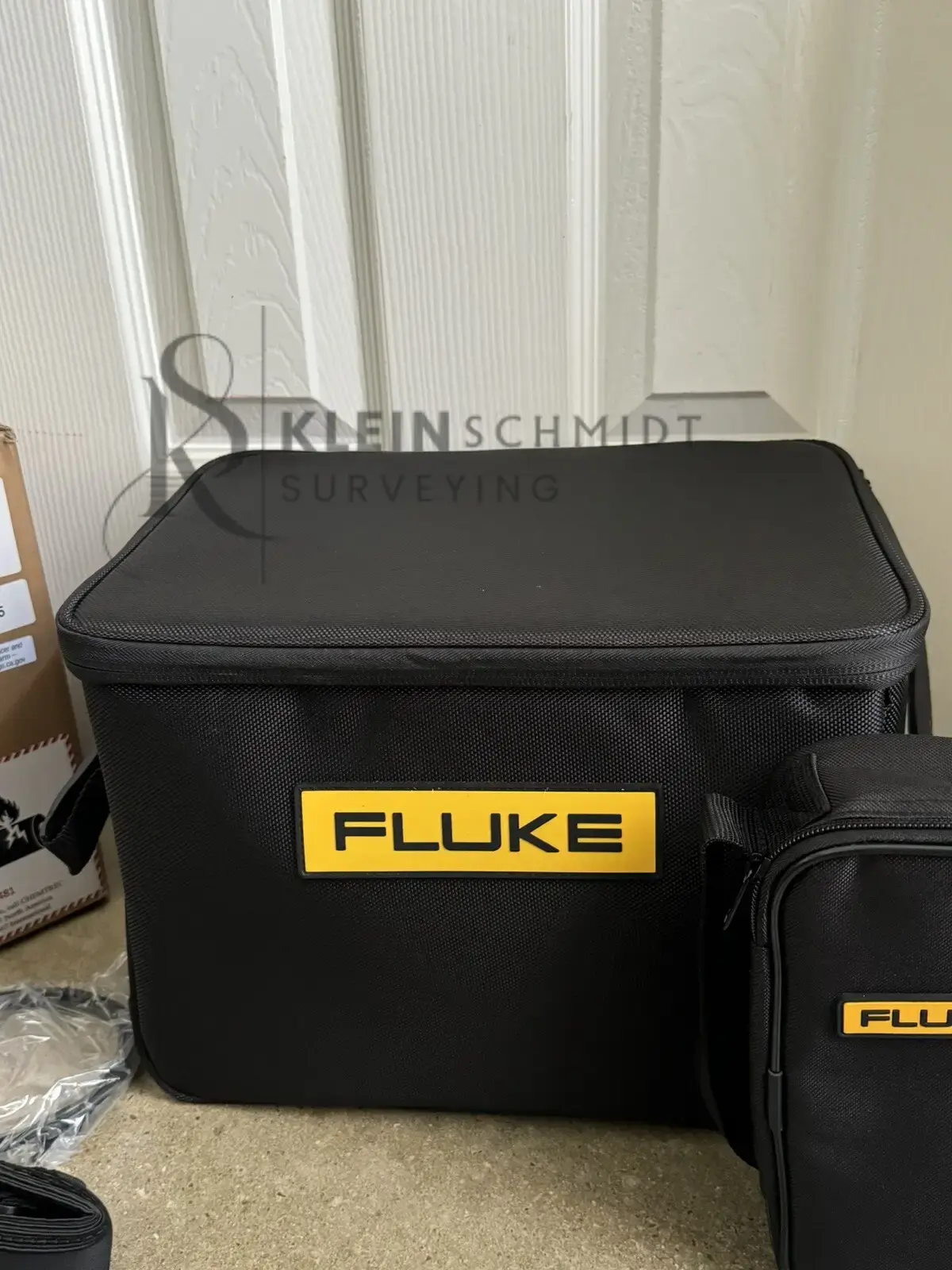

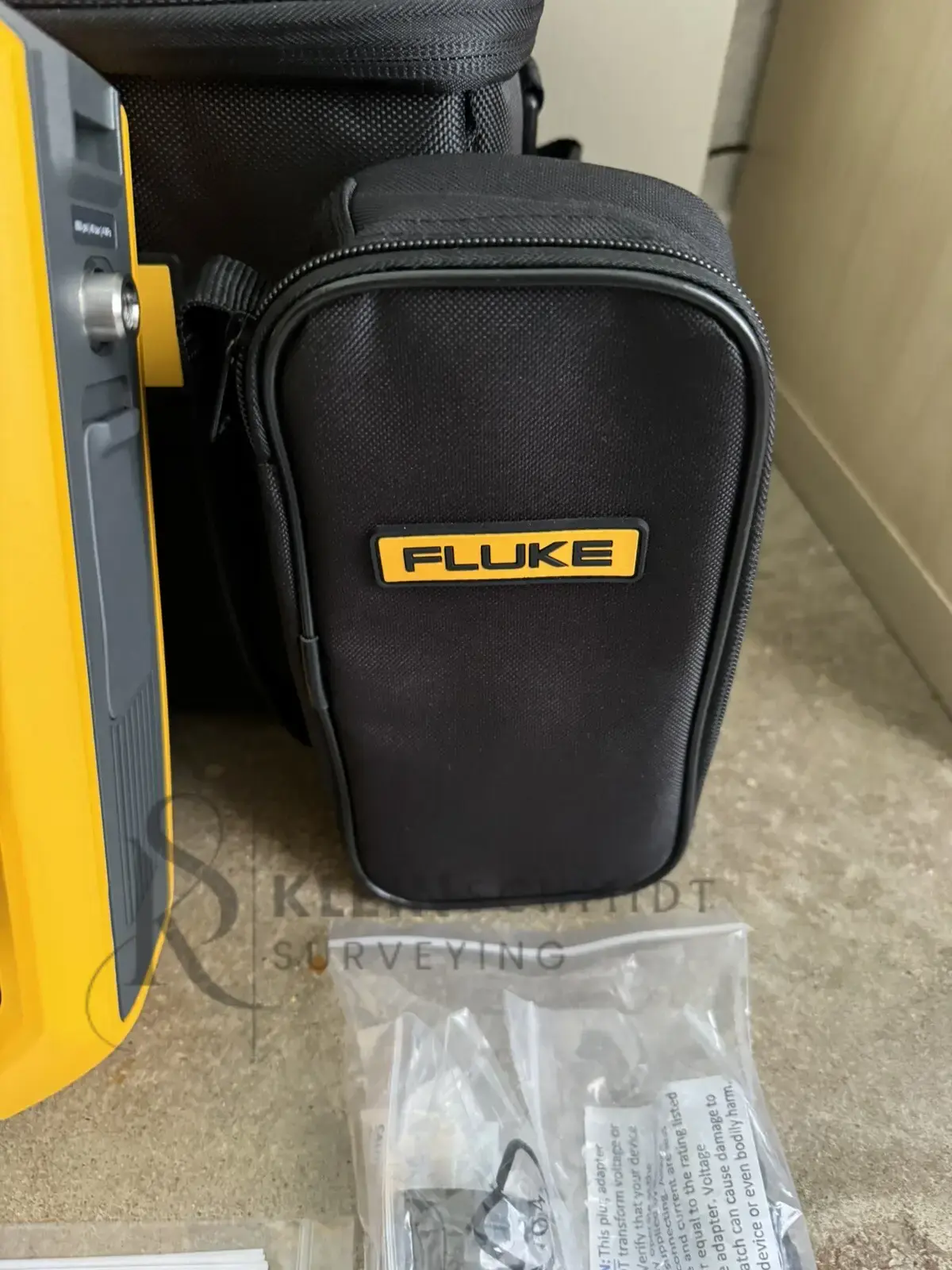

- Soft case

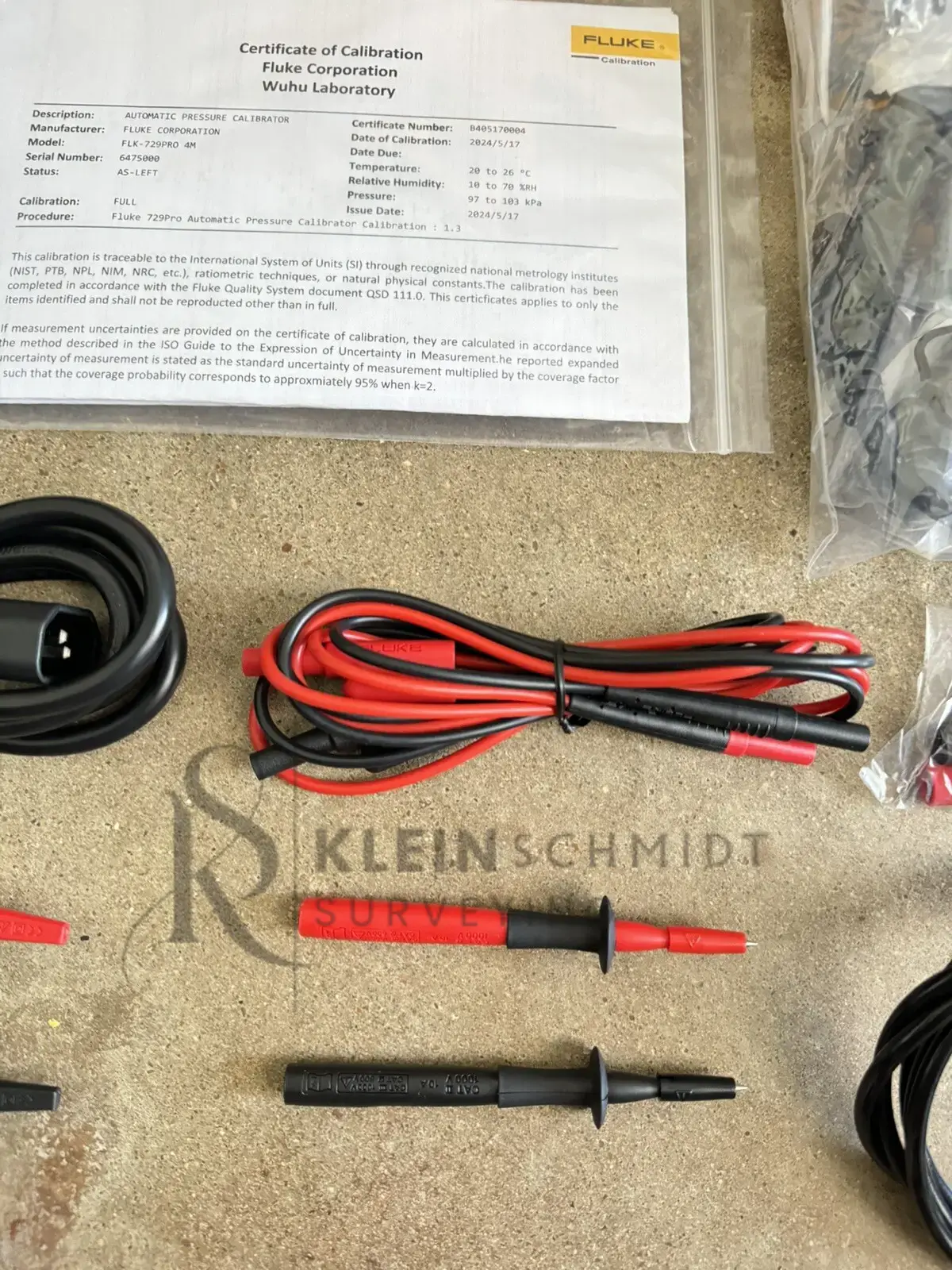

- Stackable test leads
- AC280 hook clips
- Alligator clips
- Test probes
- Magnetic hanger kit

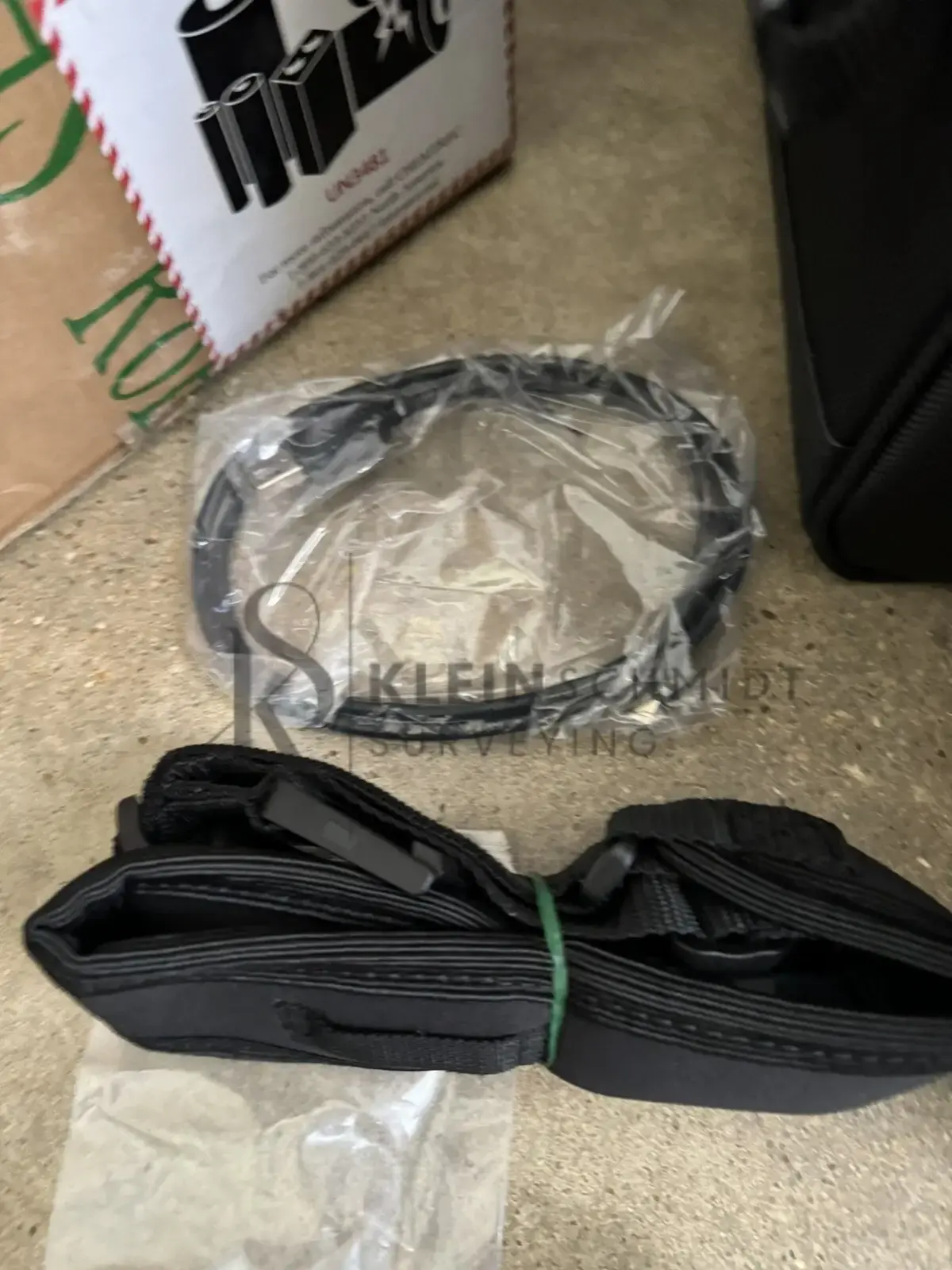

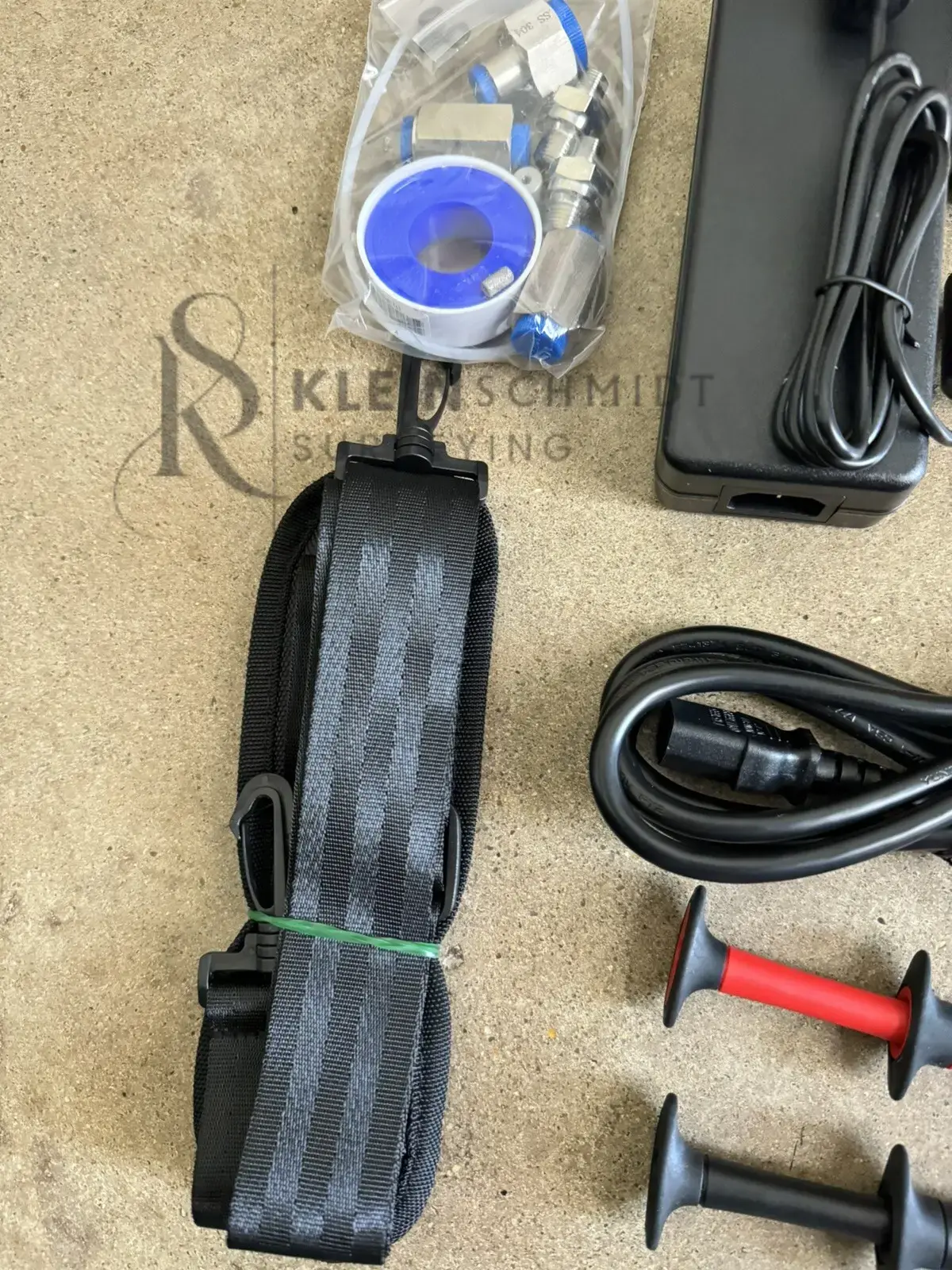

- Carrying strap
- Quick start guide
- Safety sheet

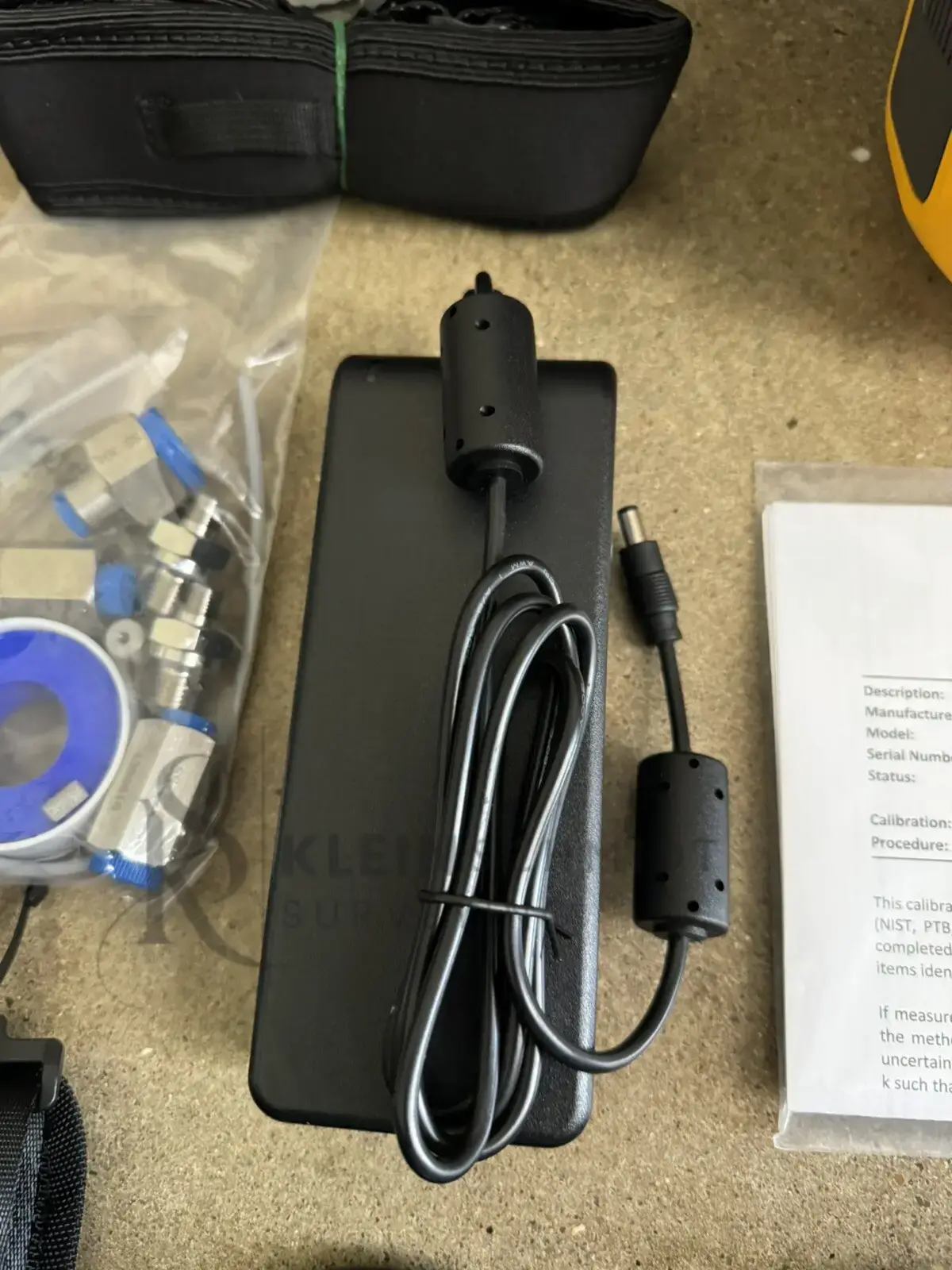

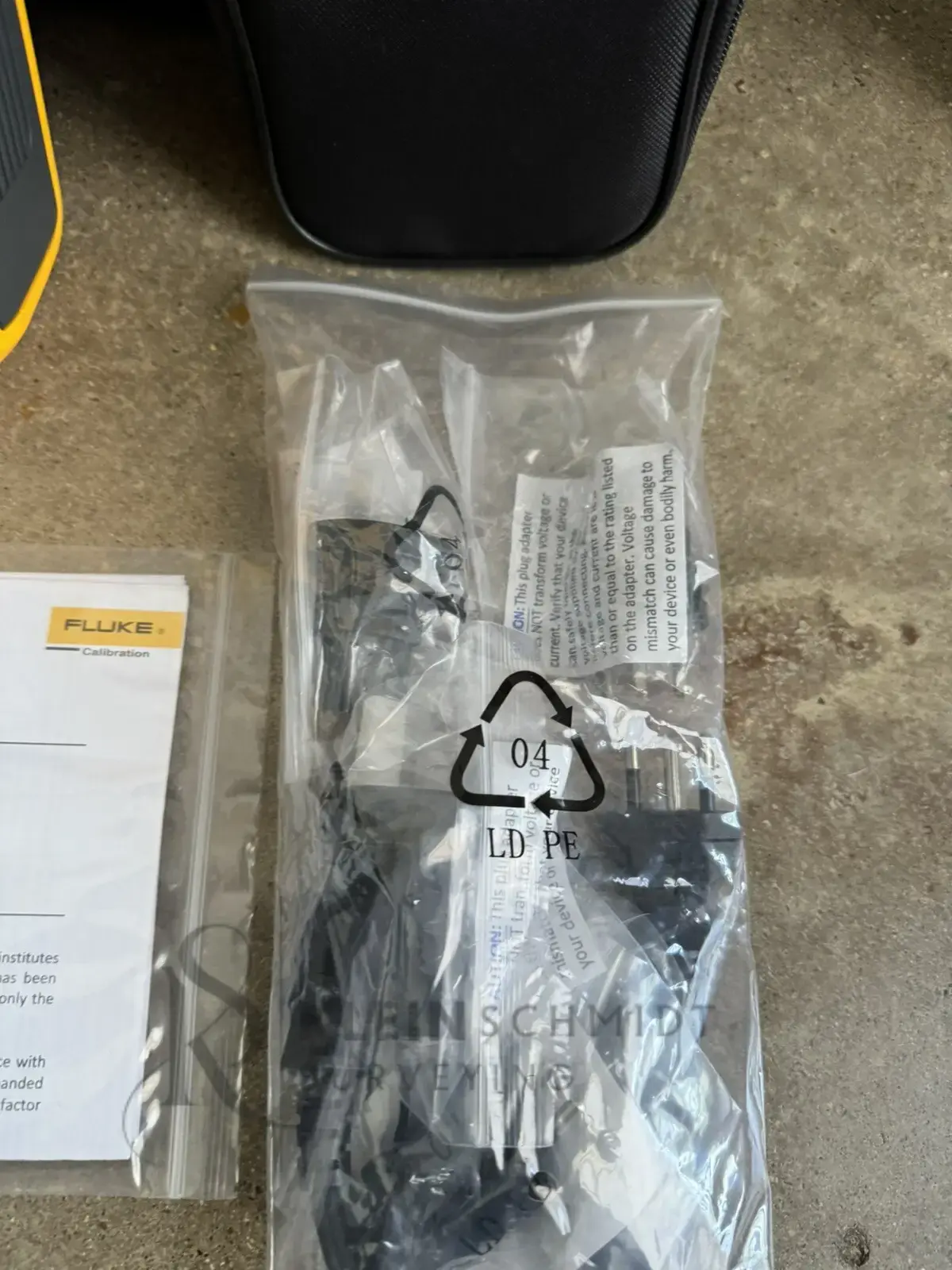

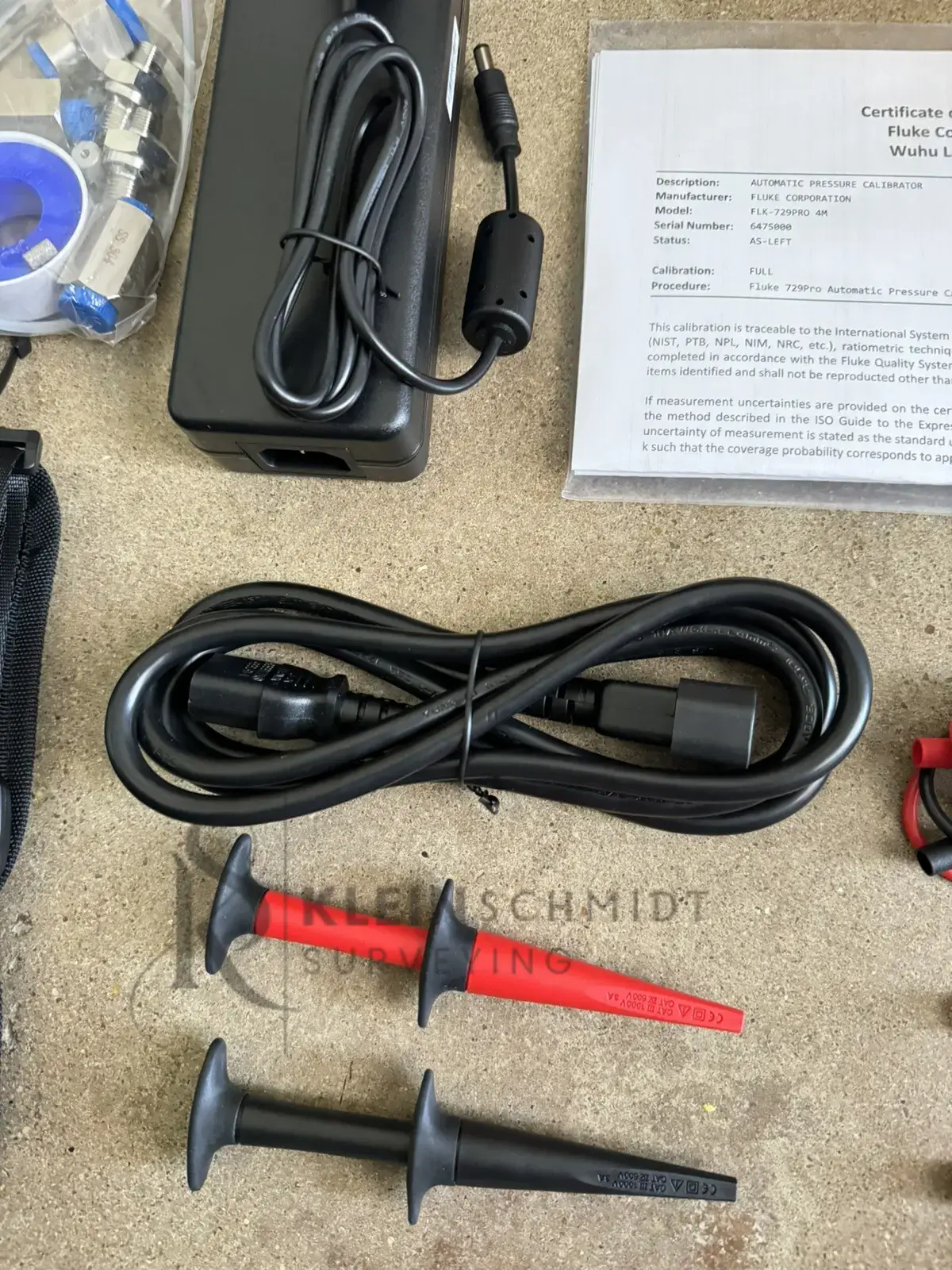

- Power supply
- Rechargeable battery (installed)

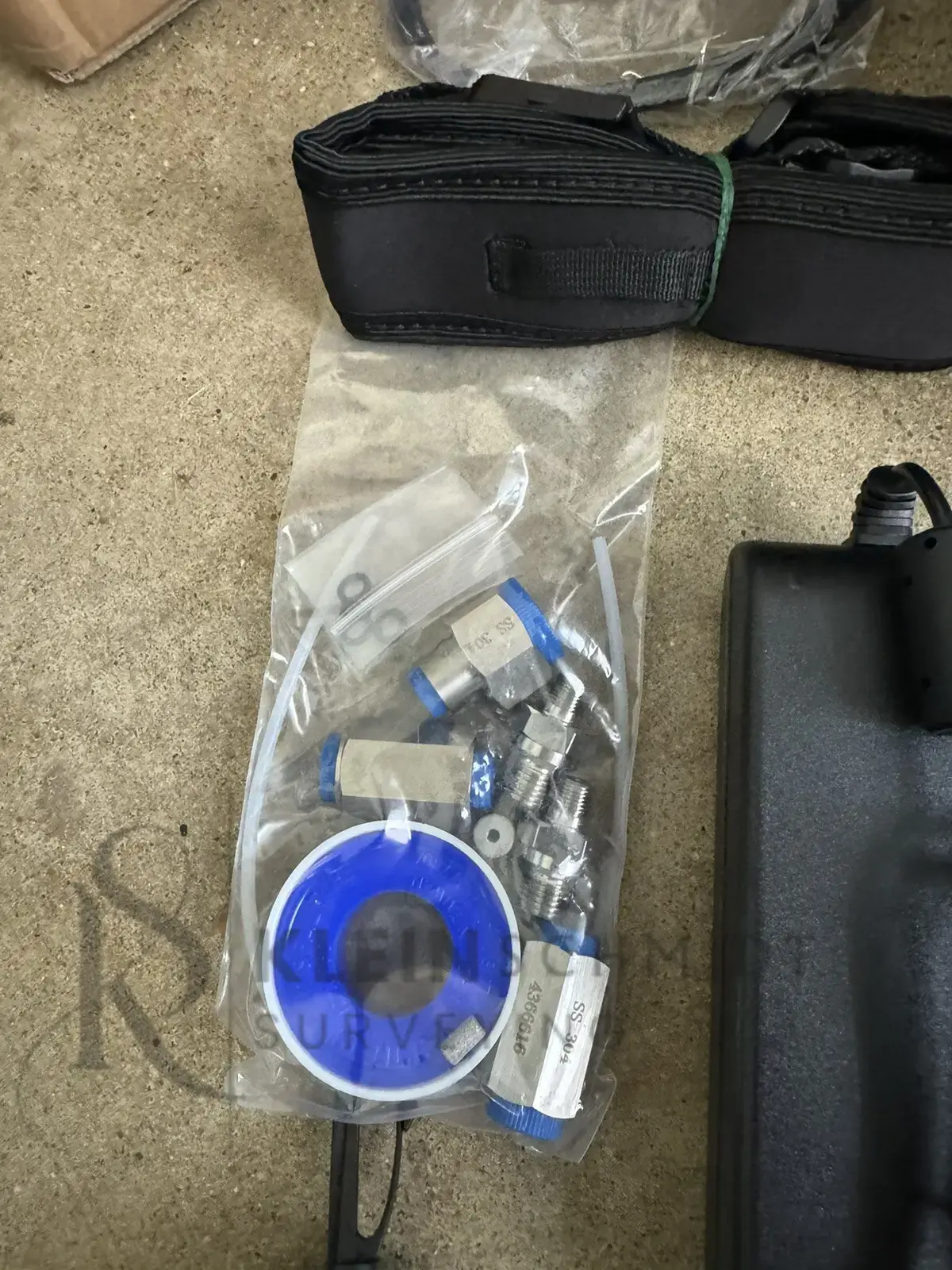

- Hose kit with push fit adapters
- Hanging clip
- USB cable
- 1/8in FNPT to 1/4in FNPT adapter
- 1/8in FNPT to F-M20 adapter
- 1/8in FNPT to 1/4in FBSP adapter
- PTFE tape
- 2 sintered filters
- Water trap drain
- Valve tuning hoses

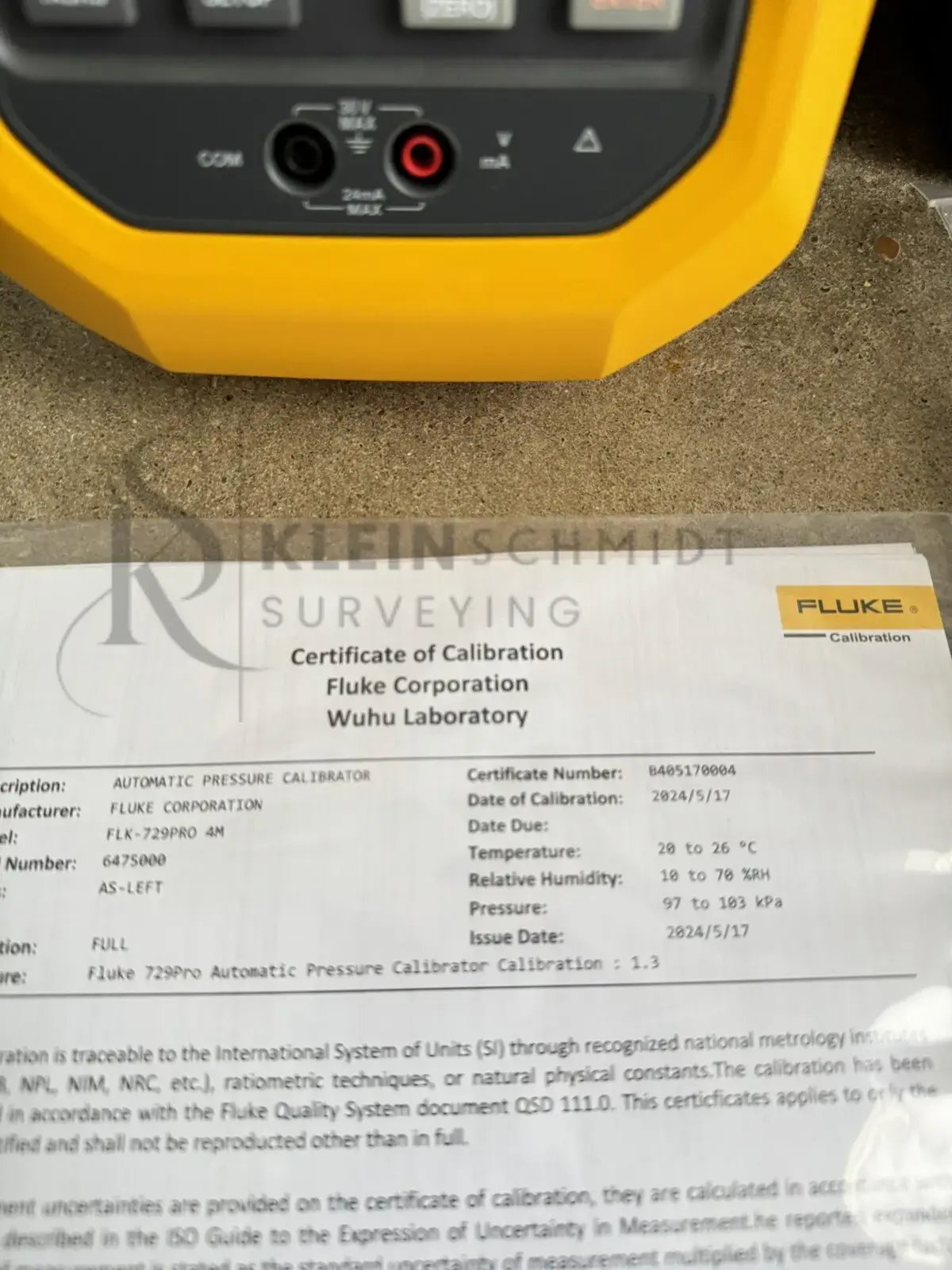

- NIST Traceable Certificate of Calibration
