Description

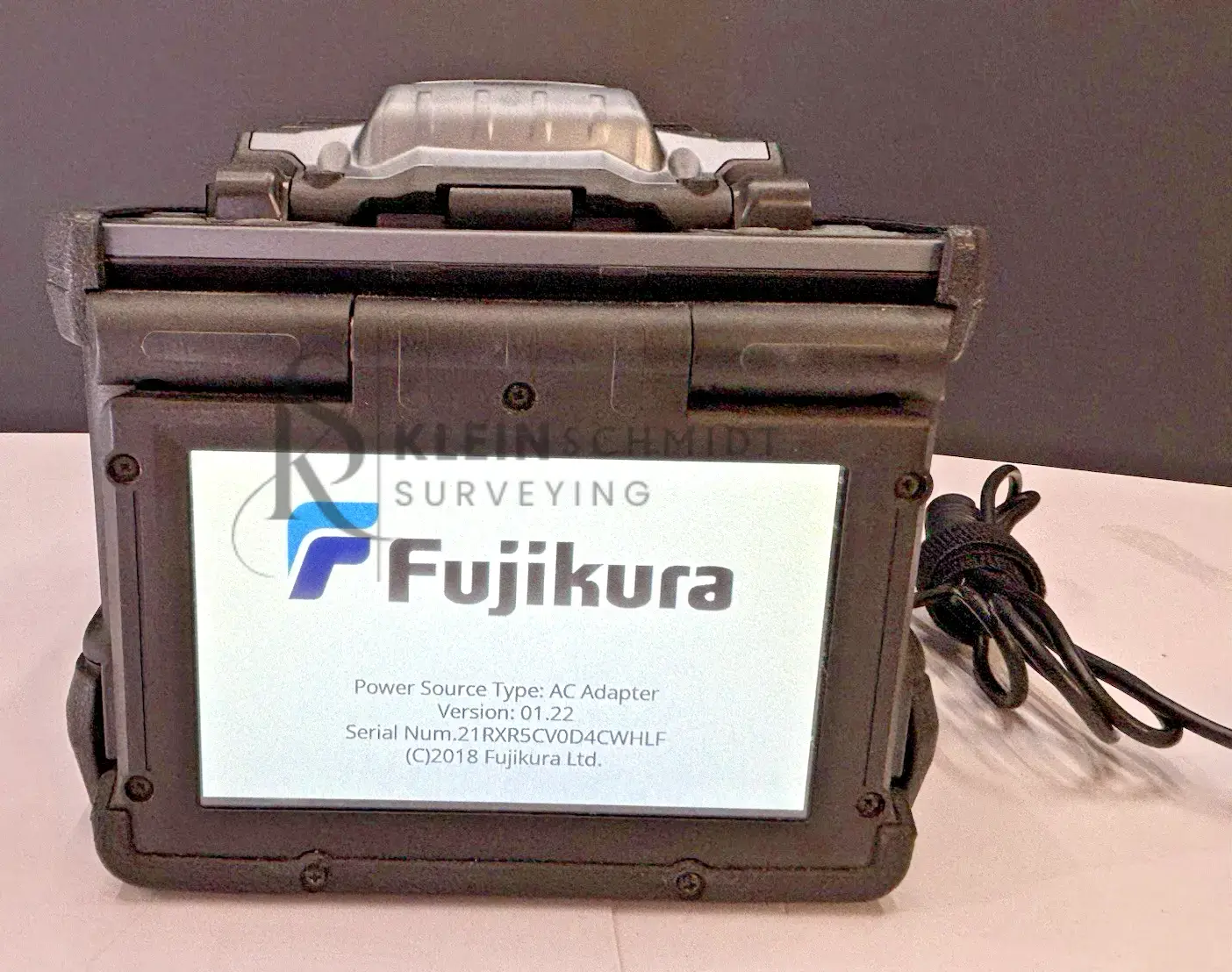

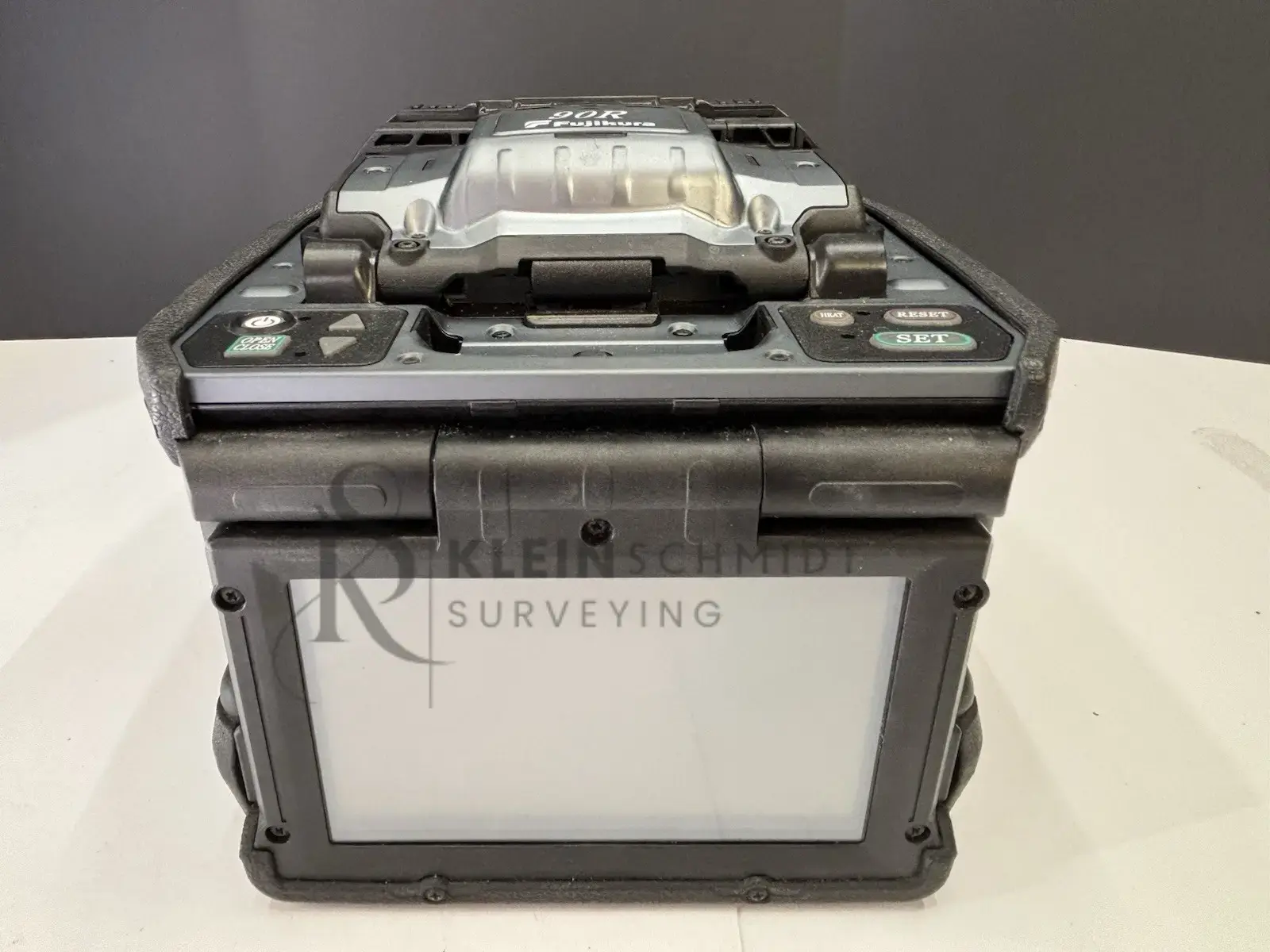

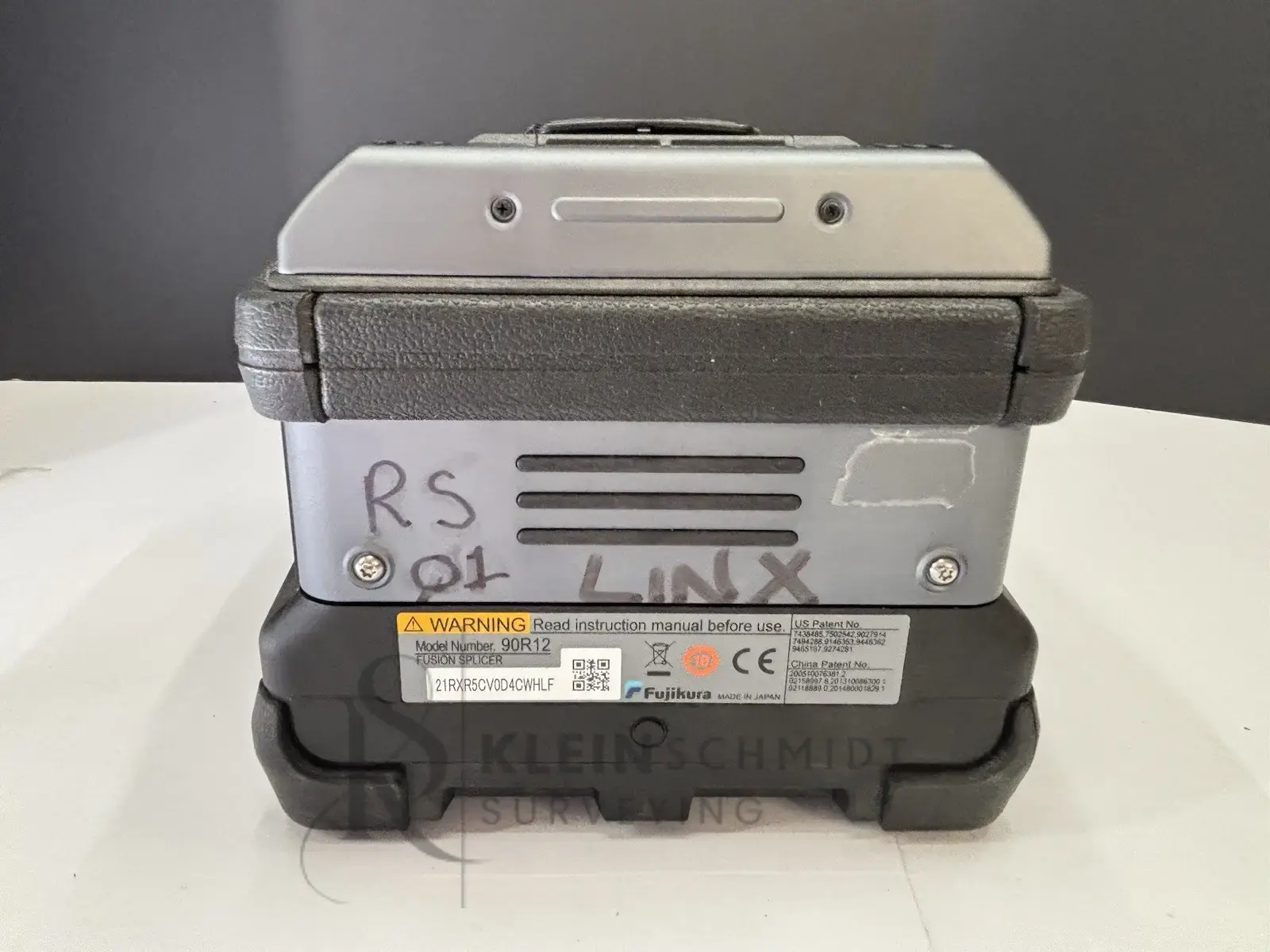

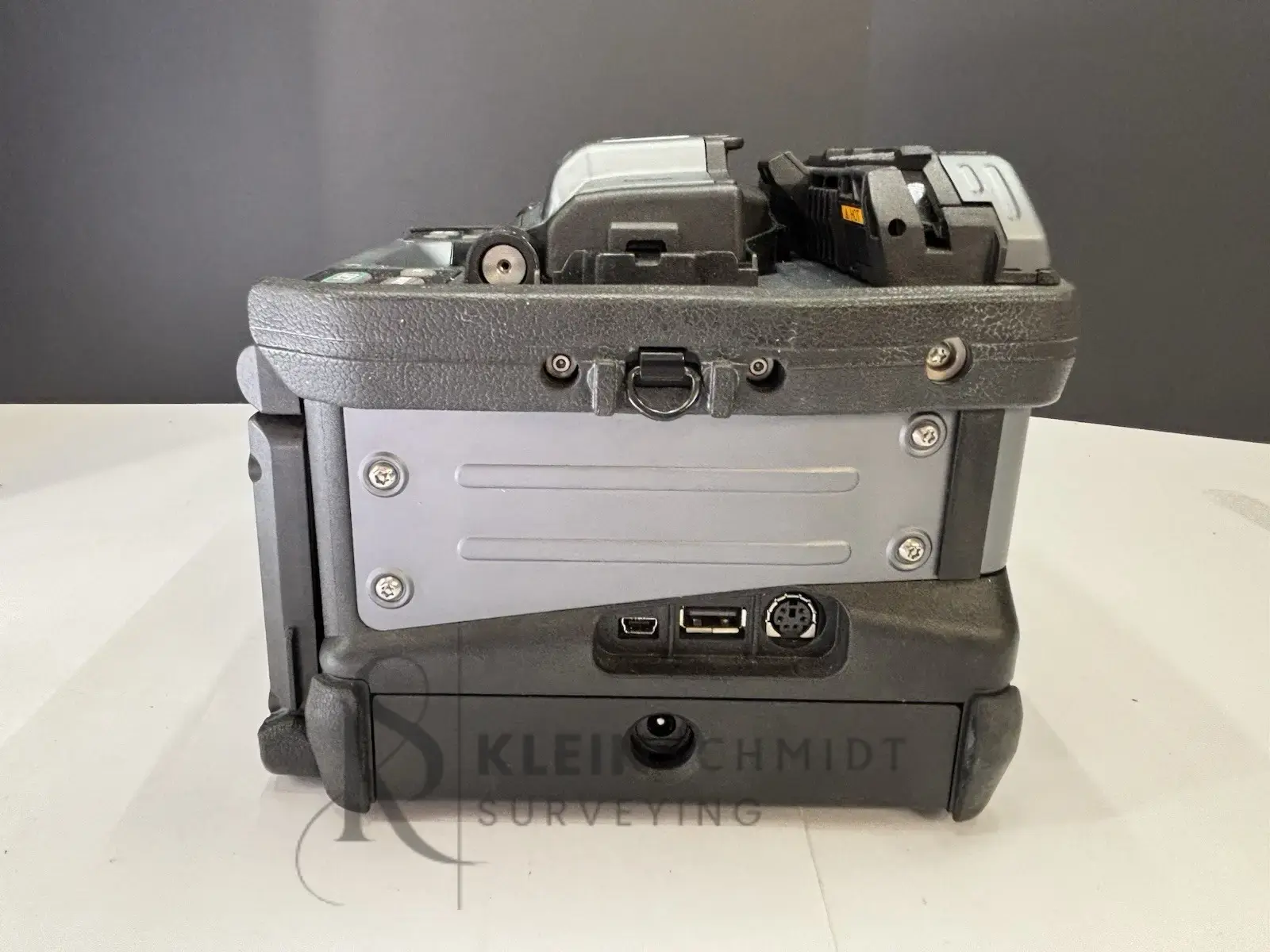

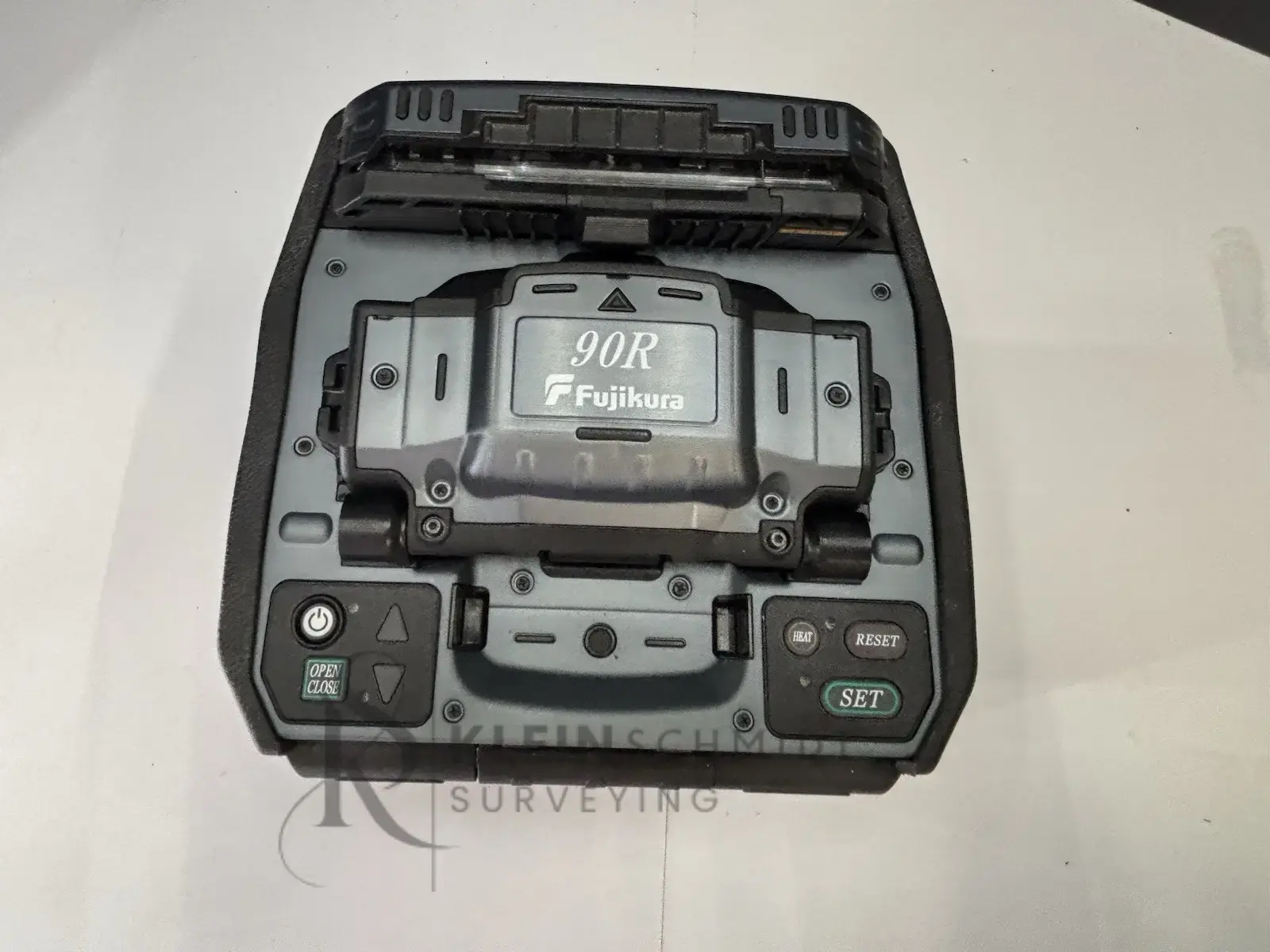

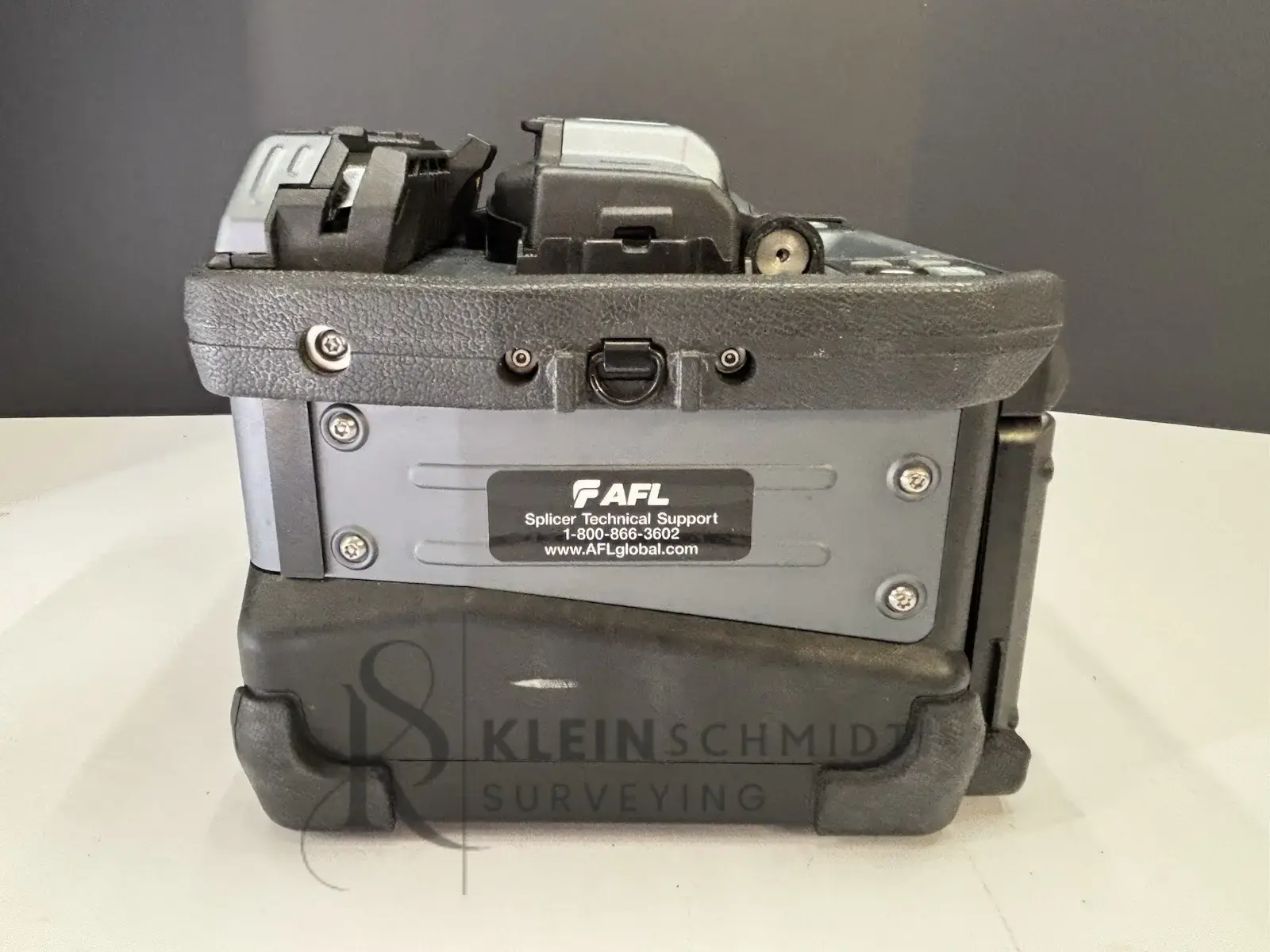

The Fujikura 90R SM MM Ribbon Fiber Fusion Splicer is the mass fusion splicer workhorse of the splicing world. As data demand continues to rise, the solution to handle the increased traffic is to increase fiber counts. As a result, fiber counts being utilized in enterprise data centers, campus, and metro networks have grown enough to make single fiber splicing too costly and timely. High density cabling made possible by SpiderWeb Ribbon® (SWR) and others like it are spurring ribbon splicing activity in places that have traditionally used loose fiber.
The Fujikura 90R is the answer to these changes in splicing demand. With automated splice start, tube heater, wind protector, cleave tracking, and blade rotations for up to 2 cleavers at a time, this splicer frees up operator time for other fiber preparation steps. New to the 90R, you can keep your splicer in the field longer with field replaceable V-grooves. When V-grooves can no longer be cleaned after extended use, or are accidentally damaged, you can resume splicing in minutes by installing the spare set included with your 90R kit.
Fujikura 90R Features

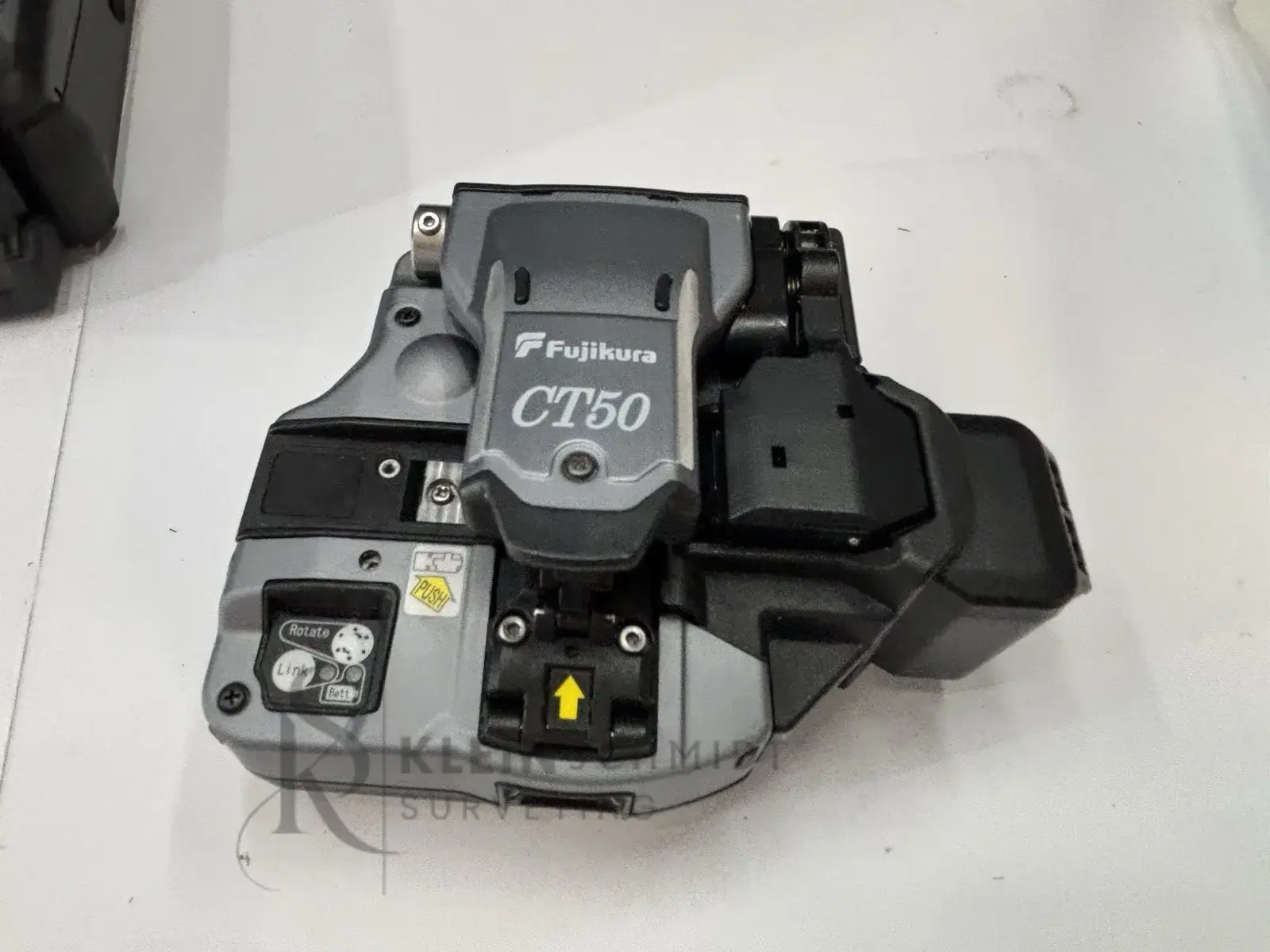

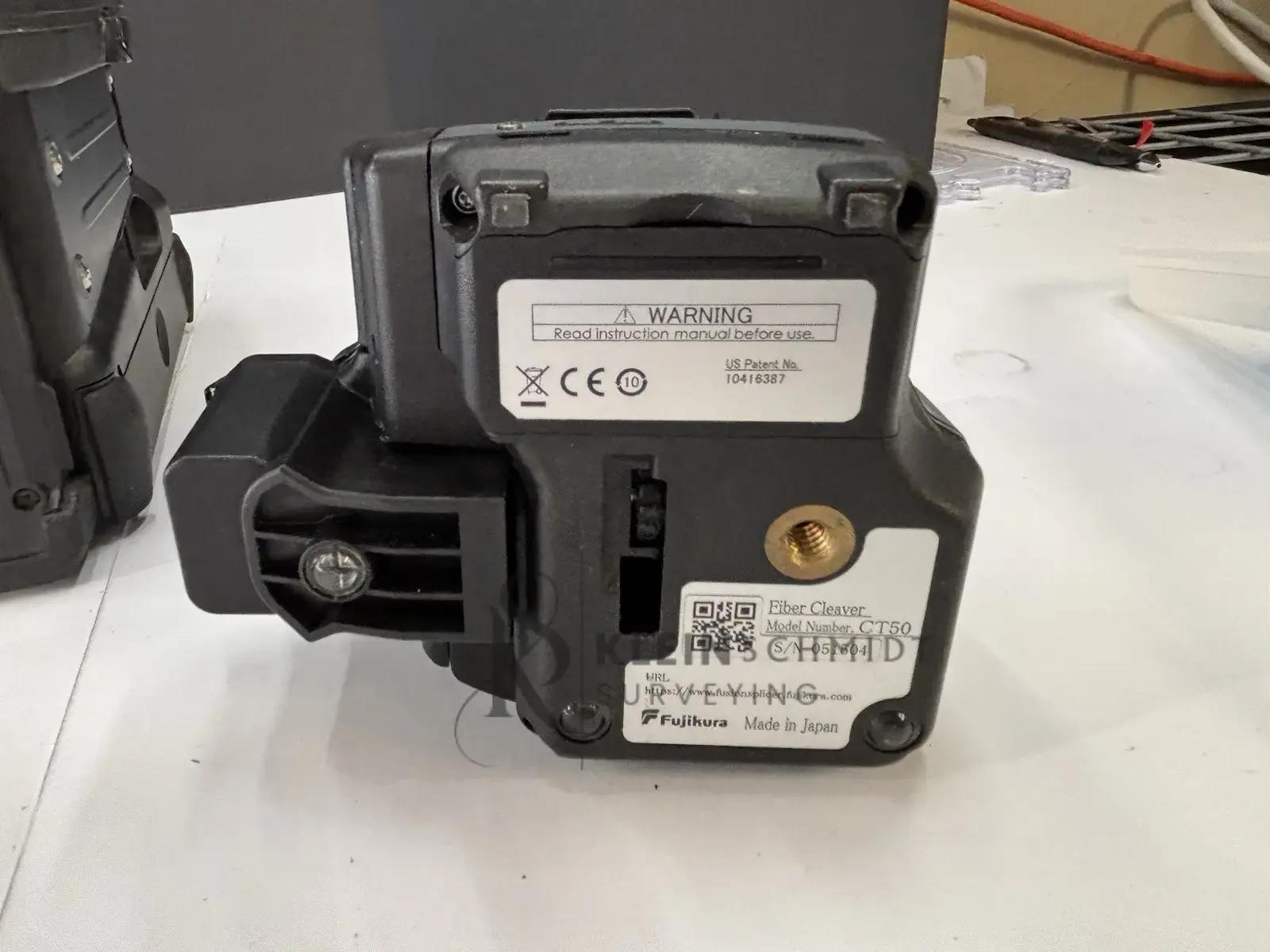

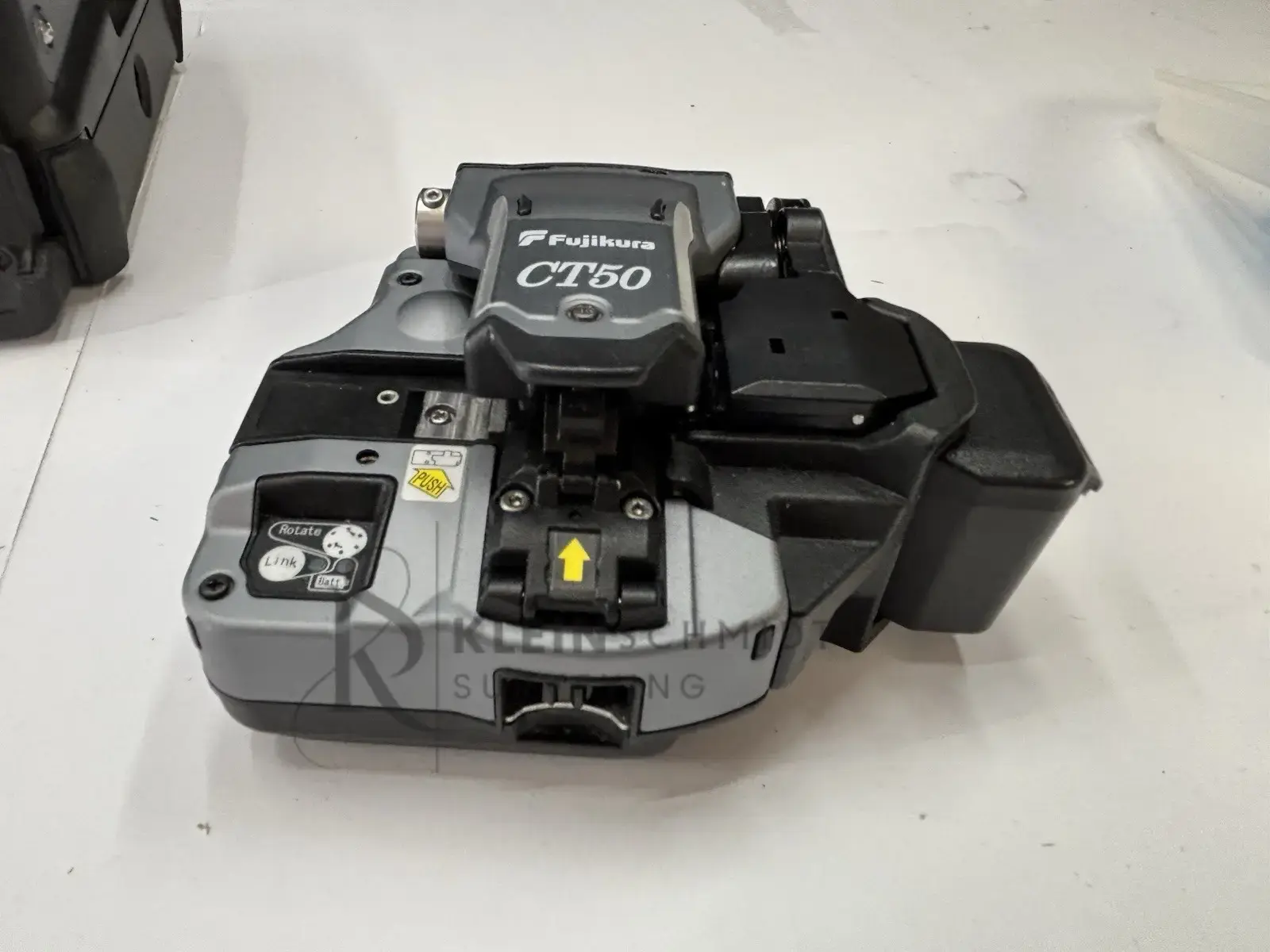

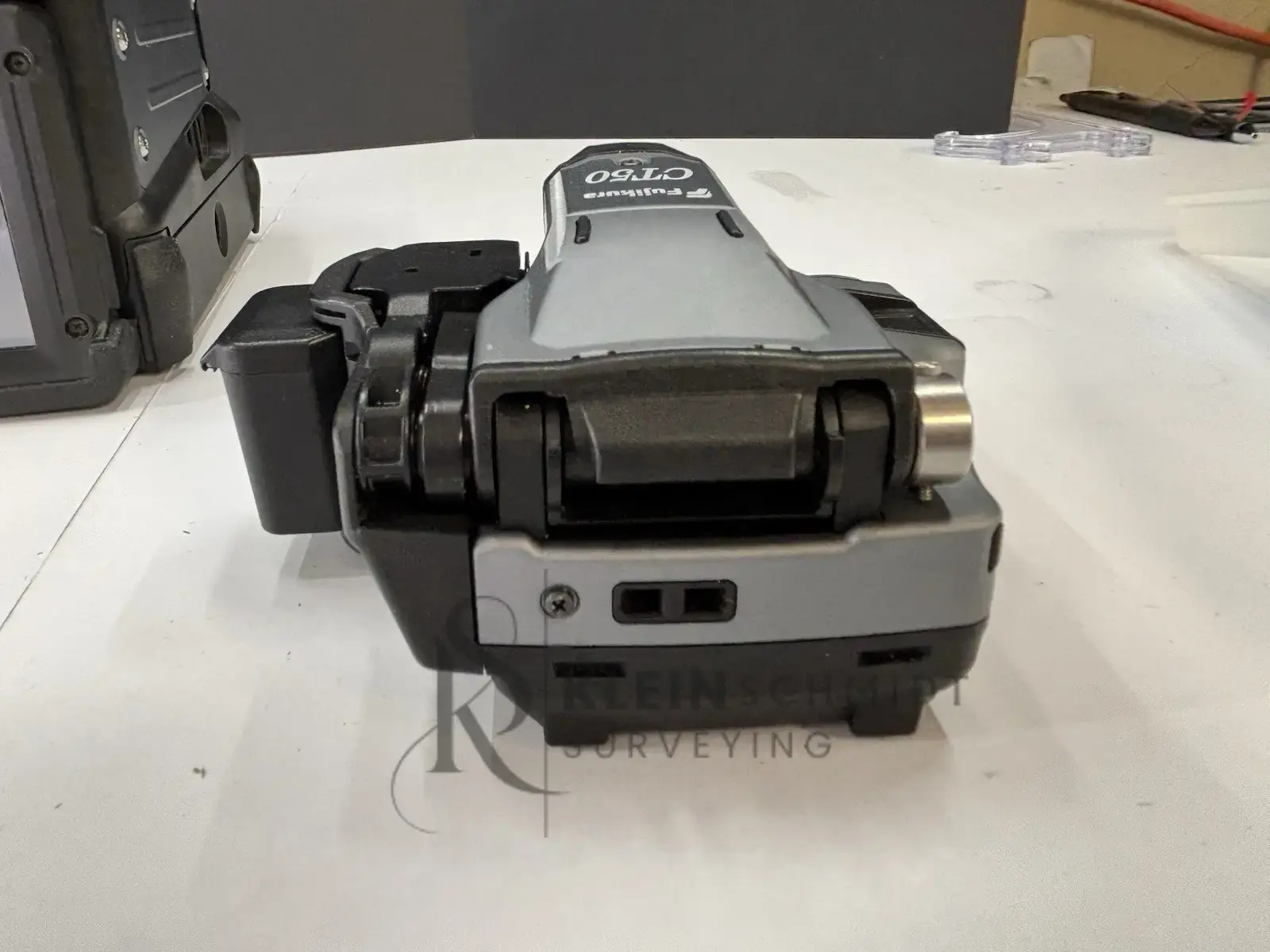

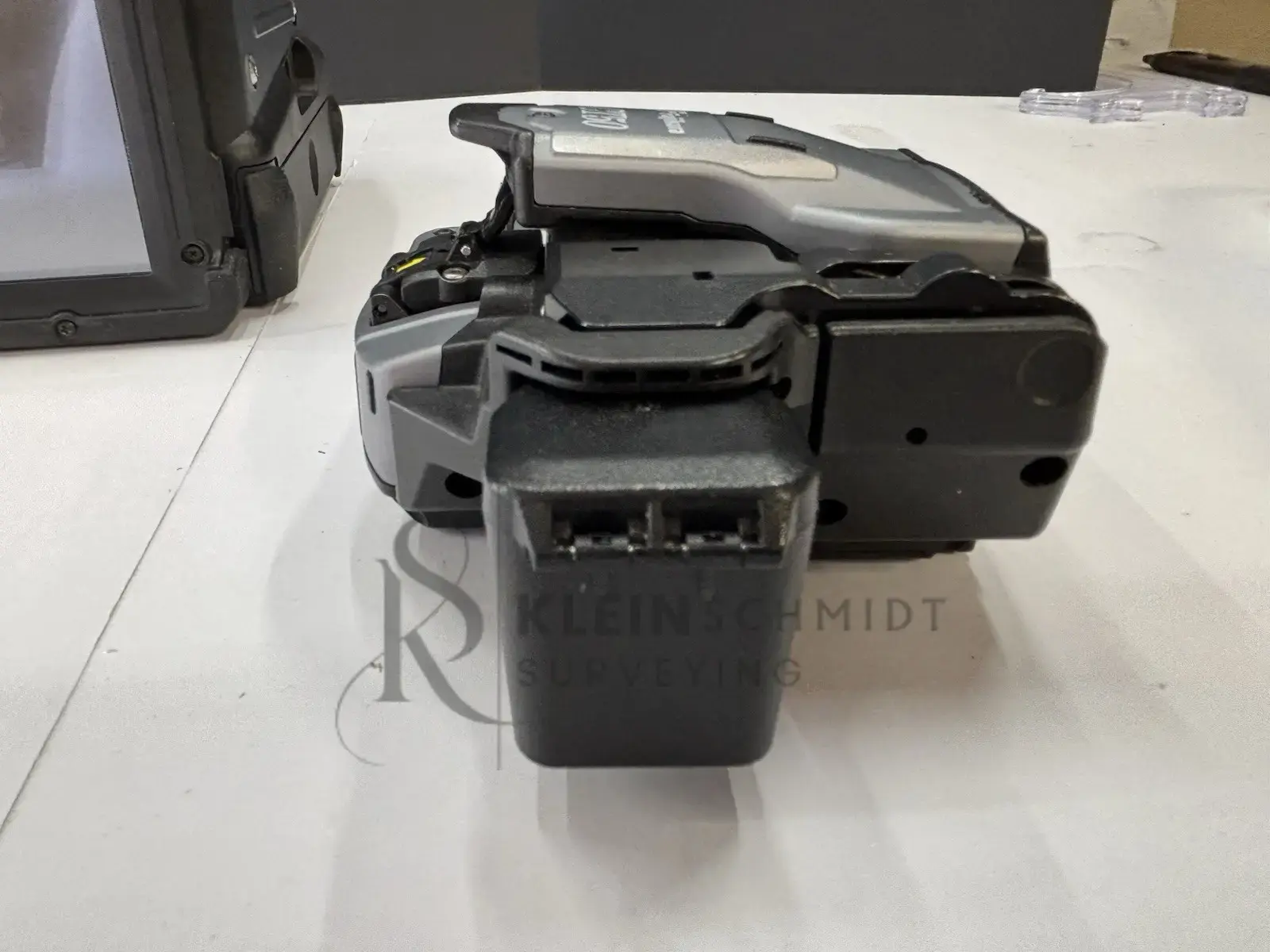

* Cleaver tracking and upkeep with wireless communication
* Automated wind protector, tube heater and splice operation

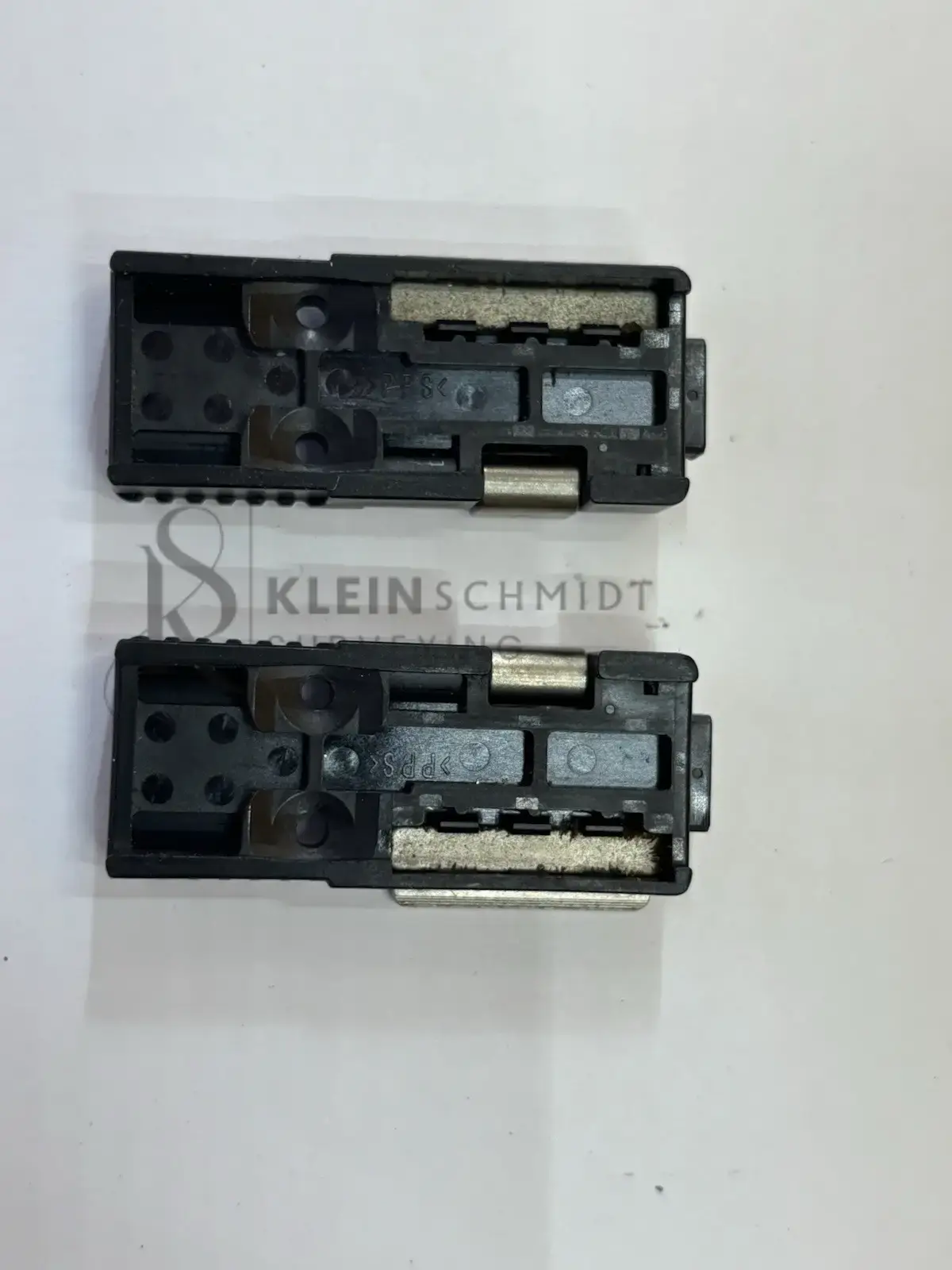

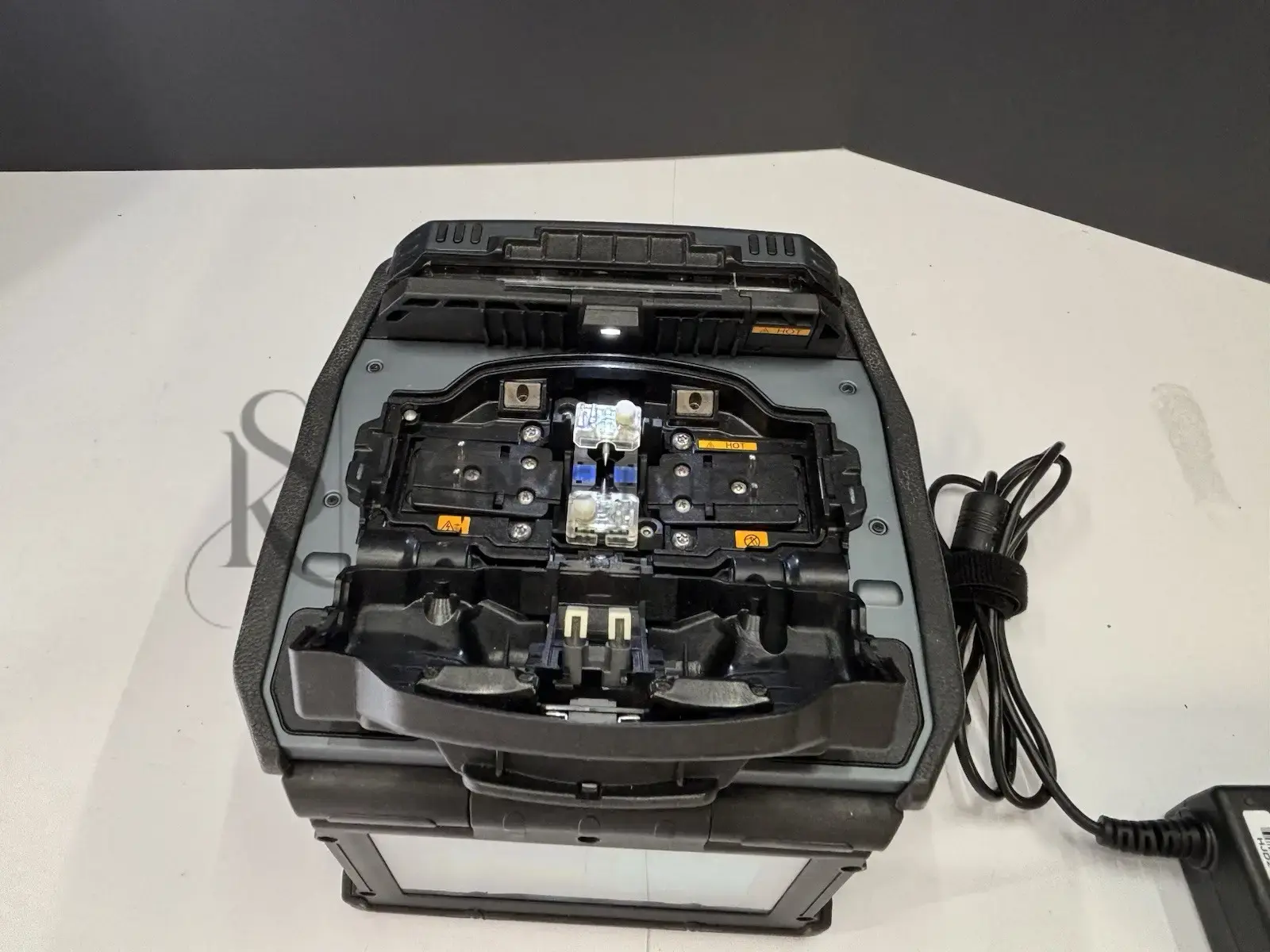

* User replaceable v-grooves

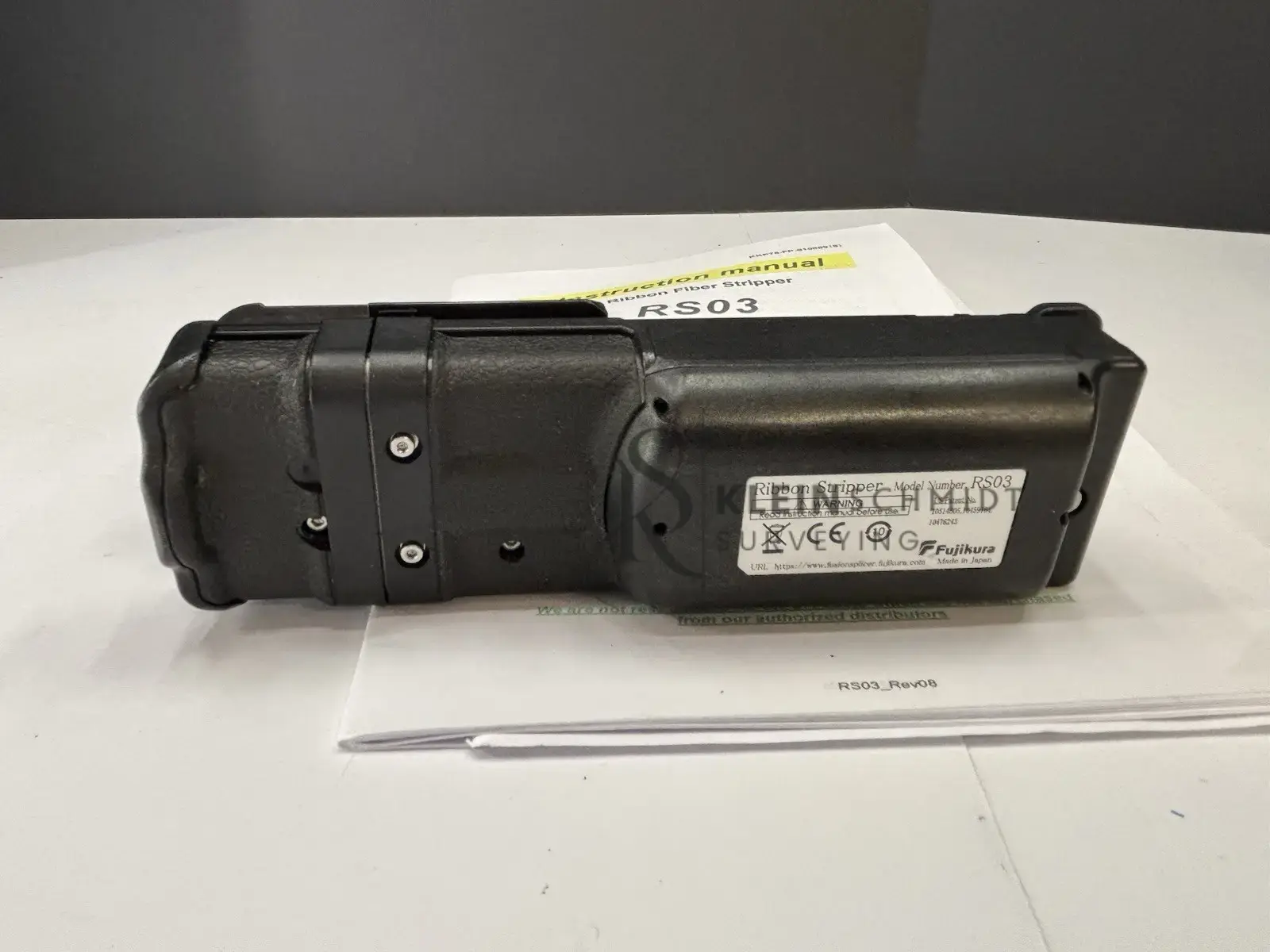

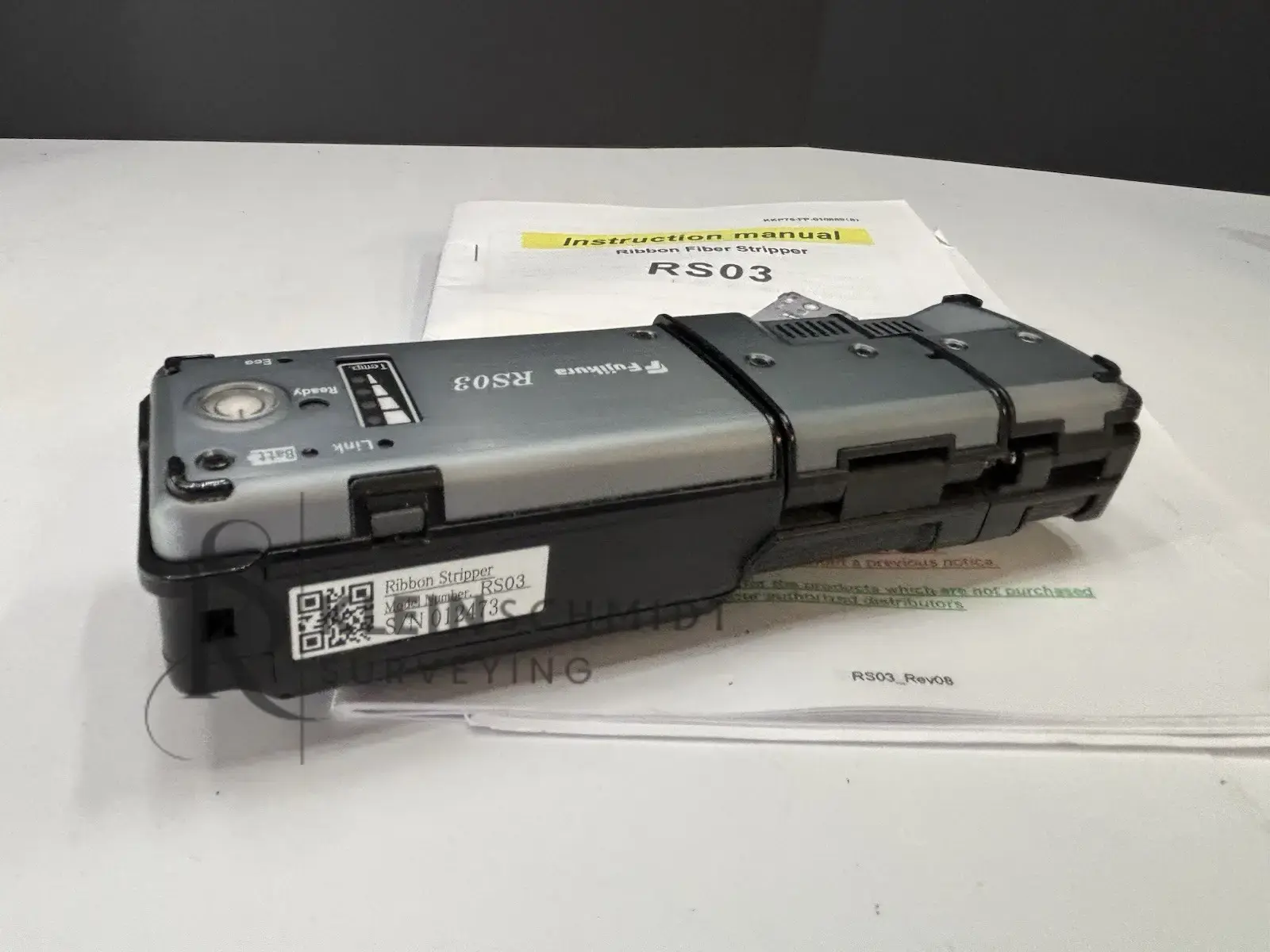

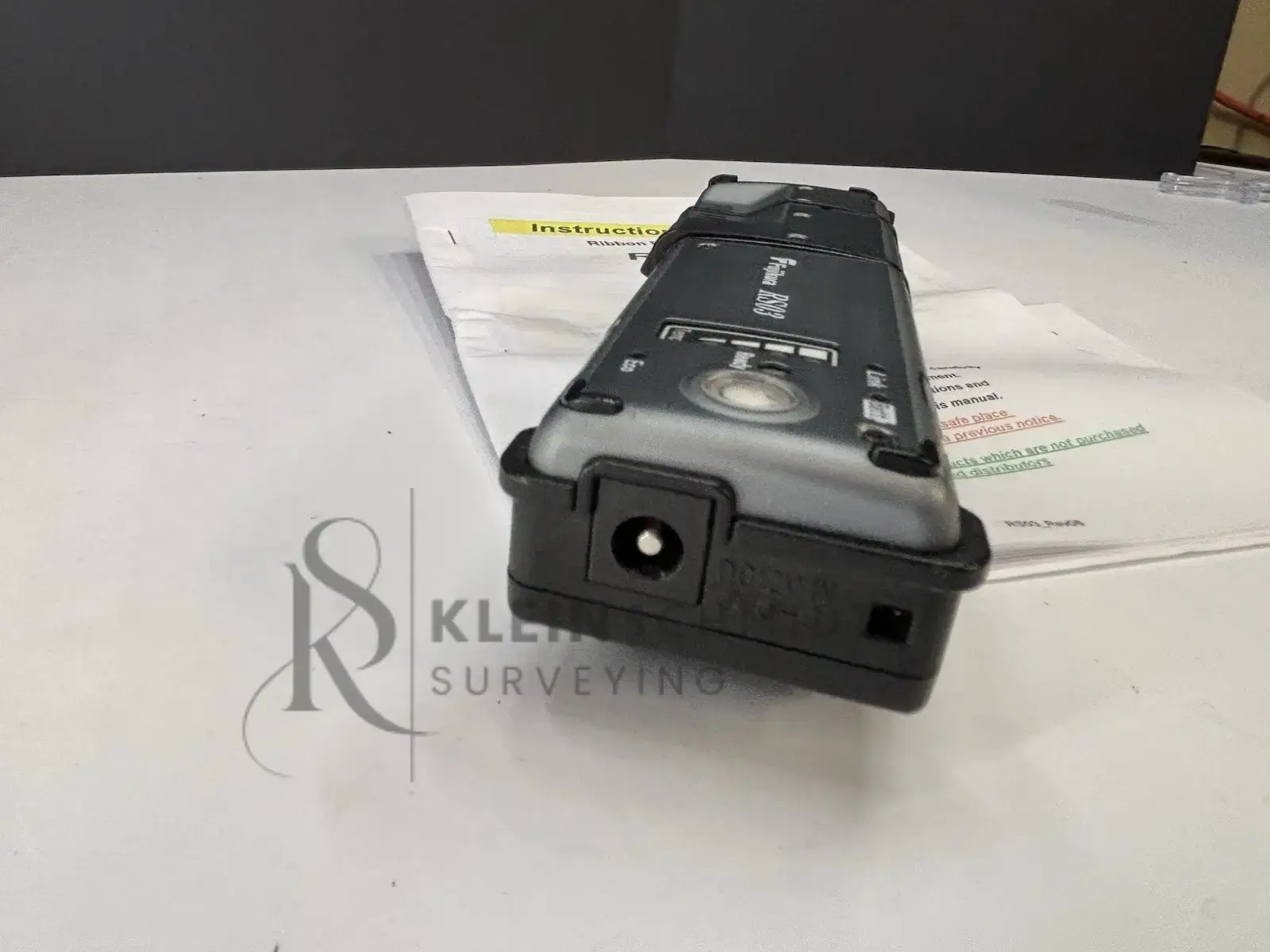

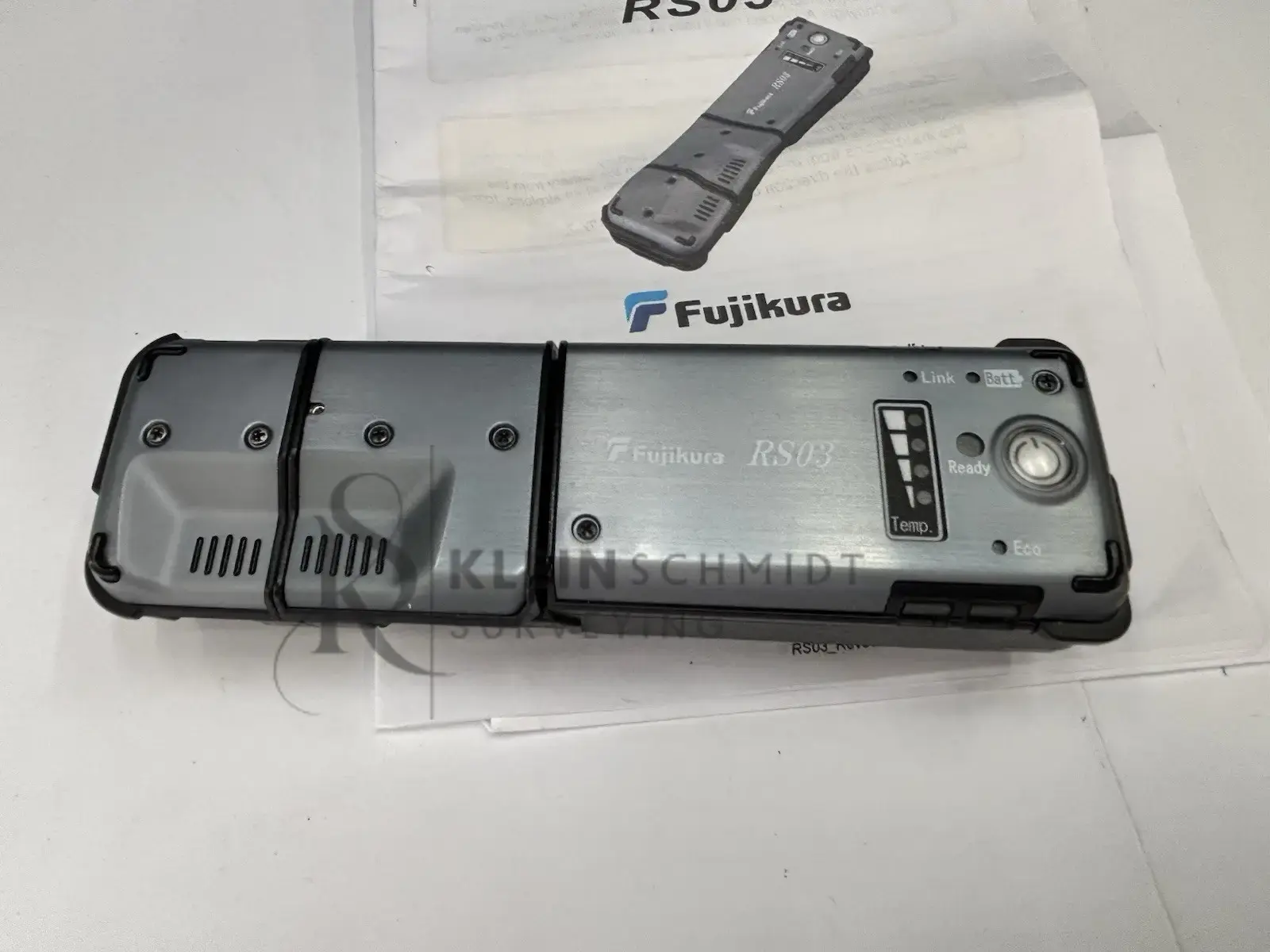

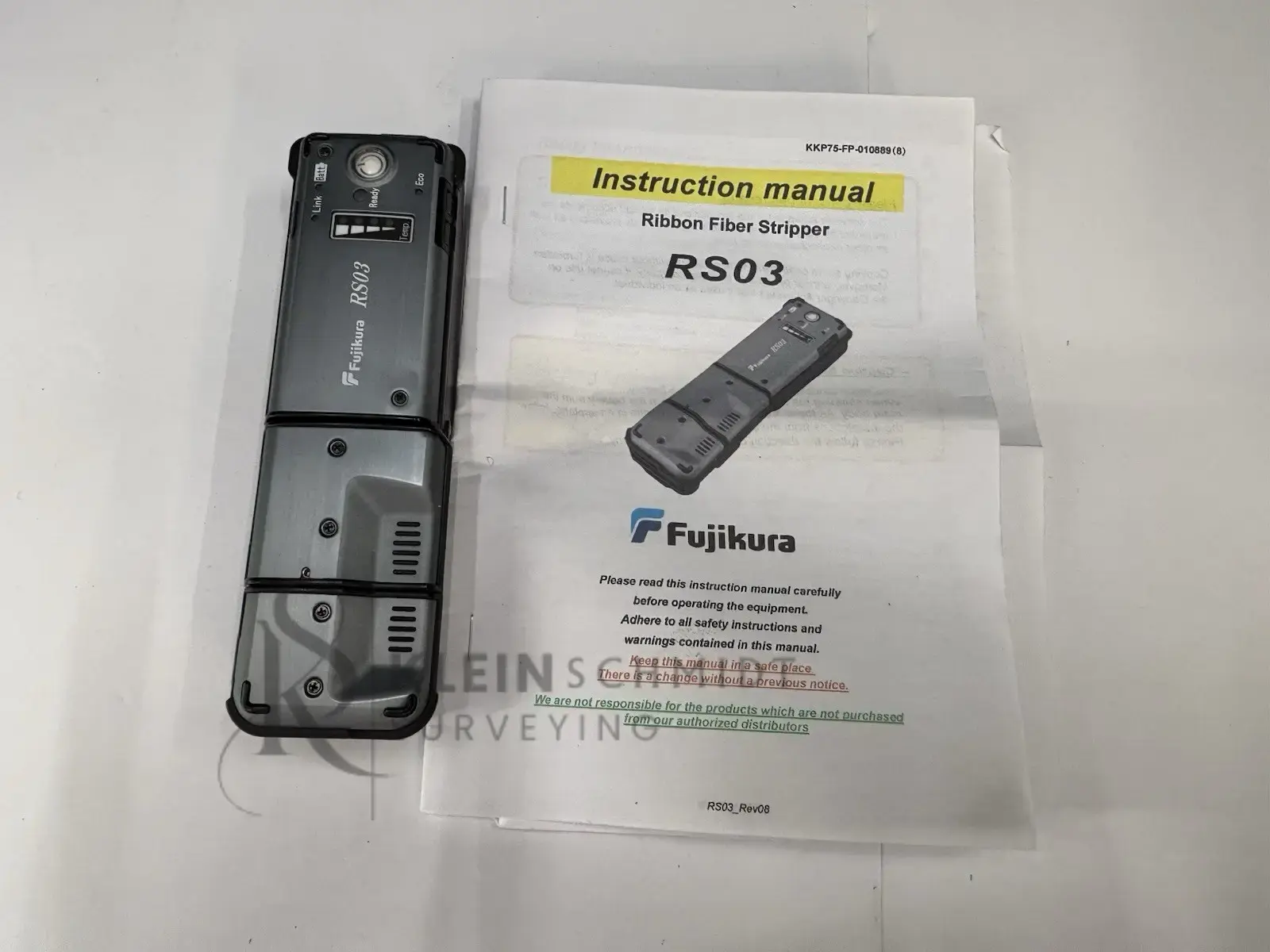

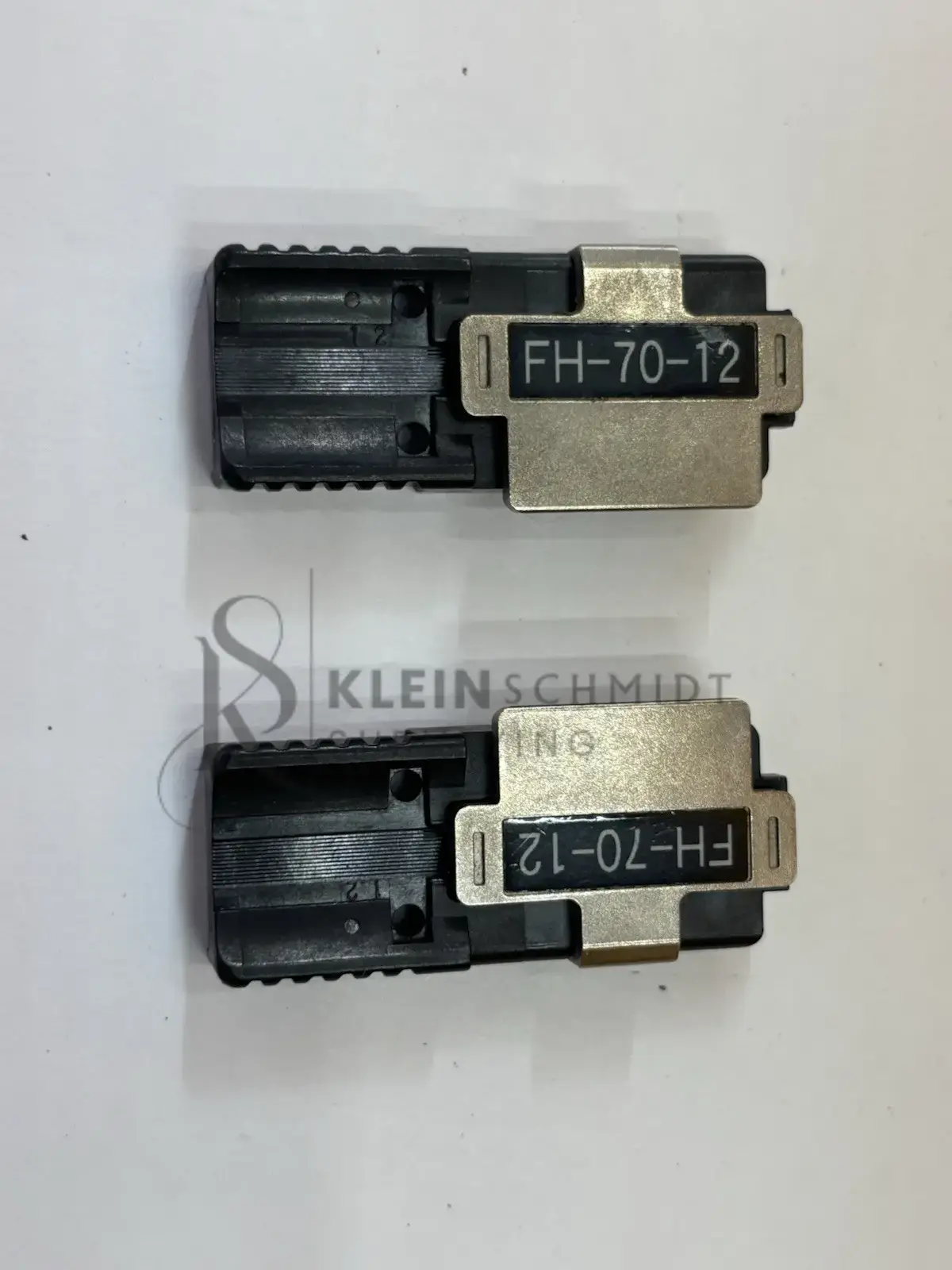

* 200 μm and 250 μm SWR universal ribbon prep accessories

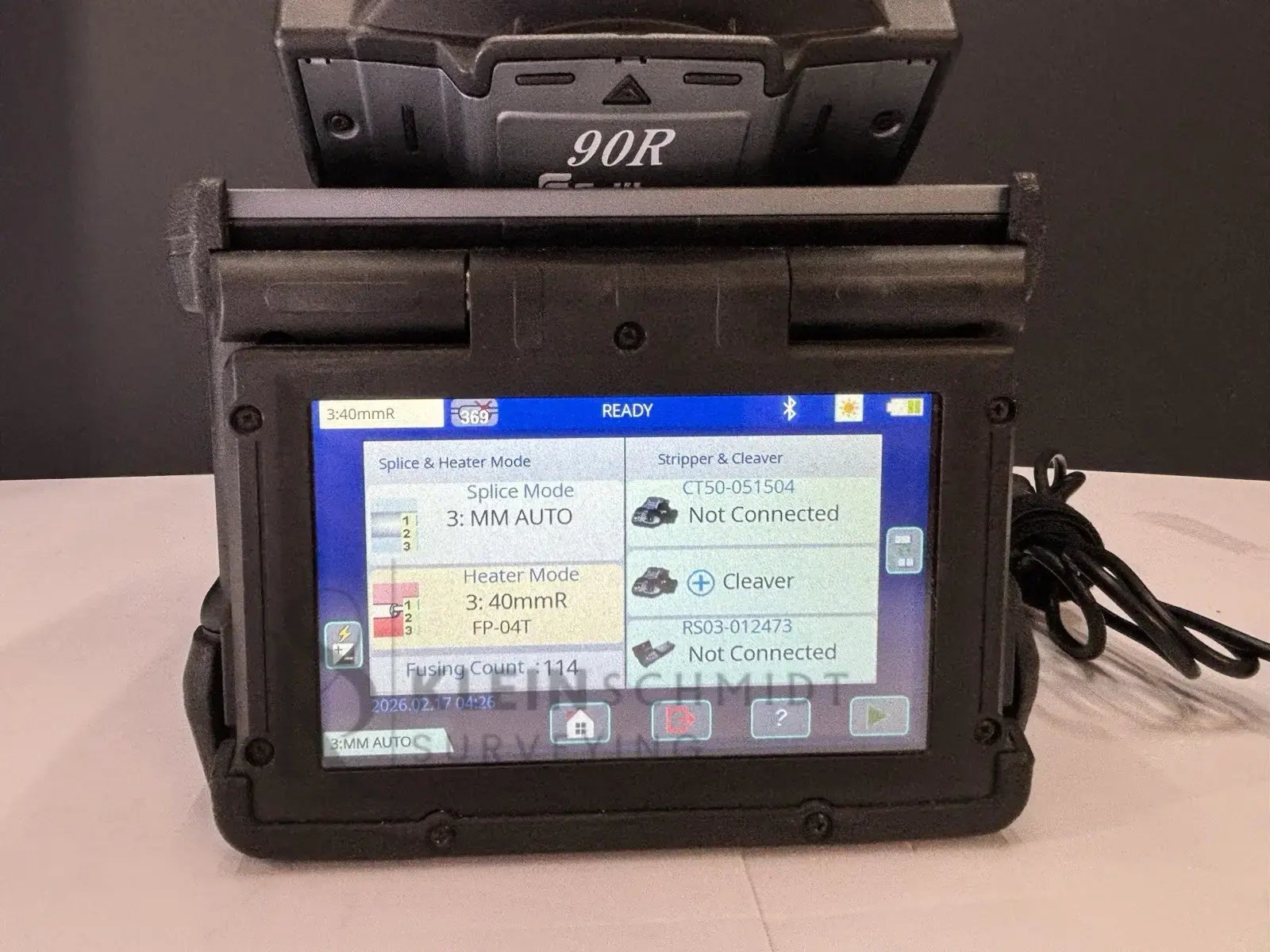

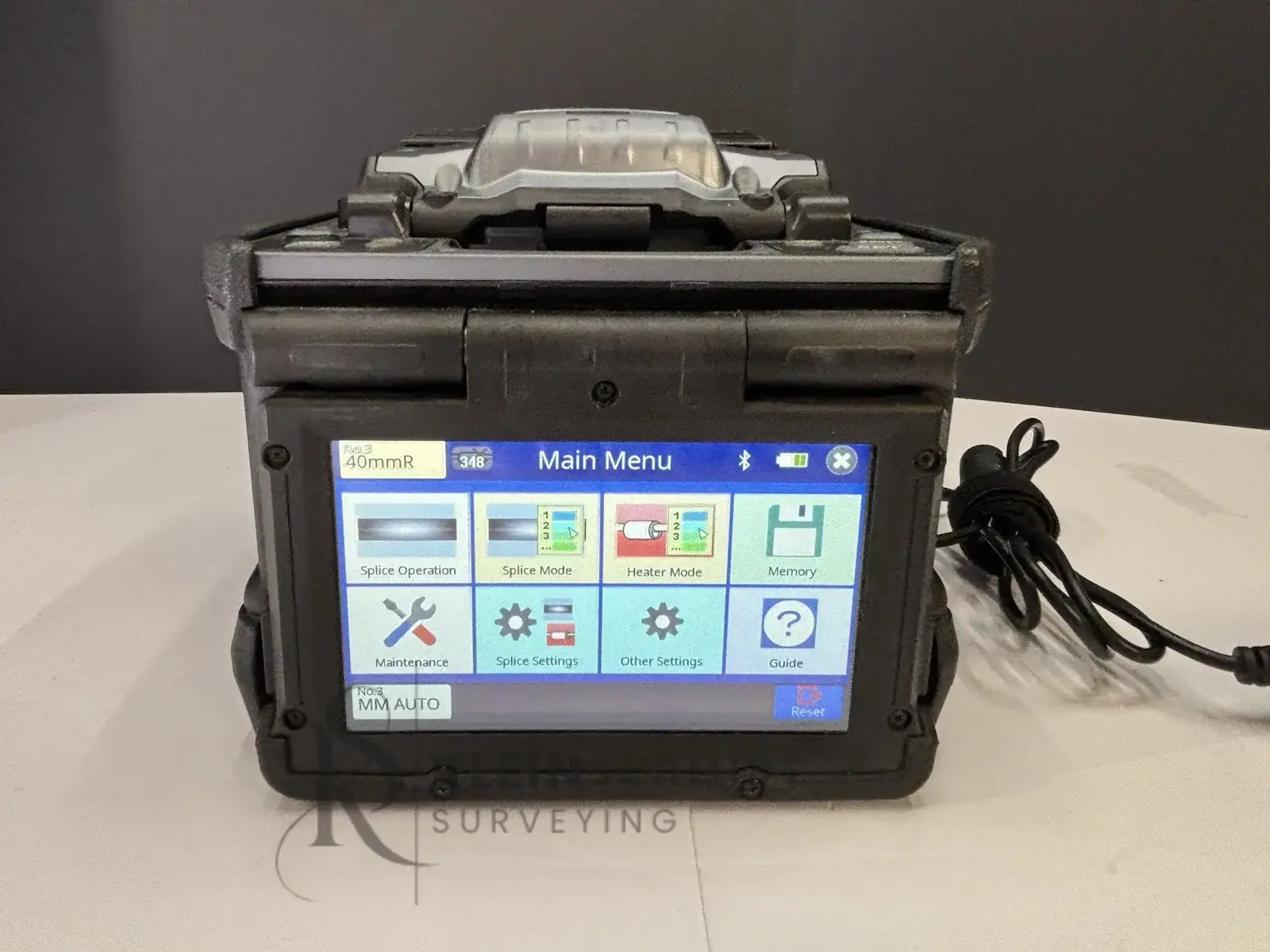

* Graphical User Interface with 5.0″ Touchscreen
* PC software and 90R manual downloaded from splicer

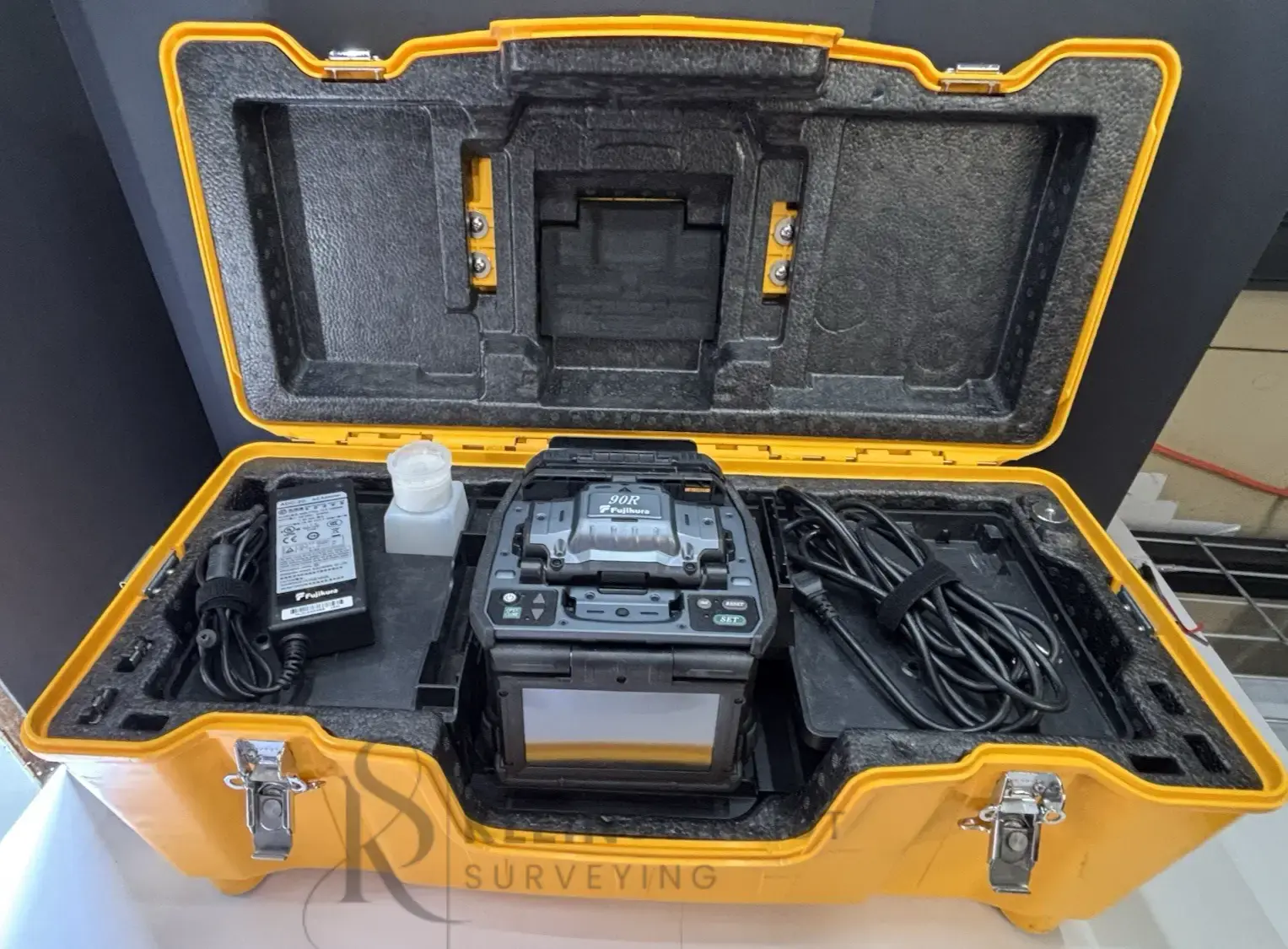

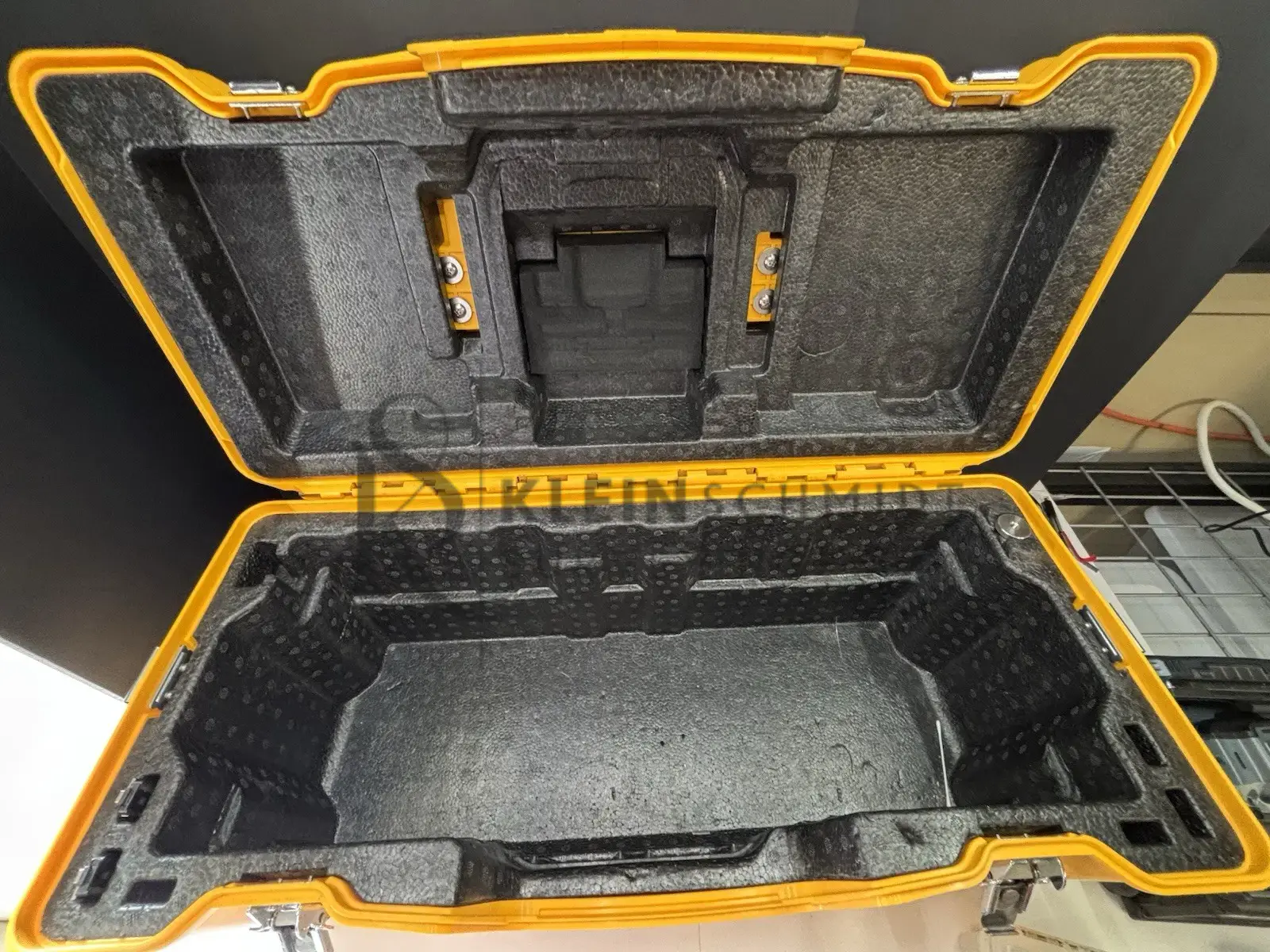

* Multi-function transit case with integrated workstation
Fujikura 90R Application
* Data Center cable installation
* High fiber count metro and campus networks
* Long-haul network installs and repair
* Trunk cable repair with Splice-on MPOs
* Ribbon splicing high density cables with 200 μm loose fiber
Fujikura 90R Specifications |
|
| Fiber Alignment Method | Self cladding alignment with melting surface tension |
| Fiber Count Can Be Spliced | Up to 16 fiber ribbon |
| Applicable Fiber | |
| Fiber Type | Single Mode Fiber Multi Mode Fiber |
| Cladding Dia. | Approx. 125 μm |
| Applicable Coating | |
| Sheath Clamp | Coating Shape: Refer to options Cleave length: 10mm |
| Fiber Splice Performance | |
| Splice Loss | ITU-T G.652 : Avg. 0.05 dB ITU-T G.651 : Avg. 0.02 dB ITU-T G.653 : Avg. 0.08 dB ITU-T G.655 : Avg. 0.08 dB ITU-T G.657 : Avg. 0.05 dB |
| Splice Time | SM FAST mode : Avg. 14 to 15 sec. SM AUTO mode : Avg. 19 to 20 sec. |
| Applicable Protection Sleeve | |
| Sleeve Type | Heat-shrinkable sleeve |
| Sleeve Length | Max. 66 mm |
| Sleeve Dia. | Max. 6.0 mm before shrinking |
| Sleeve Heat Performance | |
| Heat Time | 40 mm FP-05 mode : Avg. 38 to 40 sec. 40 mm FP-04T mode : Avg. 17 to 19 sec. Single 60 mm mode: Avg. 13 to 15 sec. |
| Fiber Tensile Test Force | Approx. 2.0 N |
| Electrode Life | Approx. 1,500 splices |
Fujikura 90R Applications
- Data Center cable installation
- High fiber count metro and
- campus networks
- Long-haul network installs and repair
- Trunk cable repair with Splice-on MPOs
- Ribbon splicing high density cables with
- 200 μm loose fiber
