Olympus OmniScan X4 Phased Array Flaw Detector

Description

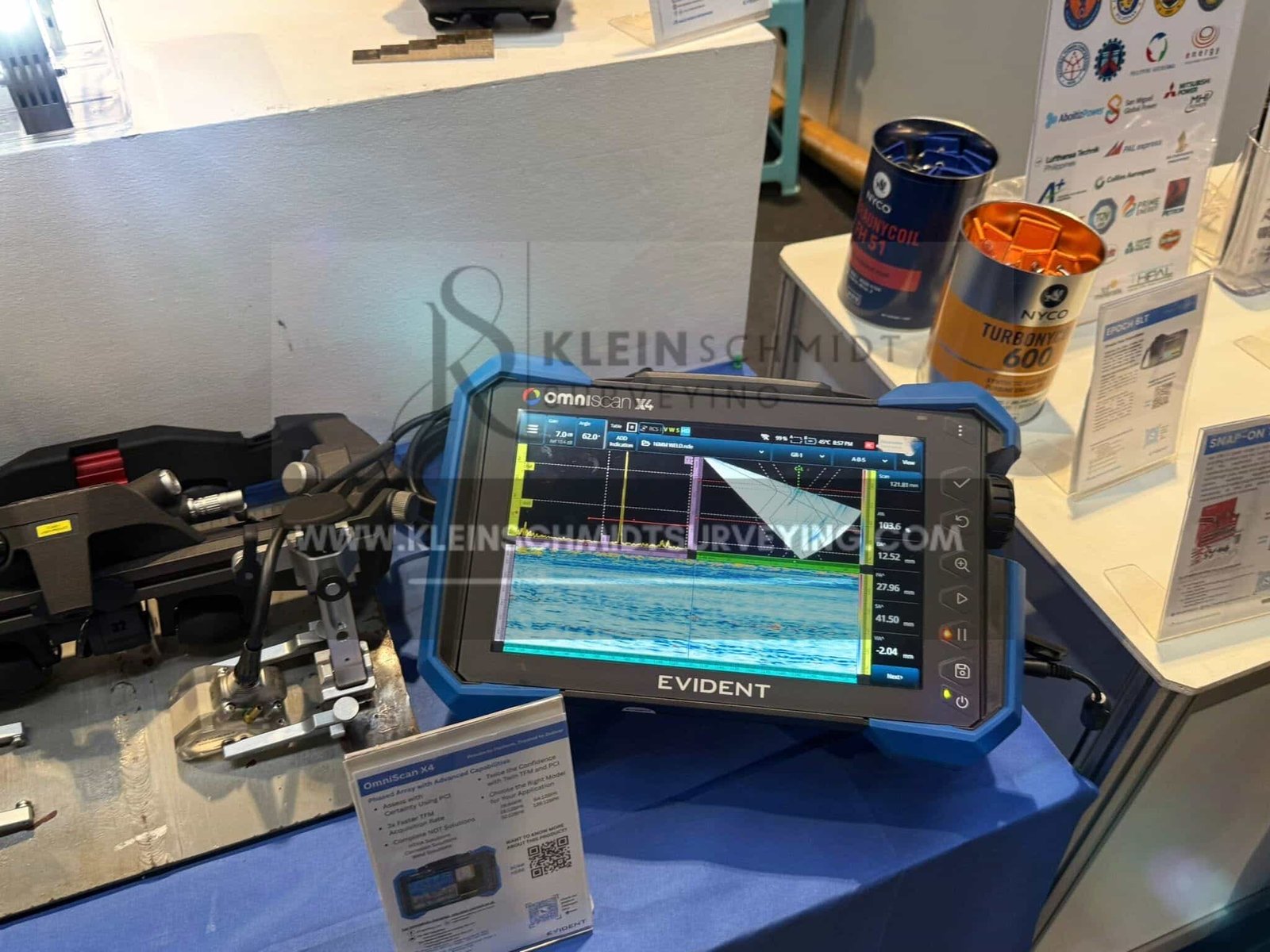

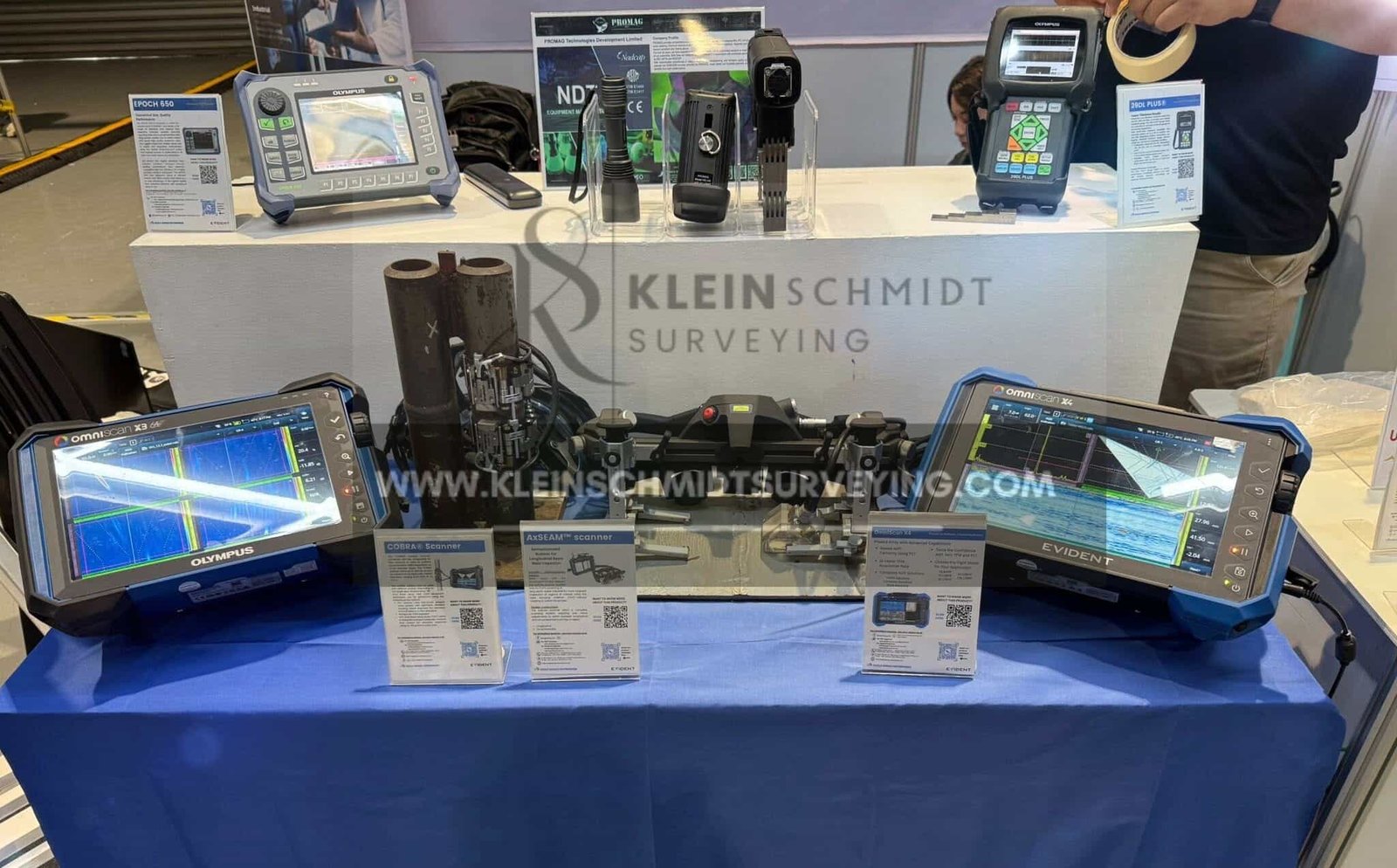

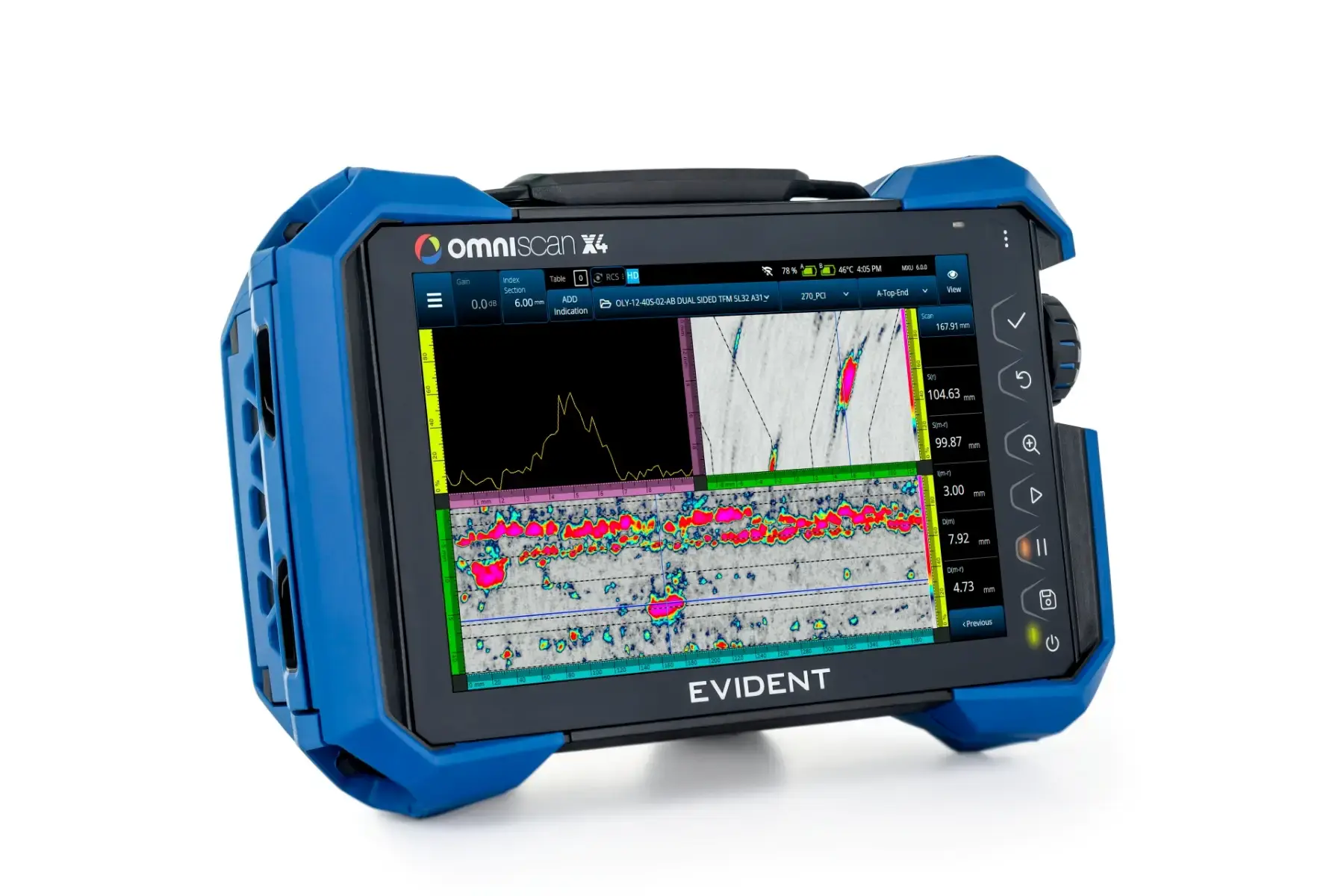

Olympus OmniScan X4 Phased Array Flaw Detector is a complete multitechnology inspection toolbox, enabling you to exploit multiple ultrasonic testing techniques. Leverage its detection and measurement capabilities to accurately identify and evaluate the severity of damage before it becomes critical, protecting welds, components, and assets most susceptible to cracking or corrosion.

Olympus OmniScan X4 Phased Array Flaw Detector is  a portable yet powerful solution, the speed and versatility of the OmniScan X4 multitechnology series boosts your productivity while increasing confidence in your assessments. Exploit its advanced phased array capabilities, efficient total focusing method (TFM), and innovative phase coherence imaging (PCI) to detect and interpret challenging flaws and secure the integrity of your assets by identifying damage earlier.

Olympus OmniScan X4 Features

• Multitechnology Inspection Toolbox: Supports PAUT, TFM, PCI, TOFD, FMC, and PWI modes.
• High-Speed Data Acquisition: TFM up to 3× faster than previous models using sparse firing.
• PCI Imaging: Superior visualization of fine flaws, such as stress corrosion cracking.
• Dual-Sided Weld Inspection: Simultaneous use of twin TFM and PCI for comprehensive coverage.
• Large Touchscreen Display: 10.6″ TFT LCD with resistive touch, 1280 × 768 resolution.
• Rugged and Portable: IP65-rated enclosure, drop-tested to MIL-STD-810G, and battery-powered.
• User-Friendly Workflow: Application presets, intuitive scan plans, and merged B-scan views.
• Expandable Storage: 1 TB internal SSD and SDHC/USB support for large data sets.
• Smart Connectivity: Wi-Fi 6E, Bluetooth 5.3, USB 3.1, HDMI, Ethernet.
• Open Integration: Compatible with the OmniScan Black Box App and NDT Device API for system integration and raw data access.

Olympus OmniScan X4 Applications

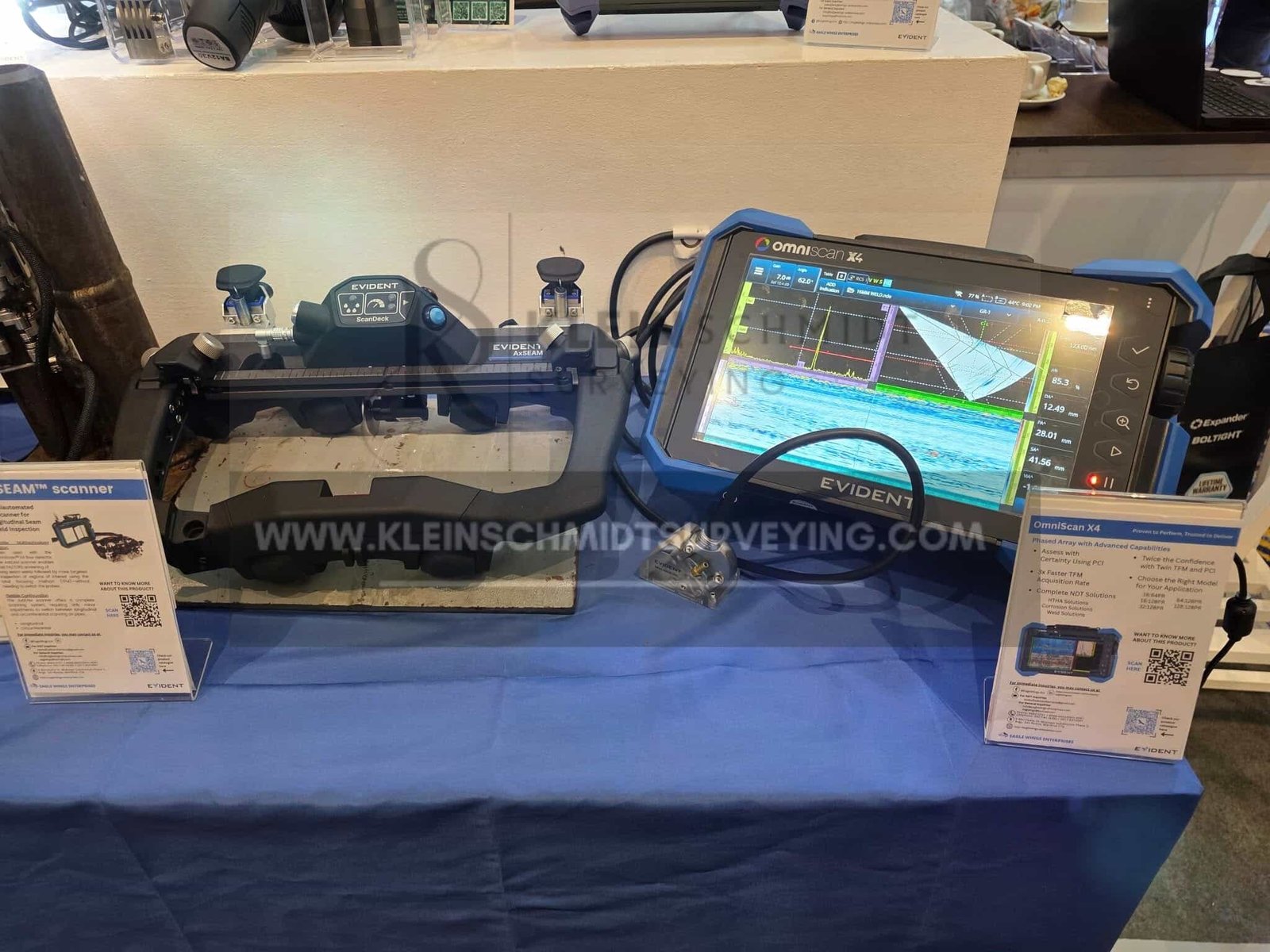

Weld Inspection: Detect internal flaws and perform dual-sided inspections using TFM and PCI.
Corrosion Mapping: High-resolution B-scans and optimized presets for HydroFORM™, RollerFORM, and FlexoFORM.
Composite Material Evaluation: Analyze delamination and defects in complex laminate structures.
Aerospace and Power Generation: Inspect critical components in turbines, pipes, and airframes.
Oil & Gas Pipelines: Ensure structural integrity through advanced ultrasonic inspection techniques.
R&D and Custom Application Development: Access to raw FMC data and programmable interface for research and prototyping.

Application Capabilities with Olympus OmniScan X4

Take on more complex challenges with confidence while keeping your equipment lightweight and field-ready.

The flexibility to develop new PAUT applications requiring 128-element pulsers.
Full 128:128 power in the same compact, portable, and durable design.
An upgrade path for your existing OmniScan X4 64:128PR: No full replacement needed.
Improved focalization and steering functionality.
The ability to go beyond 64 elements for linear and matrix probes

Olympus OmniScan X4 Included

• OmniScan X4 flaw detector unit
• 2× Hot-swappable lithium-ion batteries
• DC charger and power cords
• Rigid transport case
• microSD card and adapter
• USB communication cable
• Pitch-catch and MIA probe cables
• Resonance probe cable (multimode only)
• BondMaster PC software and product manuals
• Hand strap and getting started guide

Reference

Olympus OmniScan X4 brochure
