Description
With Olympus Vanta GX Precious Metal Analyzer, users can buy and sell gold, coins, jewelry, and other valuables with confidence. The analyzer offers a cost-effective way to determine the purity and composition of gold and other precious metals. It is accurate, simple to use, and non-destructive.

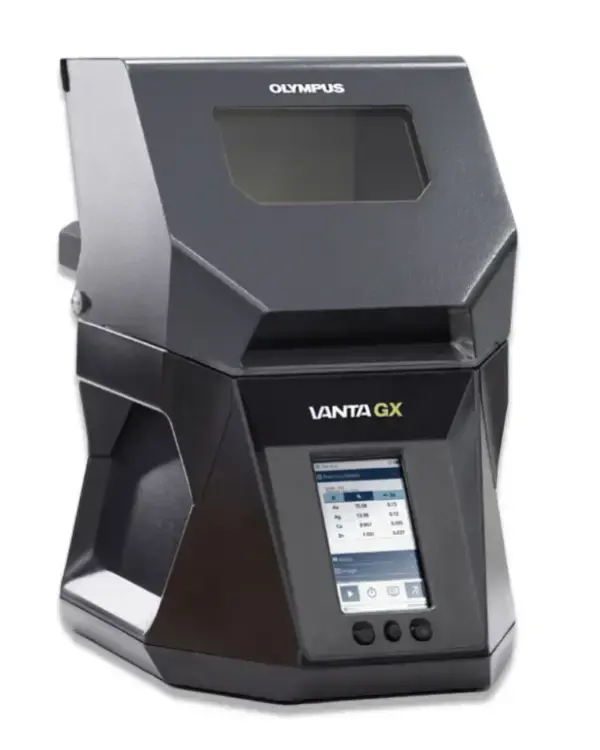

The countertop device, which is small and stylish for the showroom, quickly and accurately verifies the fineness and karatage of precious metals.
Users can quantify the gold, silver, and other useful metals in valuables on-site to rapidly and precisely price items
Determine fake items quickly with an alert for gold plating and detection of risky elements (for example, cadmium and lead)
Olympus Vanta GX feature
Simply Accurate Jewelry Analysis
Buy and sell gold, jewelry, coins, and other valuables with confidence using the Vanta™ GX precious metal analyzer. Accurate, easy to use, and nondestructive, the countertop instrument provides an affordable way to know the purity and composition of gold and other precious metals. Get showroom-ready results at the push of a button.
Verify Precious Metals and Purity on the Spot
The Vanta GX analyzer proves the purity of gold, silver, platinum, palladium, and other precious metals on the spot.
Measures precious metals in seconds for quick and accurate pricing
Alert for gold plating makes it easy to identify fake jewelry
Detects hazardous elements, such as lead or cadmium in jewelry
Technology
X-ray fluorescence, or XRF, is a nondestructive method for elemental analysis used in our family of Vanta analyzers. All Vanta analyzers feature our proprietary Axon Technology™ for enhanced XRF signal processing. Ultra-low-noise electronics push the boundaries of X-ray detector performance, resulting in higher X-ray counts per second and faster, more reliable results.
Olympus Vanta GX Specifications
| Overall Dimensions (W x H x D) | Closed: 35.73 cm × 23.93 cm × 32.41 cm (14.07 in. × 9.42 in. × 12.76 in.) Open: 38.78 cm × 23.93 cm × 39.08 cm (15.27 in. × 9.42 in. × 15.39 in.) |
| Sample Chamber Dimensions (H × W × D) | 9.39 cm × 17.67 cm × 17.34 cm (3.70 in. × 6.96 in. × 6.83 in.) |
| Weight | 10 kg (22 lb) |
| Excitation Source | 2-watt X-ray tube: 35 kV, 50 μA maximum Tungsten (W) anode |
| Detector | Silicon PIN diode (example: P/N: VGP-PM) Silicon drift detector (example: P/N: VGS-PM) Thermo-electrically cooled, high resolution |
| Power | 100–240 VAC, 50–60 Hz, 70 watts at 18 V and 3.9 A |
| Display | Full color touch-screen display: 800 × 480 (WVGA) 16-bit transflective LCD with capacitive touch screen supporting gesture control |
| Operating Environment | Temperature: −10 °C to 40 °C (14 °F to 122 °F) Humidity: 10% to 90% relative humidity, noncondensing |
| Operating System | Linux® Application software: Evident-proprietary data acquisition and processing package |
| Camera | Full-color VGA camera |
| Warranty | Three-year standard warranty |
| Selected Accessories | AC power adapter:
1.8 m (6 ft) AC line cord, 18 AWG cable with UL listed, IEC male plug, 0.9 m (3 ft) USB cable |
Olympus Vanta GX Applications
Compact and stylish for the showroom, the Vanta™ GX analyzer is designed for countertop use at pawn shops, cash-for-gold operations, jewelers, museums, archaeological sites, coin collectors, scrap recycling facilities, and more.
Typical applications include:
- On-the-spot gold measurement and karat (K) classification
- Gold plating identification
- Gold and silver purity testing
- Identification of impurities in precious metals
- Lead or cadmium screening in jewelry
- Compositional analysis of platinum, silver, and other precious metals
- Determination of gold and silver content in coins
- Identification of unknown metals in valuables
- Verification of gold content in scrap metal
Olympus Vanta GX Includes:
Olympus Vanta GX SDD unit
AC power adapter: Has a straight barrel output connector
Electrical output is 70 W at 18 V and 3.9 A
Electrical input is 100–240 VAC (50–60 Hz)
Line cord: 1.8 m (6 ft) long
18 AWG
U/L listed
C13 (female) to NEMA 515 (male) connectors
Standard USB cable: P/N: U8990455
0.9 m (3 ft) long
Extra windows: P/N: Q0204129 (10-026487-10)
New windows (10)
Transport Case
Warranty Card
Calibration Certificate
