Description

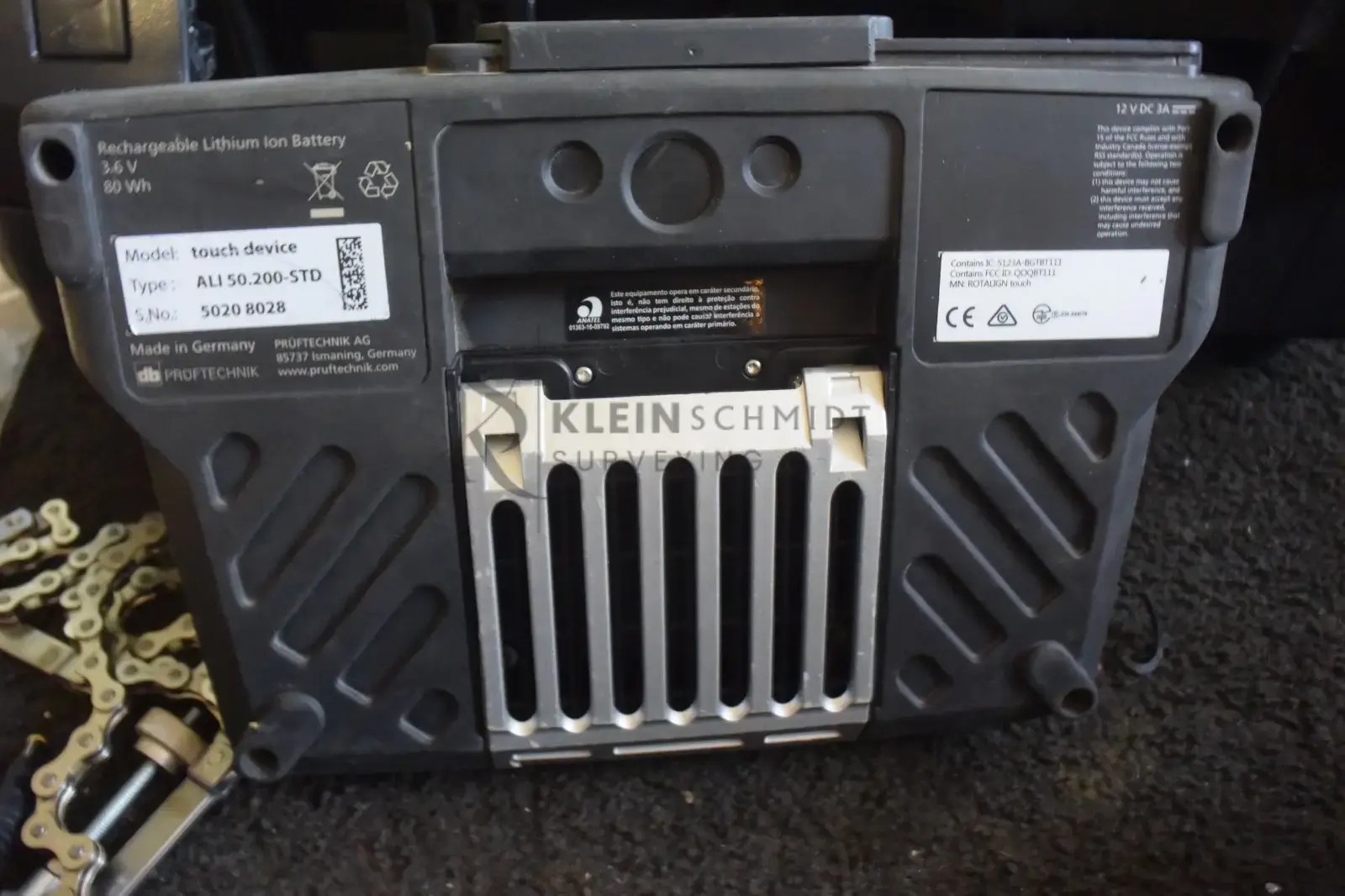

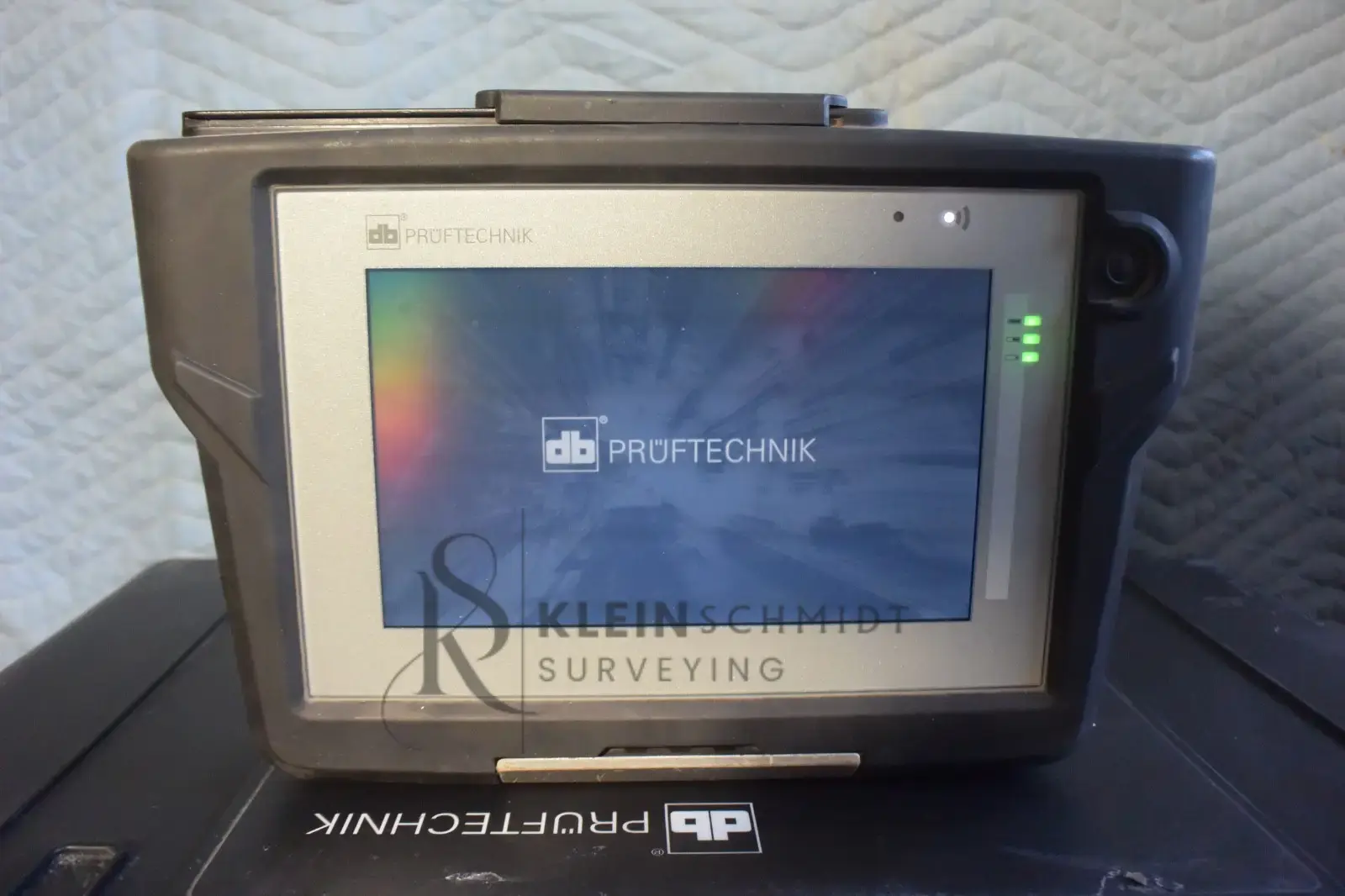

Prüftechnik OptAlign Touch Laser Shaft Alignment Tool was designed by some of the world’s leading alignment experts to solve problems in the easiest way possible. Featuring the unique sensALIGN 5 laser and sensor heads, it enables powerful, fast, and efficient ways to align machine shafts.

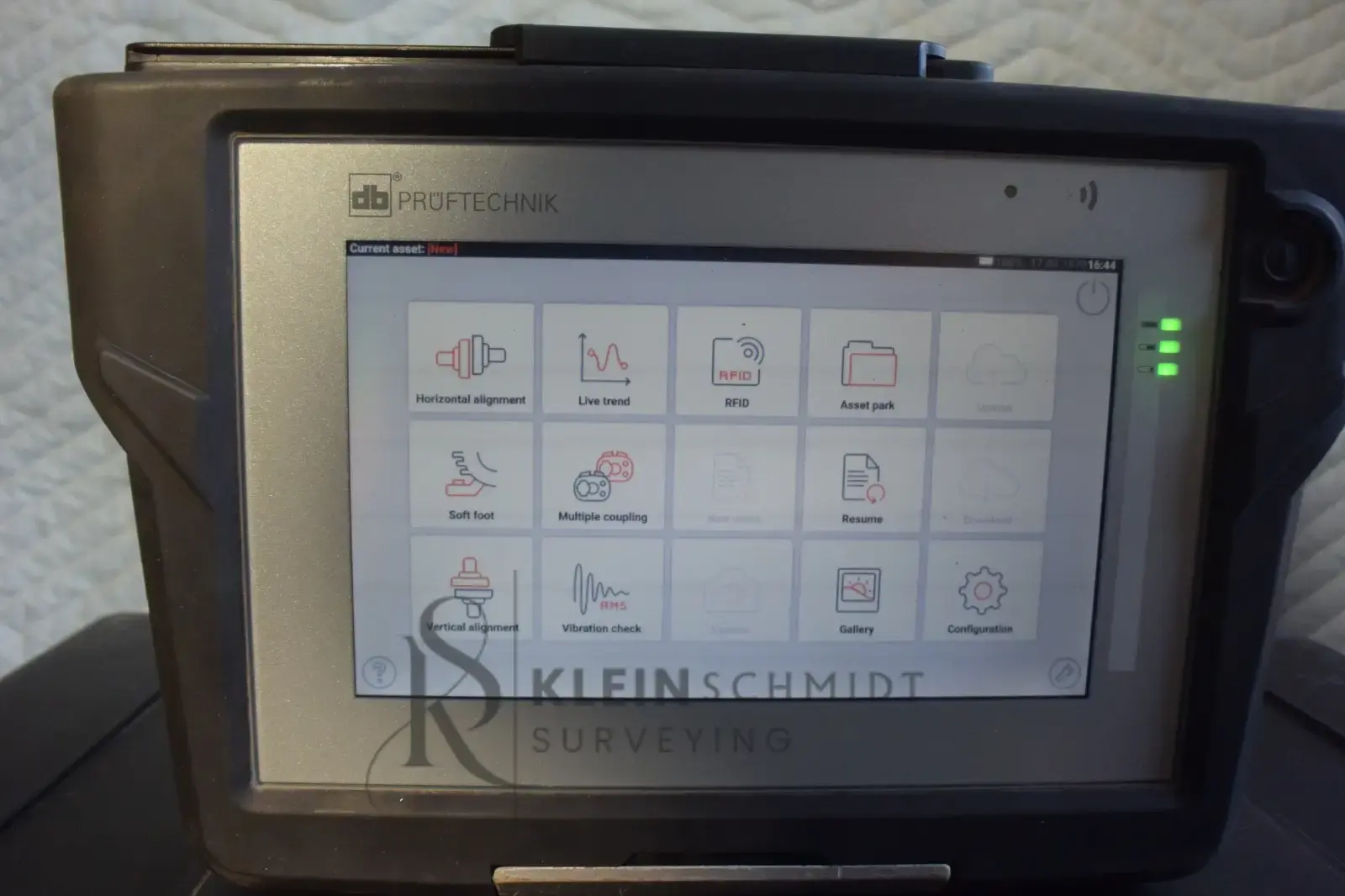

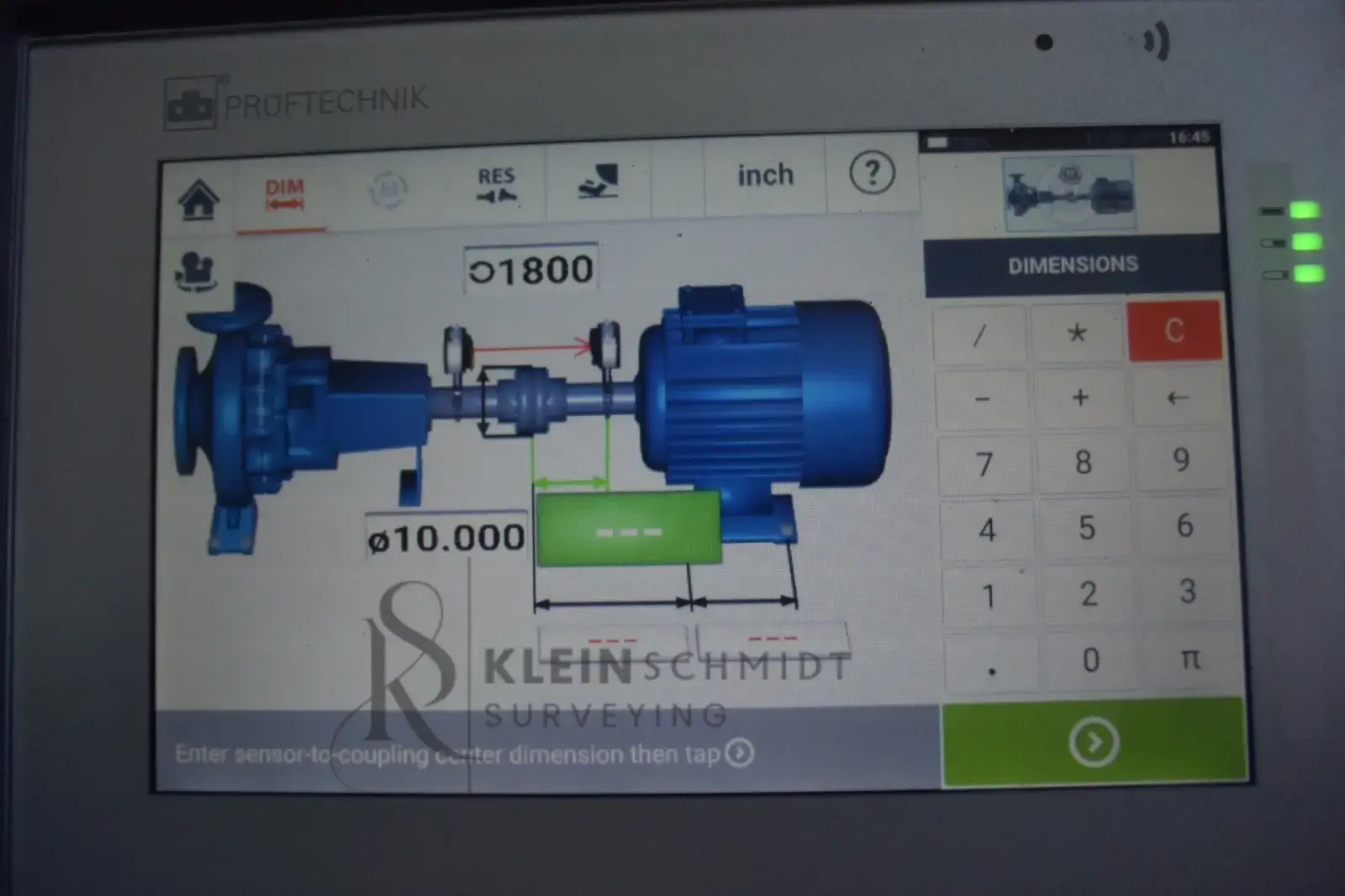

Designed for standard machines and everyday tasks, Prüftechnik OptAlign combines hardware, software, and WiFi connectivity to deliver precise alignment data via the cloud. Its intuitively guided user interface can be operated by almost anyone – users just need to follow the three steps for any laser shaft alignment procedure: dimensions, measure, and result.
The Prüftechnik OptAlign offers all well-known PRUFTECHNIK features necessary for every day alignment jobs: SWEEP mode measurement, simultaneous Live Move, InfiniRange, flip machines functionality, soft foot detection, dynamic tolerance (TolChek), thermal growth compensation and many more.
Prüftechnik OptAlign was created by some of the top alignment specialists in the world to provide the simplest solutions to issues. Machine shaft alignment is made possible by its powerful, quick, and effective sensALIGN 5 laser and sensor heads. All of the well-known PRUFTECHNIK functions that are required for daily alignment tasks are available with the OPTALIGN Touch, including thermal growth correction, soft foot recognition, dynamic tolerance (TolChek), simultaneous Live Move, InfiniRange, and SWEEP mode measurement.
Prüftechnik OptAlign Feature
- Single-laser technology sensALIGN 5 featuring continuous SWEEP mode, Live Move, and InfiniRange
- Active Situational Intelligence speeds every alignment task
- WiFi and Bluetooth communication
- Continuous SWEEP measurement mode: Automatic collection of alignment data during shaft rotation
- Live Move: simultaneous real-time machine corrections in both horizontal and vertical directions
- Automatic evaluation of the alignment condition (Dynamic Tolerance)
- Soft foot check – measure, correct, and save results
- InfiniRange extends detector measurement range to handle gross misalignment and large coupling separation distances
- Fully featured with all shaft alignment relevant functions
- Upgrade with sensALIGN 7 laser/sensor heads: the whole world of PRUFTECHNIK’s adaptive alignment features becomes available
Prüftechnik OptAlign Key benefits
Work faster without sacrificing accuracy
With intuitive setup and data acquisition and an easy-to-use handheld device, even complex alignment jobs can be done quickly with no loss in accuracy and precision.
Leverage advanced laser shaft alignment capabilities
The powerful hardware and software features in the OPTALIGN touch simplify the way you perform mounting, measuring, and shimming.
With mistake-correcting capabilities, this tool adapts to both the alignment challenge and experience level of the user.
Transfer data to and from the cloud
Send and receive alignment data from and to the ARC 4.0 PC software via an integrated WiFi connection. Monitor and trend your data for analysis and action.
sensALIGN technology

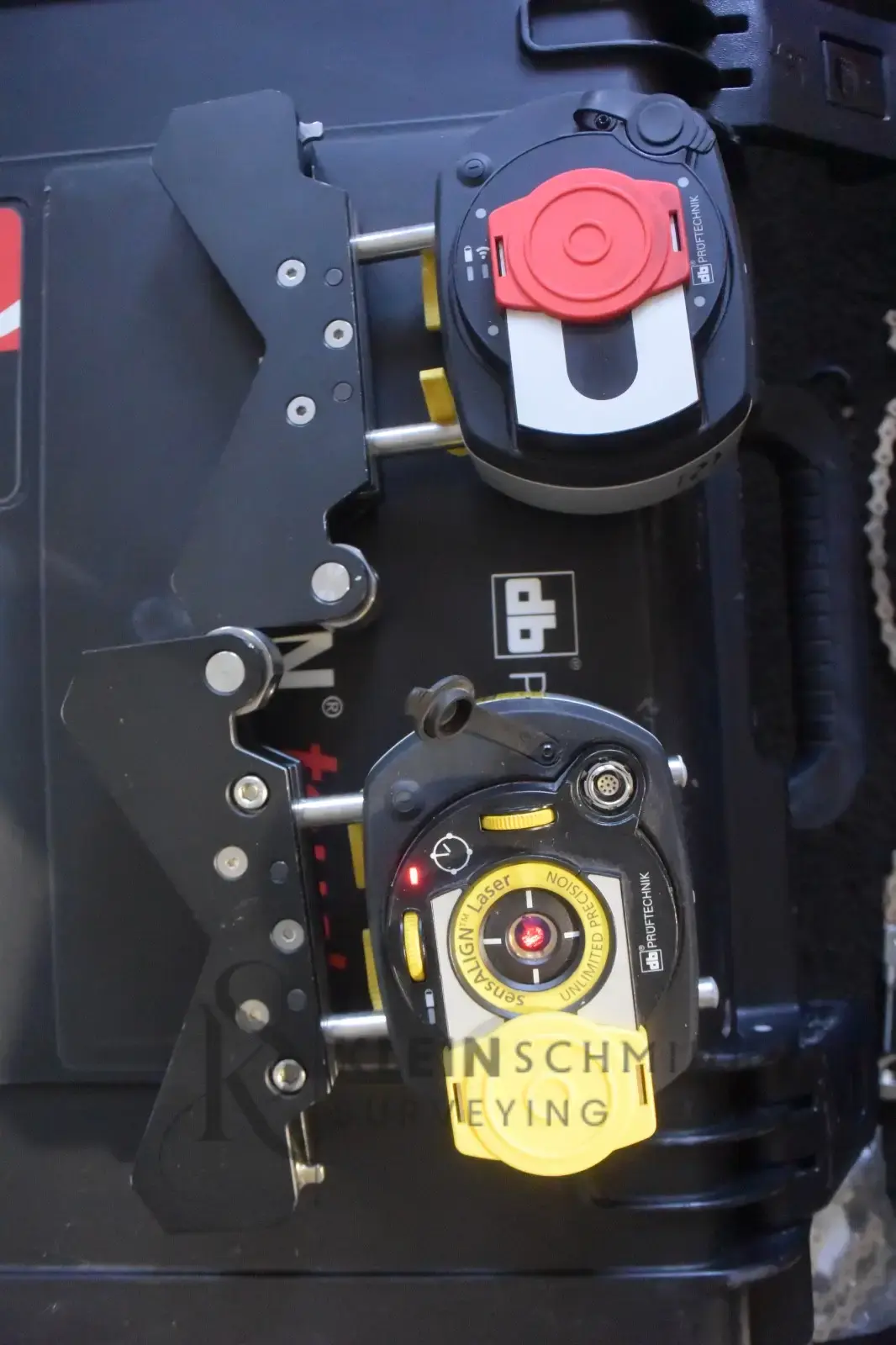

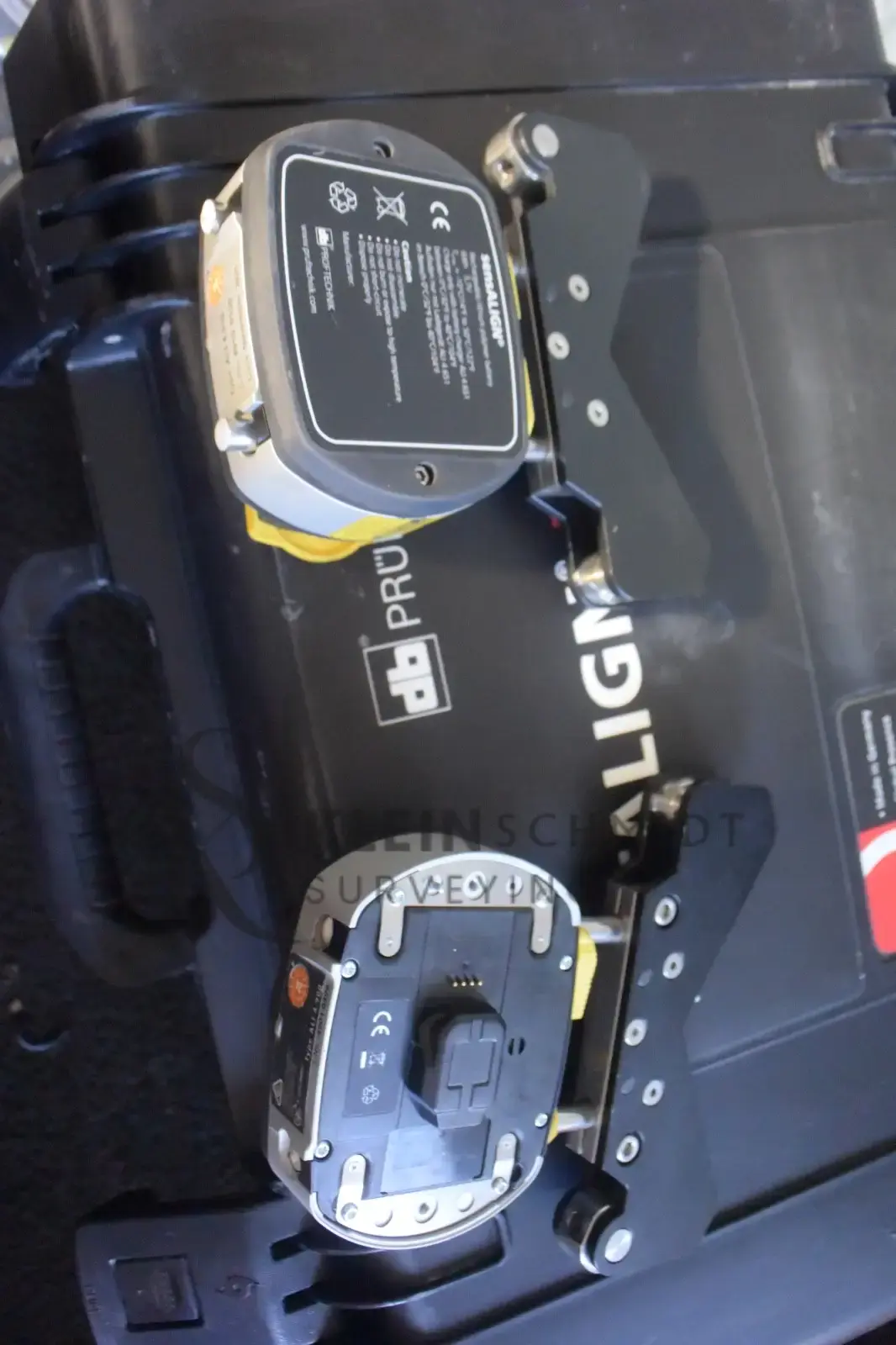

The sensALIGN Series technology is based on the inherent PRUFTECHNIK single laser technology providing highly precise measurement results and easy mounting and measuring in the field. sensALIGN 5 sensors include two HD large position-sensitive detectors (PSD) and MEMS inclinometers. Combined with the detector extension capability (InfiniRange), it is always possible to measure and document the initial alignment condition; no matter how big is the misalignment. Furthermore, this technology allows the simultaneous monitoring of the machine corrections in vertical and horizontal directions, starting from any angular position where the sensor comes to stop.

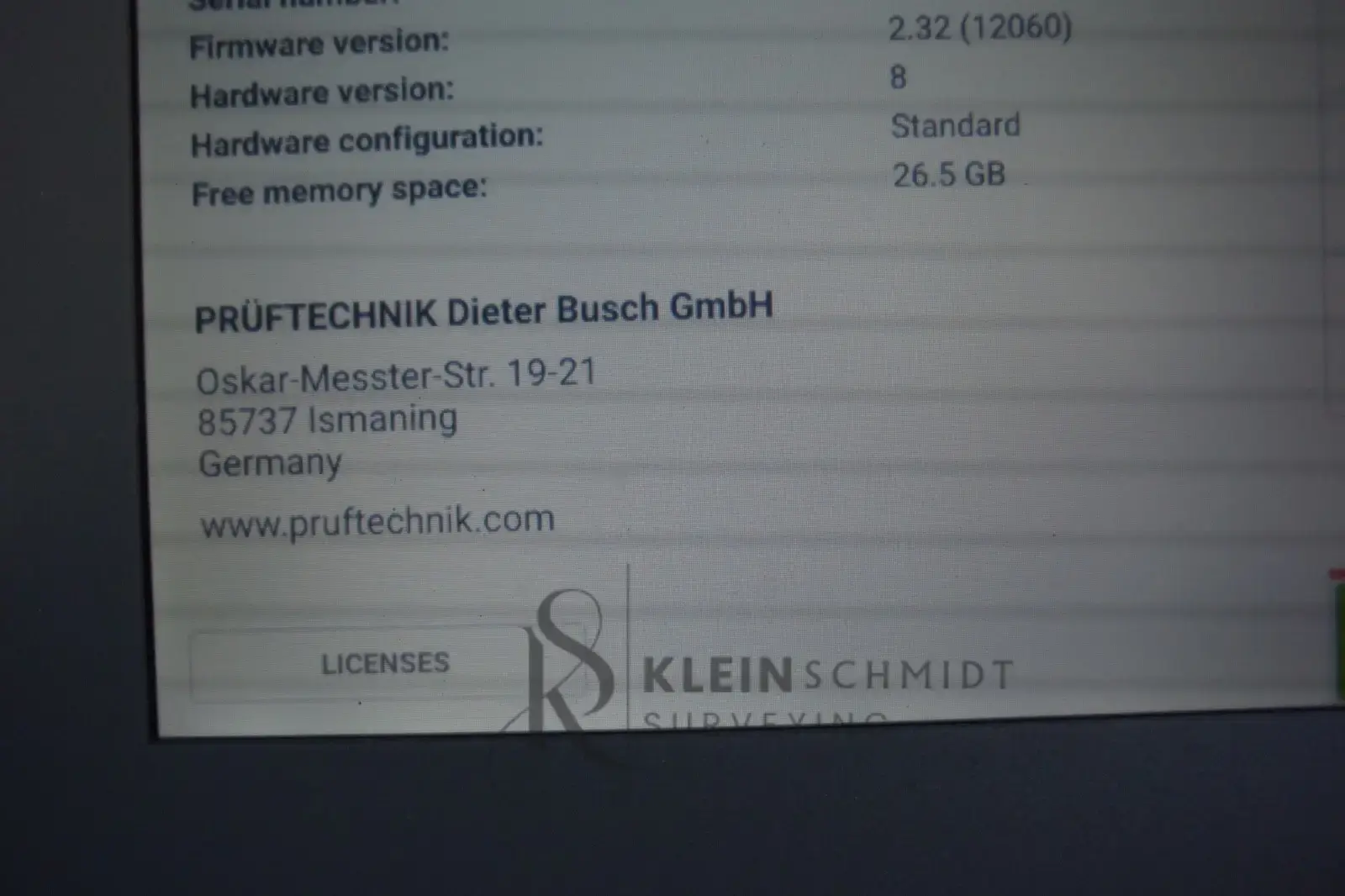

touch device Firmware Version 2.32
ANSI tolerances available for Short flex and Spacer coupling types
Resolution available in both 2DP and 3DP (Metric)
Report print preview
Report new section: Measurement equipment serial number and due calibration date
Tolerance screen accessible directly from Results view
Context sensitive help ‘?’ button directly accessible within main workflow screens
“Add feet” button available in stationary machine properties
Please note: touch device firmware version 2.32 strictly requires ARC 4.0 software version 2.3 to communicate.
How to upgrade your firmware?
touch device – ALI 50.200 upgrade procedure
Please ensure the touch device is charged or has at least 50% battery capacity.
Unzip file to empty PRUFTECHNIK USB memory stick. Firmware is stored in “touch” folder.
Switch on the touch device. Wait for Home screen to appear.
Connect USB memory stick to the touch device USB port. New firmware copied from USB memory stick to the touch device.
After approximately 1 minute on-screen message box appears stating new upgrade firmware found. Tap green tick button to start upgrade. Remove USB memory stick from the touch device.
The touch device restarts and firmware upgrade begins.
After completion of firmware upgrade the touch device restarts and finishes in Home screen.
Device Viewer
The Device Viewer software is used to demonstrate the operation of the instrument on a PC or Laptop.
Prüftechnik OptAlign Specifications
Computer Intel XScale Processor, 64 MB RAM, 64 MB Internal Flash, 64 MB Compact Flash Memory, power saving management
Display Transflective (sunlight-readable) backlit color graphic display (1/2 VGA, 480 x 320 pixel, 118 mm x 80 mm), contrast and illumination (0 … 70 cd/m squared) adjustable
Power Supply Li-Ion rechargeable battery (7.2 V/6,0 Ah),
Operating time: Approximately 25 hours
Disposable batteries: (6 x 1,5 V [IEC LR14]),
Operating time: Approximately 12 hours
Mains power: (110 V/220 V AC)
Interfaces USB Host/Slave (for printer, keyboard or PC communication),
I-Data-socket (for receiver), RS232 (Serial for receiver),
Bluetooth communication
Laser GaAIAs semiconductor laser, Beam divergence < 0.3 mrad, Beam power < 1 mW, Laser safety class 2 (FDA 21CFR 1000 und 1040),
Power supply 9V block battery (IEC 6LR61, alkali or lithium)
Receiver 5-axis receiver: 2 planes (4 displacement axes), 1 inclination 360 degrees,
protection from ambient light, unlimited dynamically extendible measurement area, resolution 1 um (0.04 mil) and angular 10 urad,
error < 2%, error rotation angle < 2 degrees, measurement range approx 20 Hz
Environmental protection Computer: IP 65
Laser: IP 67
Receiver: IP 67
Temperature range (storage) Computer: -20 to 60 C
Laser: -20 to 60 C
Receiver: -20 to 80 C
Temperature range (operation) Computer: 0 to 45 C
Laser: 0 to 60 C
Receiver: 0 to 60 C
Dimensions Computer: 243 x 172 x 61 mm
Laser: 105 x 67 x 47 mm
Receiver: 105 x 67 x 47 mm
Weight Computer: 1 kg (without battery)
Laser: 165 g
Receiver: 190 g
Maximum measurement distance Laser: 10 m
CE conformity EN 61326 (general), EN 55022 (emission), EN 61000-4-2, -3, -4, -5, -6, -11 (interference)

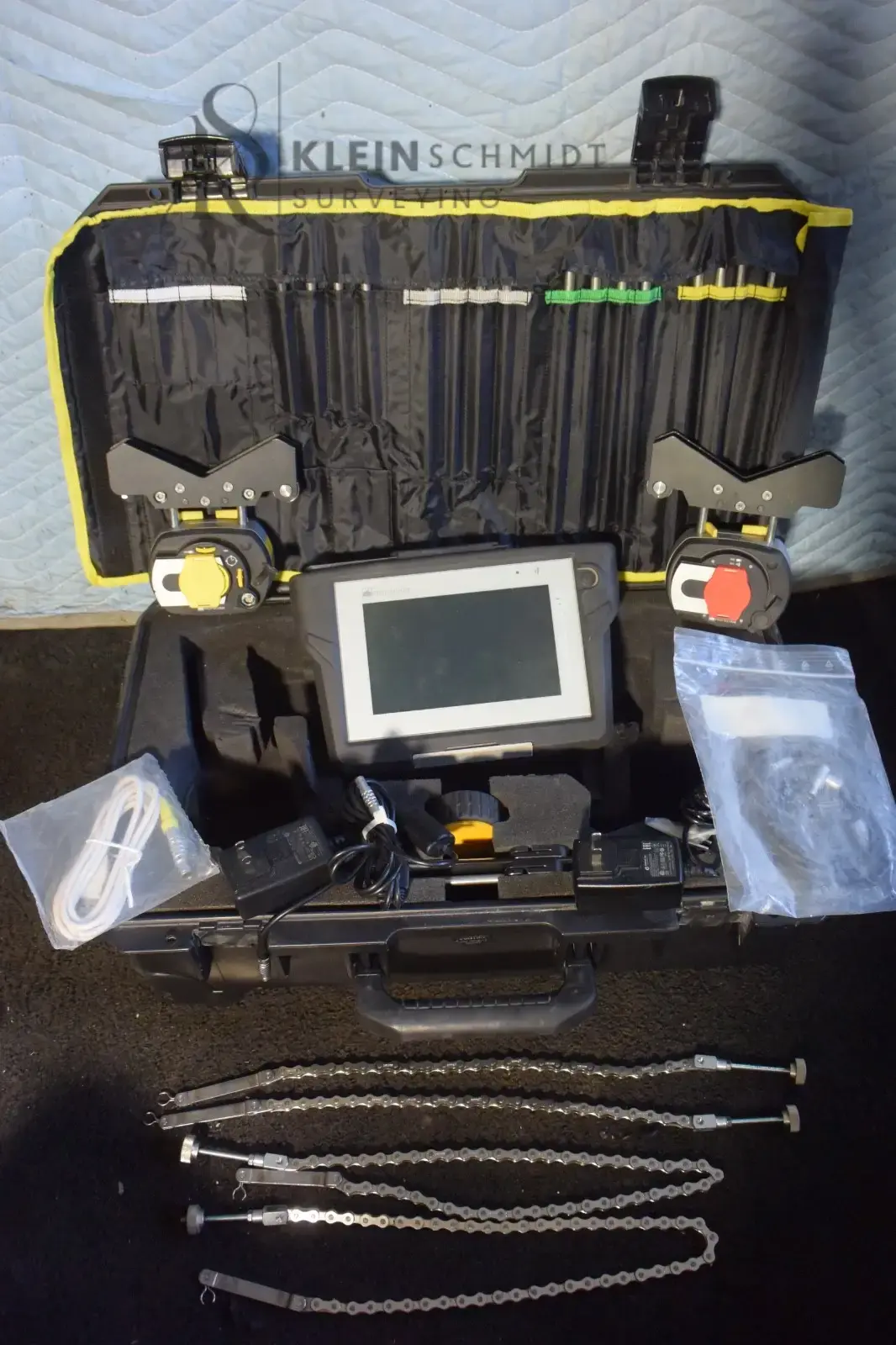

Prüftechnik OptAlign Included
Pruftechnik Rotalign Ultra Laser Shaft Alignment System
Licensed Applications:
Program Manager V1.84
Shaft Alignment V1.26
Rotalign Laser
Rotalign Receiver

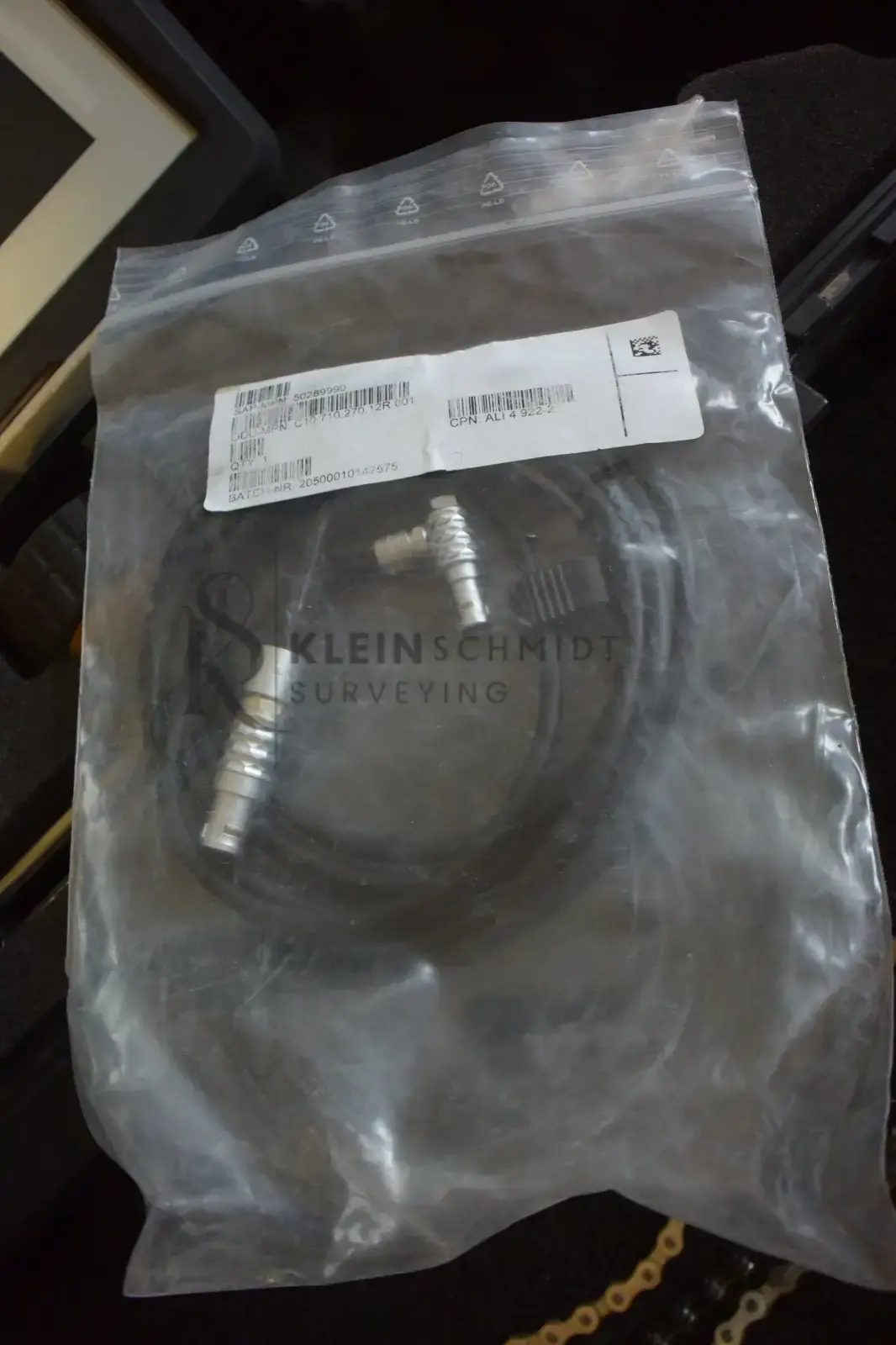

Rotalign Ultra USB Cable
Rotalign Ultra USB / Peripheral Cable
Tape Measure

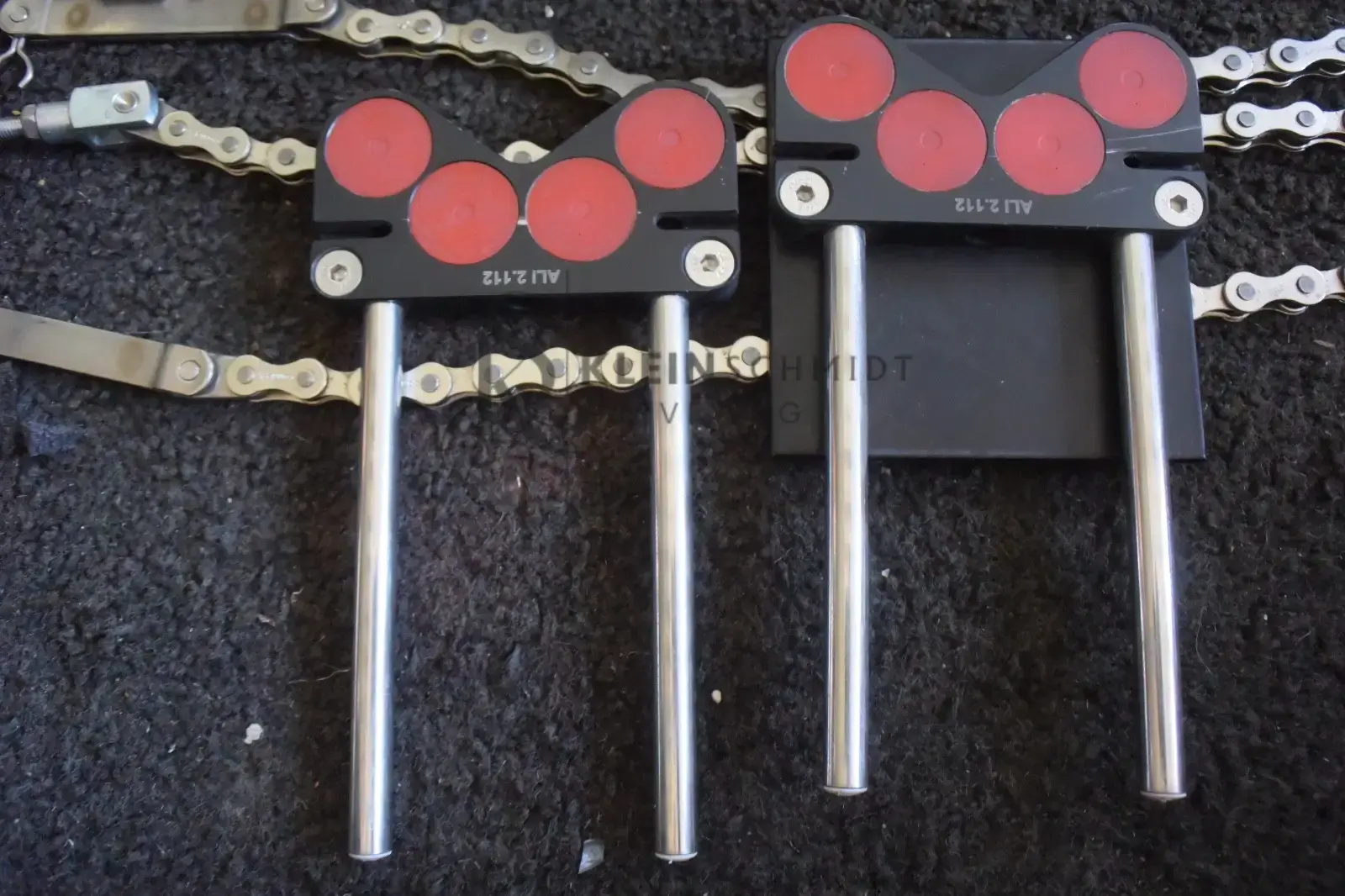

(2) Brackets w/ Chains

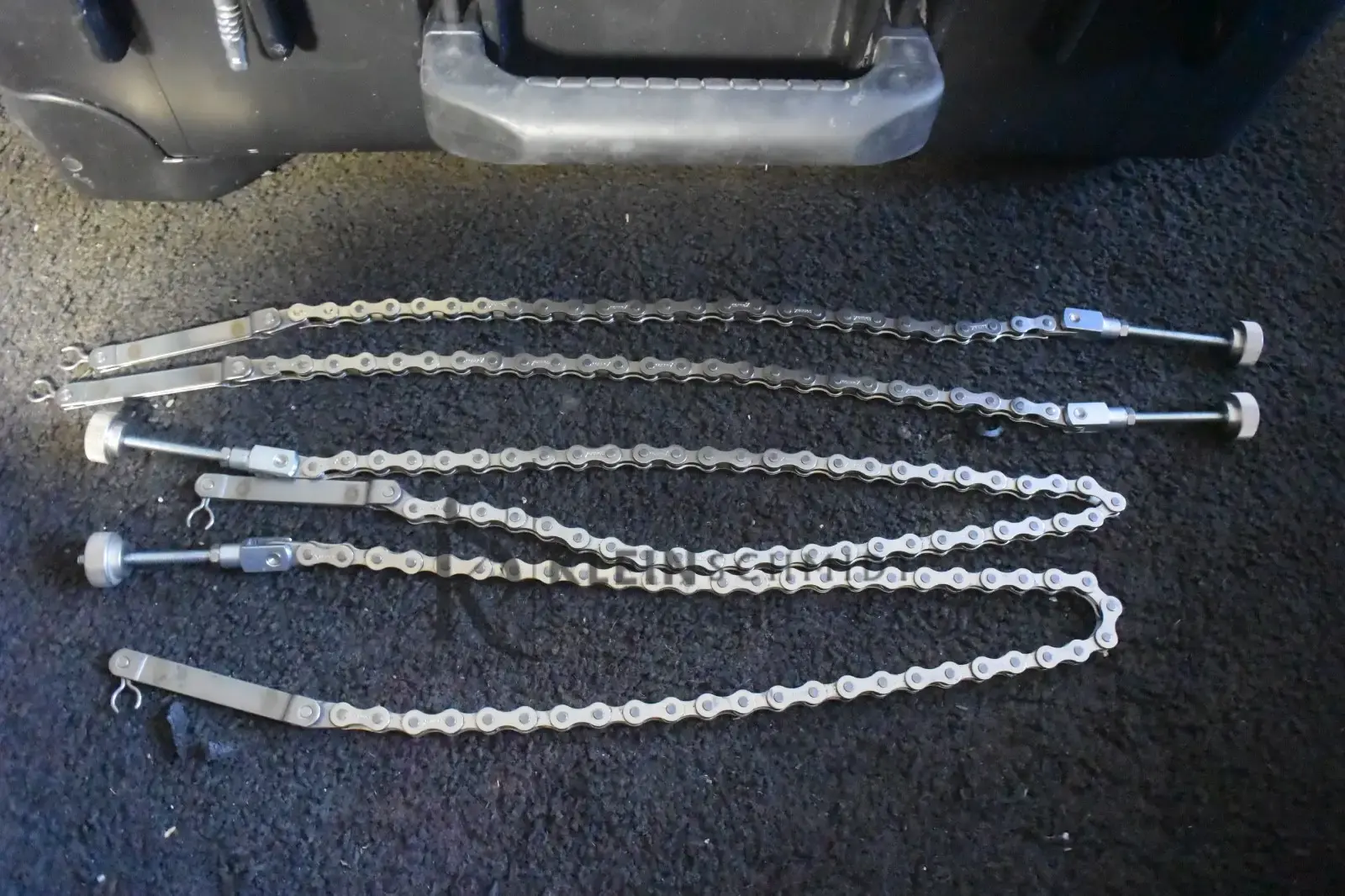

(3) Chains

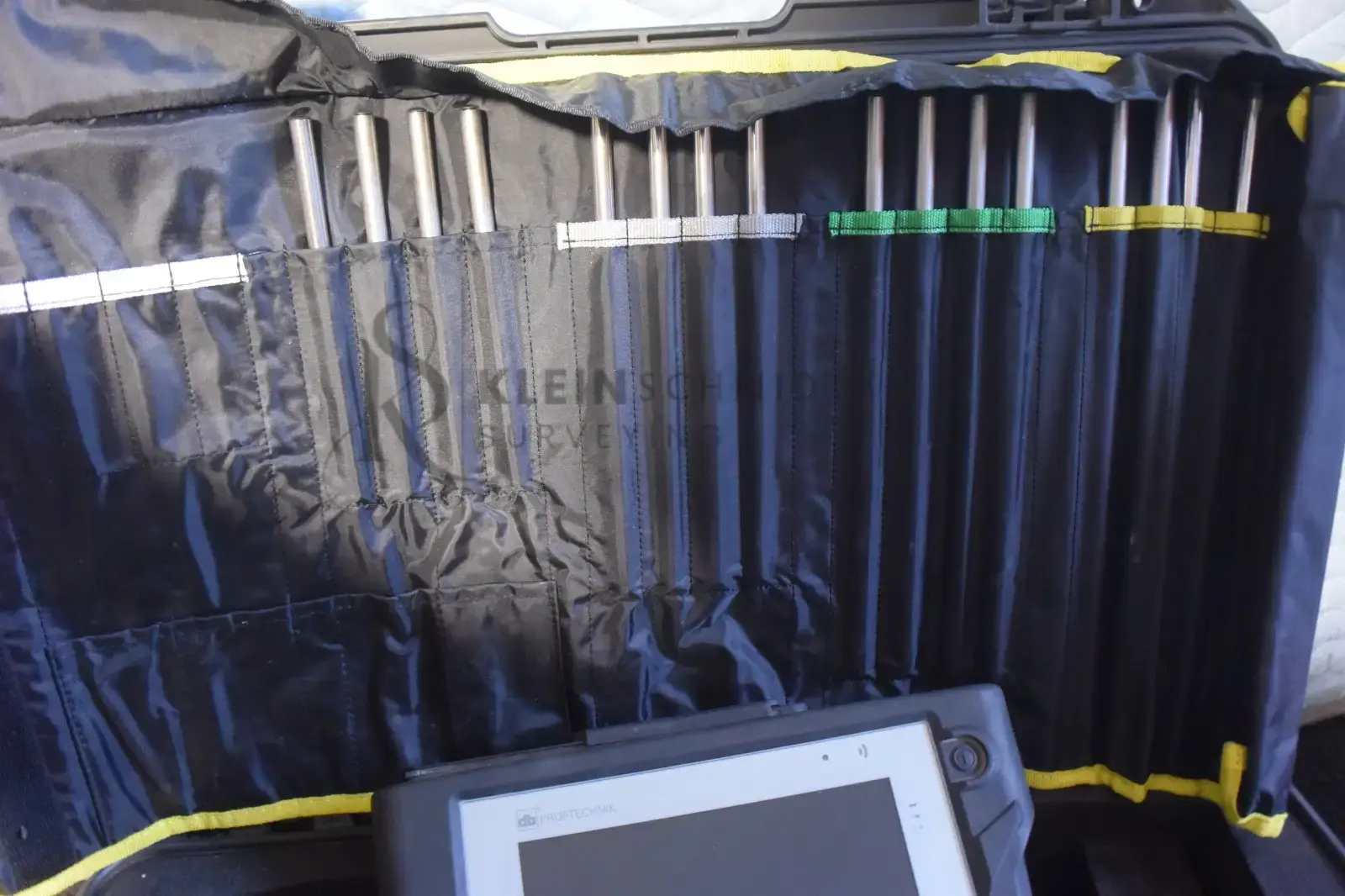

(20) Support Posts w/ Case

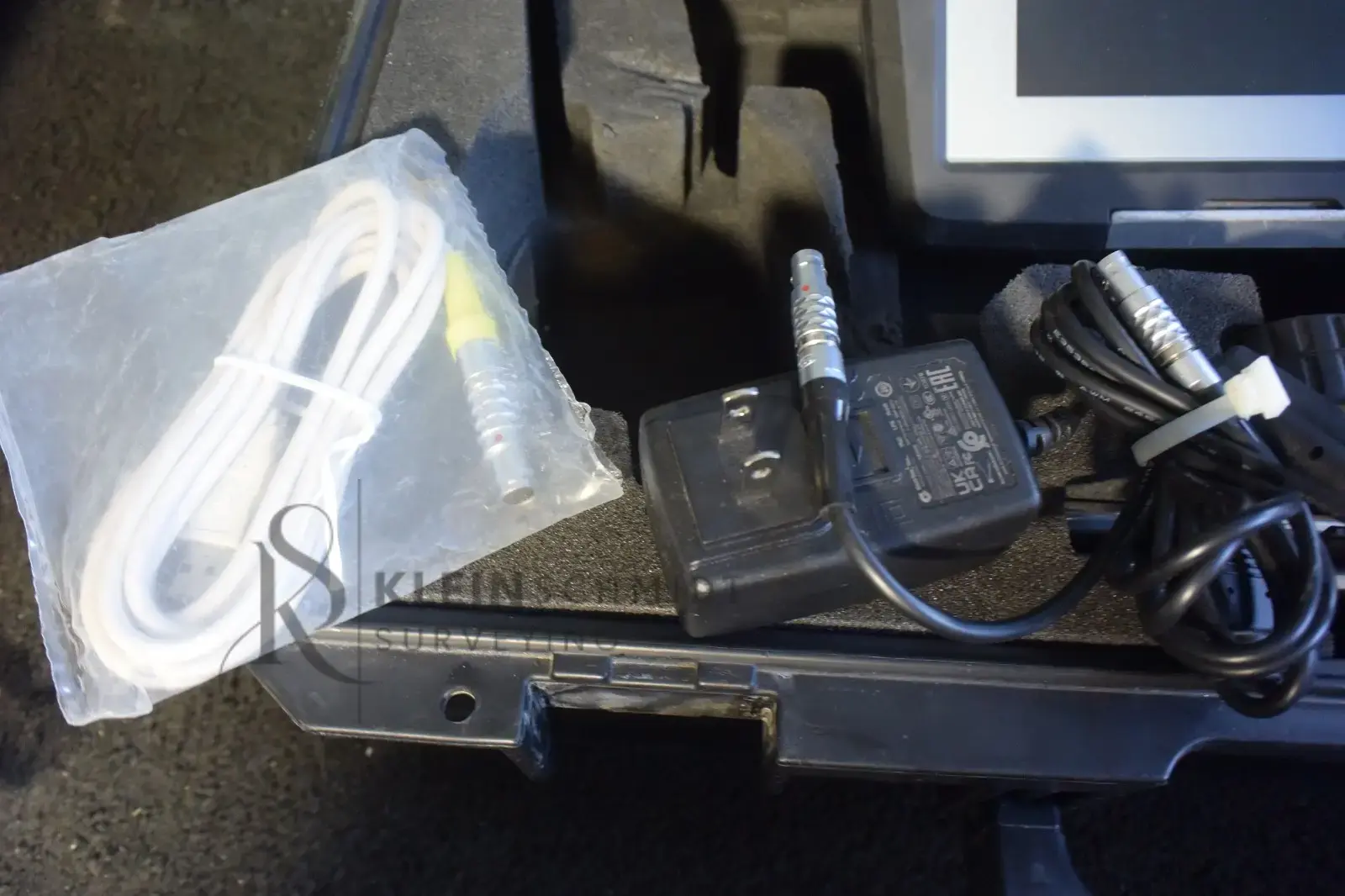

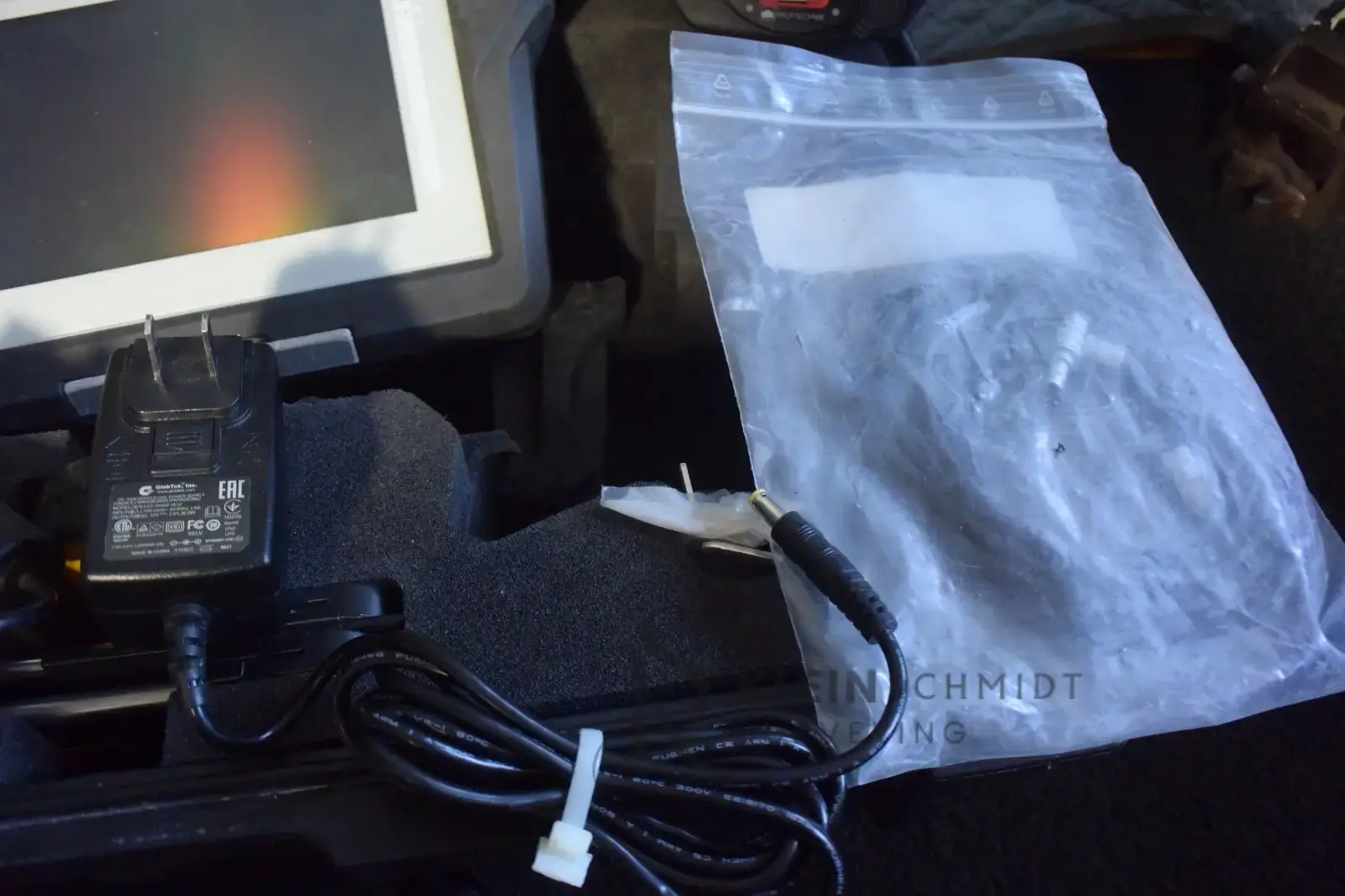

AC Adapter/Charger
Hard Carrying CaseOPTALIGN Touch integrates hardware, software, and WiFi connectivity for common chores and conventional machines
