説明
ザ NOGGIN 250 適応型地中レーダーシステム have been recognized by leading researchers as providing the highest quality GPR data in the world. They are also built to perform in the most demanding conditions around the globe.

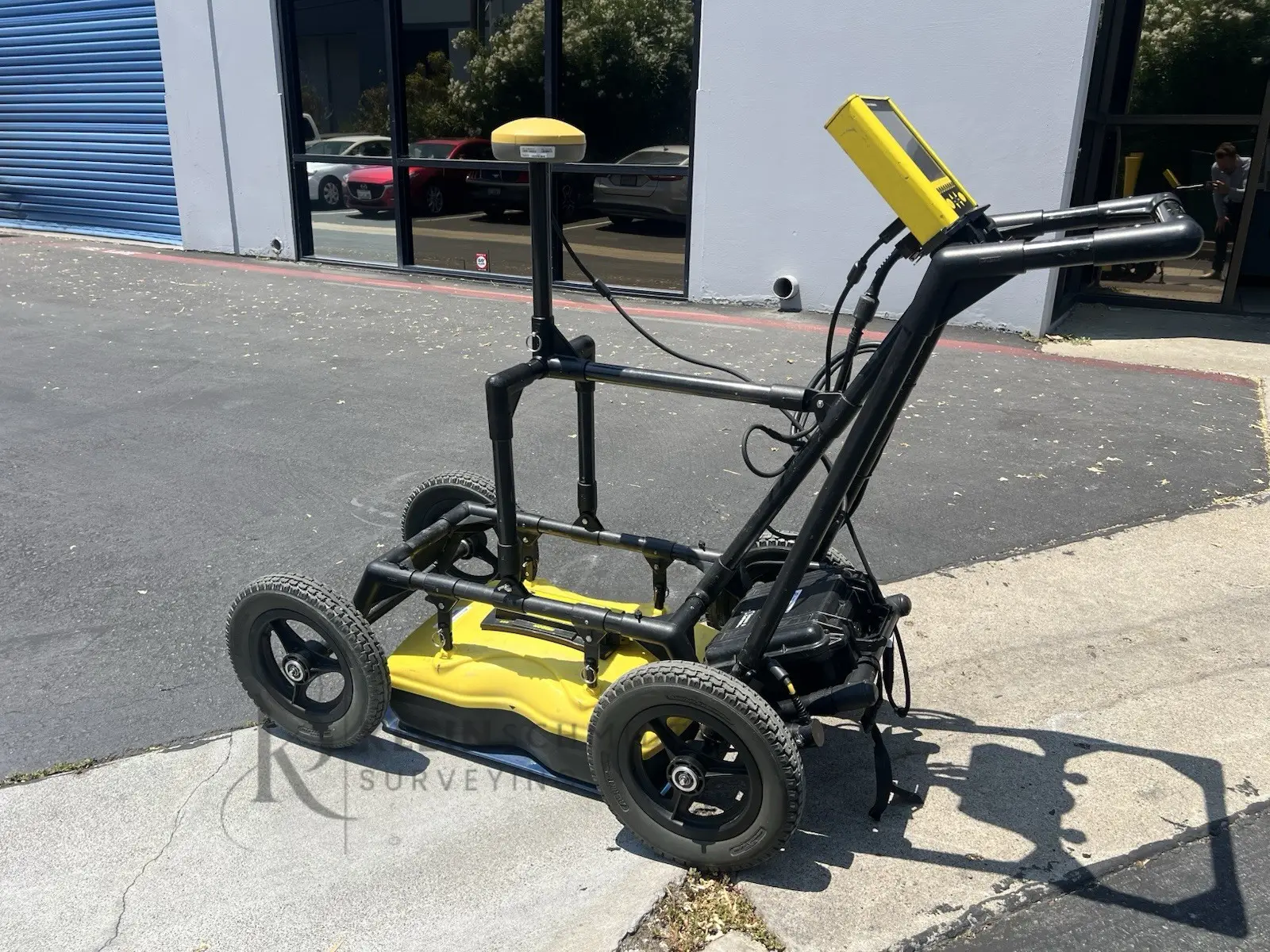

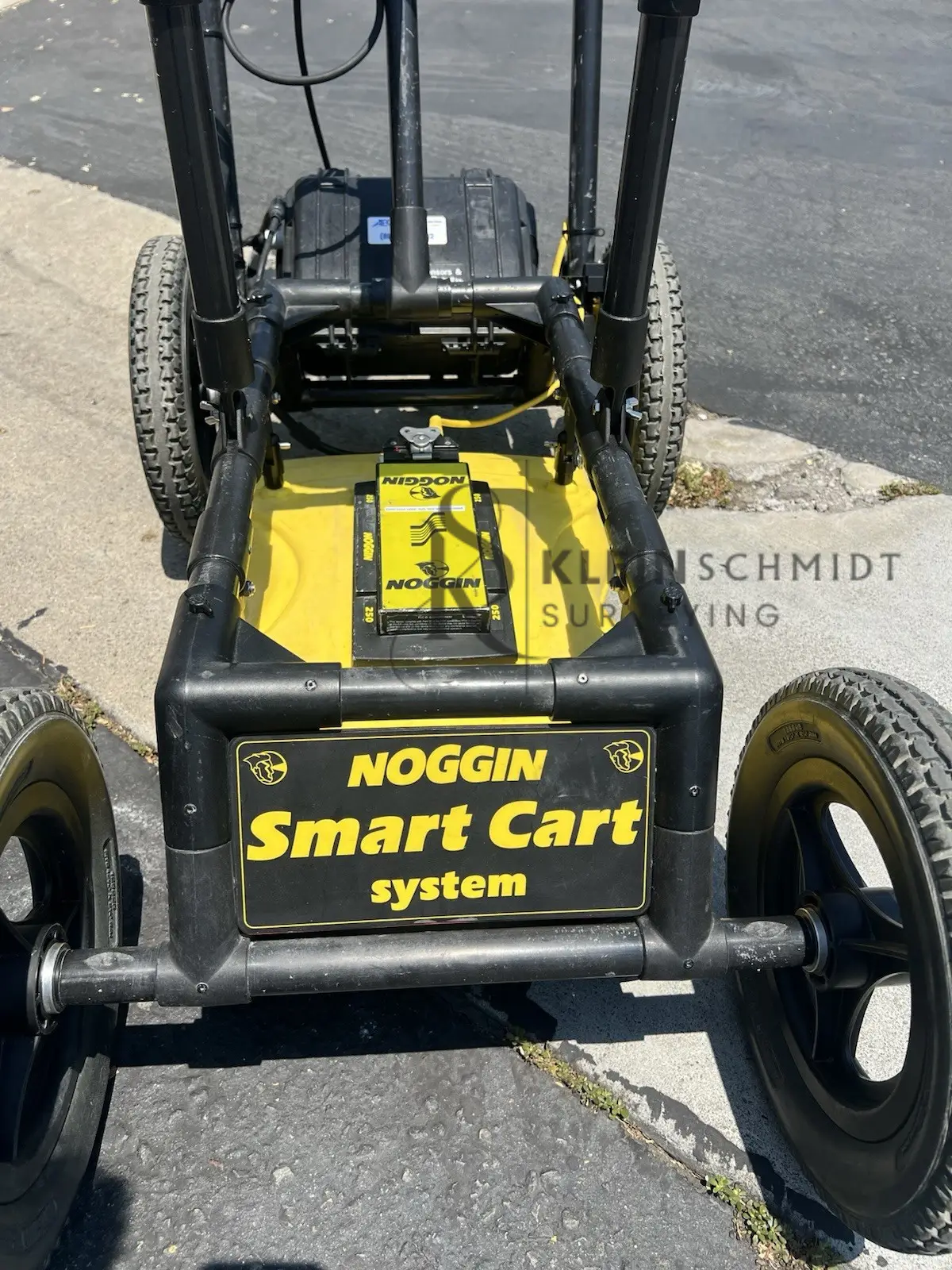

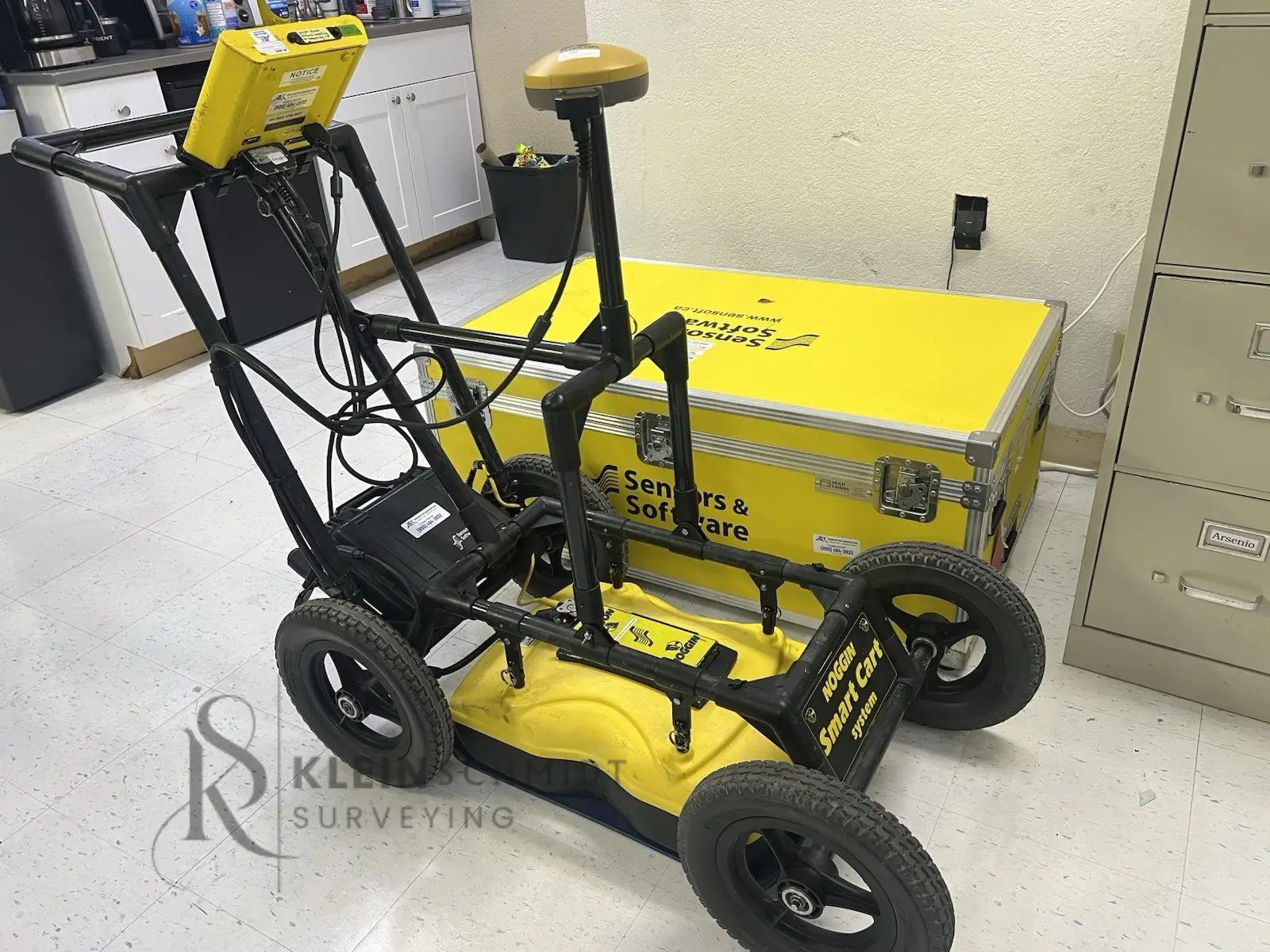

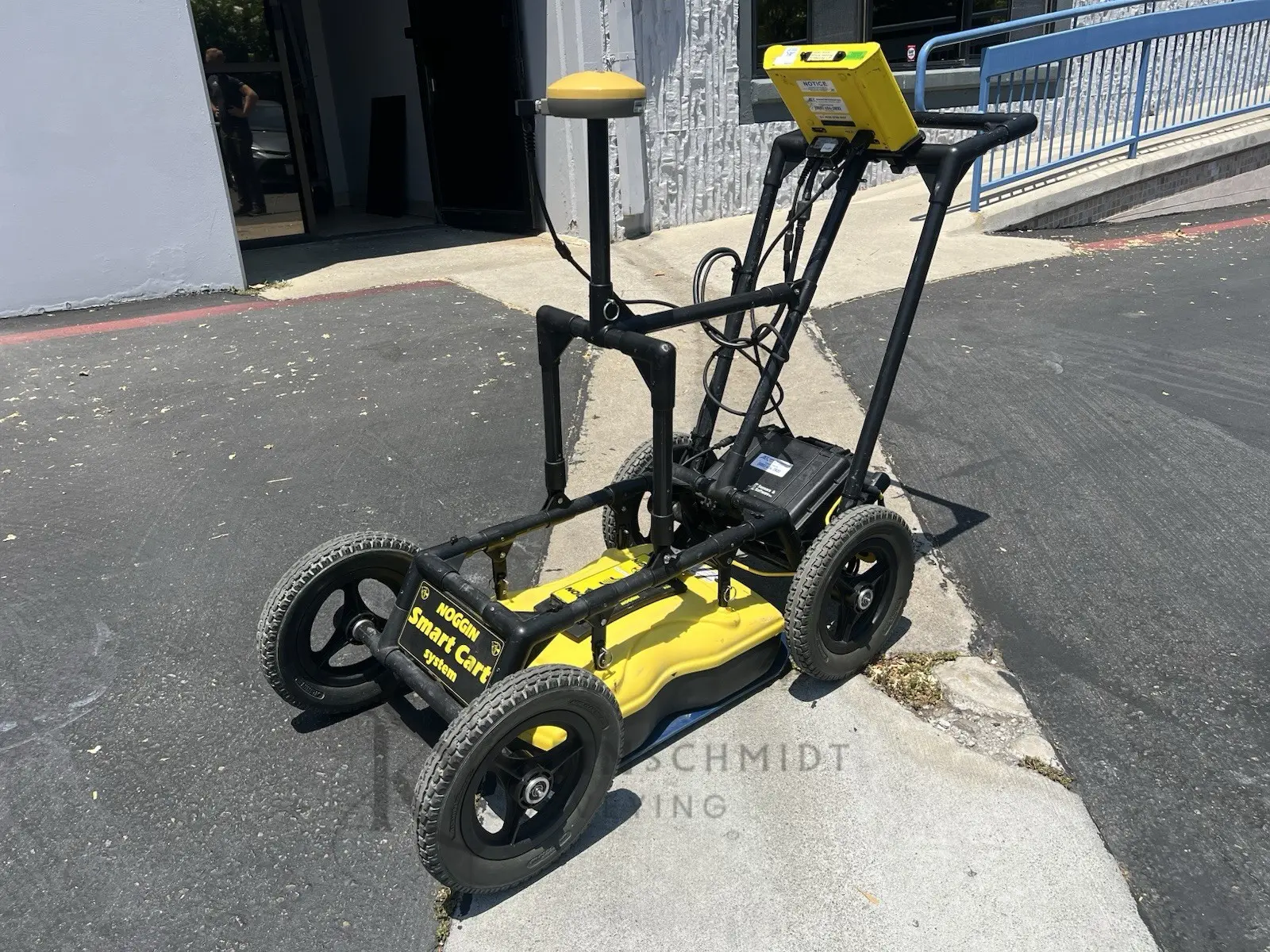

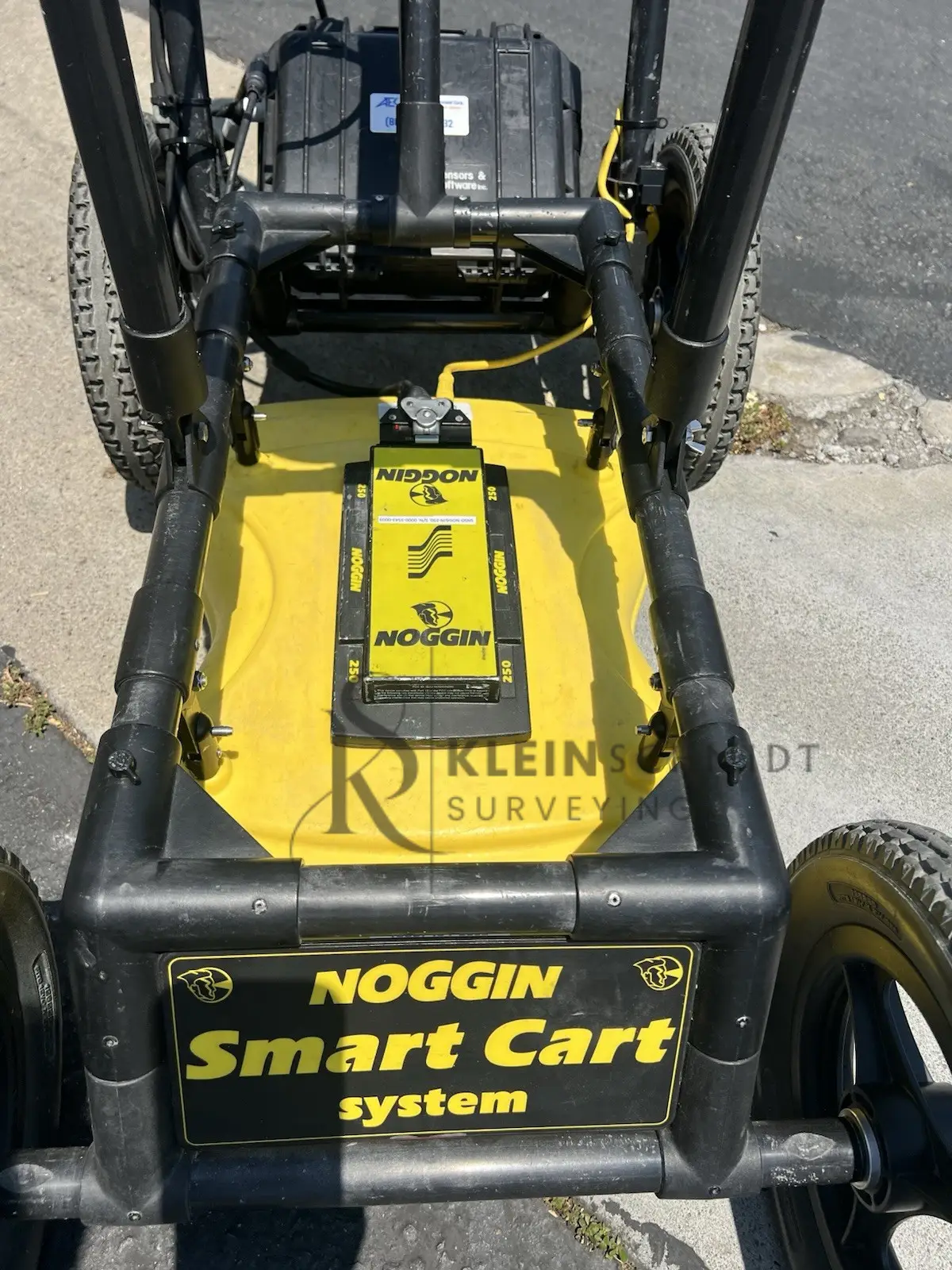

ザ Sensors & Software Noggin 250 SmartCart system is a versatile, high-performance GPR platform built around the proven Noggin 250 MHz transducer — one of the most widely used center frequencies for balanced depth penetration and resolution in subsurface mapping.
Patented ultra-wideband (UWB) ground-coupled antenna technology maximizes signal penetration and data quality, while the SmartCart mobile platform streamlines data collection with odometer-triggered acquisition and DynaQ® dynamic stacking to maintain consistent trace quality across survey lines. Optional GPS integration enables geo-referenced datasets ideal for mapping and integration with GIS or CAD workflows.
ノギン 250 最適
Geotechnical, environmental, utility, and infrastructure survey teams performing extensive area coverage and mapping where consistent data quality and field efficiency are paramount.
ノギン 250 主な特長
- Balanced 250 MHz center frequency for general subsurface mapping
- SmartCart platform with odometer-triggered acquisition and DynaQ® data optimization
- Patented UWB antenna for high data quality and penetration

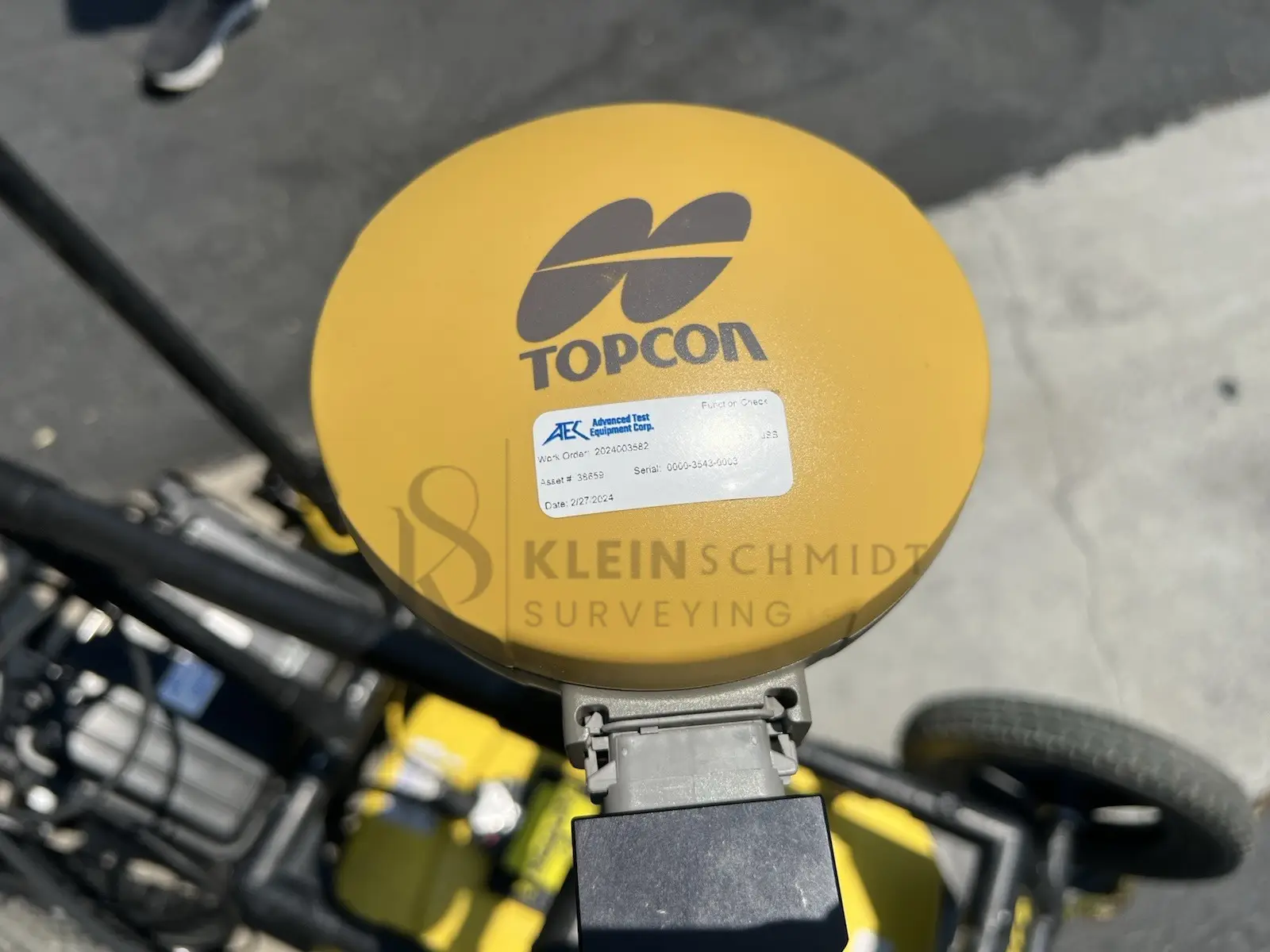

- Optional external GPS for geo-referenced surveying
- Flexible sensor swap options for match to terrain and target depth
ノギン 250 Configurations
– SmartCart
– SmartTow
– SmartChariot
ノギン 250 アプリケーション
– Subsurface utility mapping (SUM)
– Archaeology
– Forensics
Noggin 250 仕様
- Size: 63x41x23 cm (25x16x9 in)
- Weight: 7.3 kg (12.5 lbs)
- CenterFrequency – 3db Bandwidth: 250 MHz – 125-375 MHz
- Shielding Front to Back: > 20dB
- Max Time Window: 2000 ns @ ns/pt
- Max Depth Setting: 100m (328 ft)
ノギン 250 〜を含む
- (1) Noggin Plus 250 Ground Penetrating Radar
- (1) SmartCart

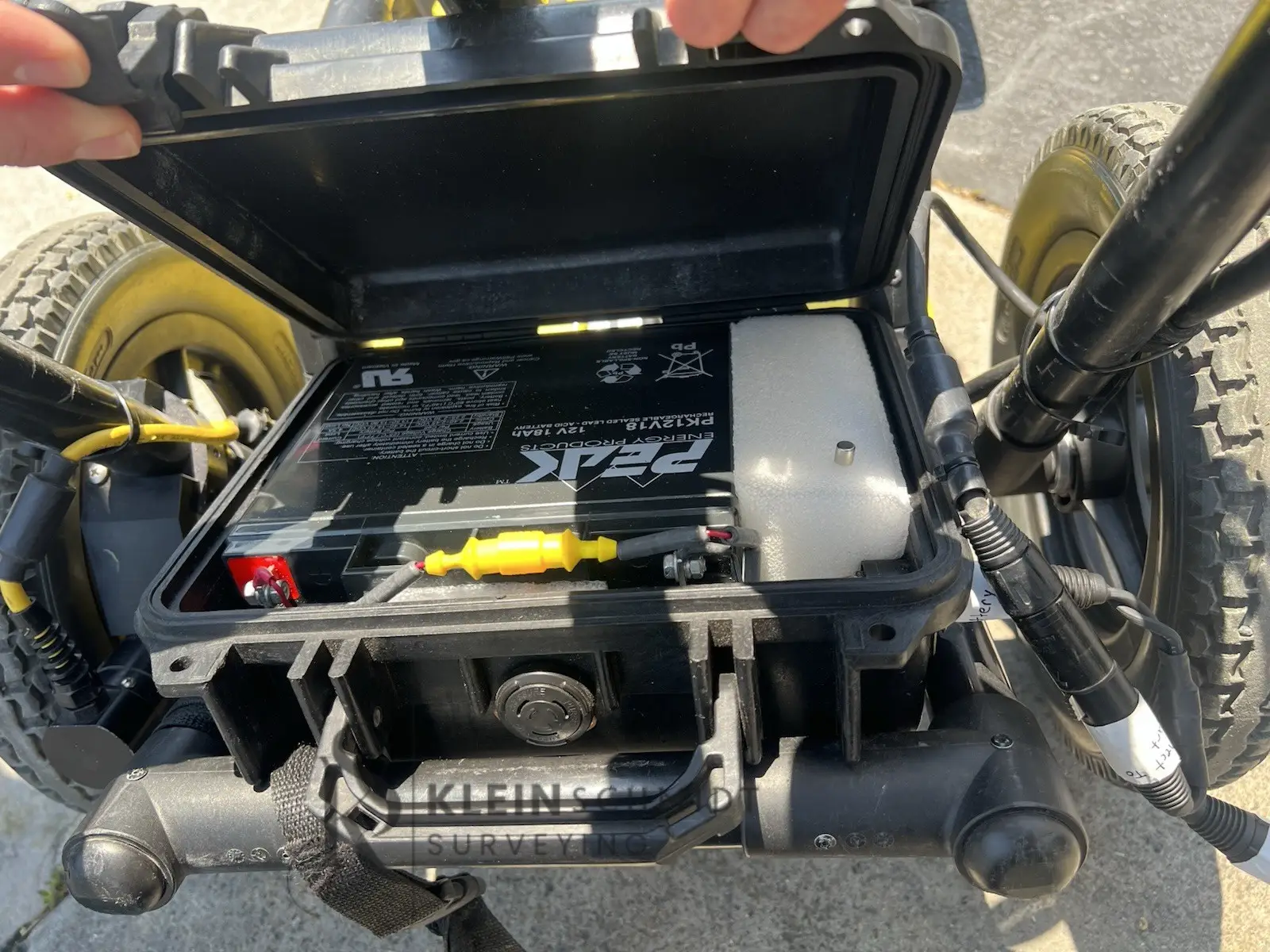

- (1) New Battery
- (1) Battery charging cable 110V
